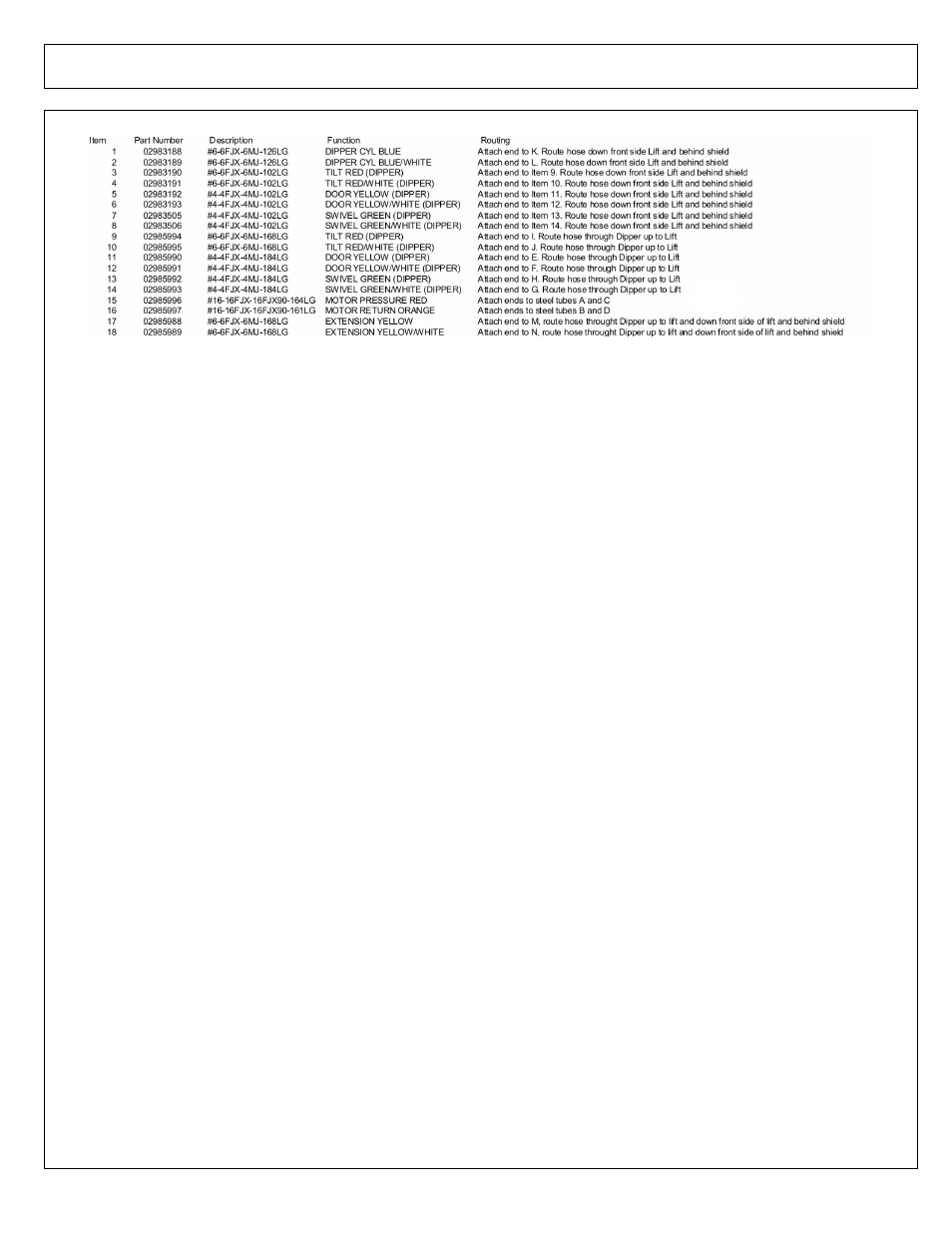

HOSE ROUTING - 28FT TELESCOPING BOOM (NOTES)

ITEM

PART NO. QTY.

DESCRIPTION

1

02983188

1

HOSE, DIPPER CYL (BLUE)

2

02983189

1

HOSE, DIPPER CYL (BLUE/WHITE)

3

02983190

1

HOSE, TILT (RED)

4

02983191

1

HOSE, TILT (RED/WHITE)

5

02983192

1

HOSE, DOOR (YELLOW)

6

02983193

1

HOSE, DOOR (YELLOW/WHITE)

7

02983505

1

HOSE, SWIVEL (GREEN)

8

02983506

1

HOSE, SWIVEL (GREEN/WHITE)

9

02985994

1

HOSE, TILT (RED)

10

02985995

1

HOSE, TILT (RED/WHITE)

11

02985990

1

HOSE, DOOR (YELLOW)

12

02985991

1

HOSE, DOOR (YELLOW/WHITE)

13

02985992

1

HOSE, SWIVEL (GREEN)

14

02985993

1

HOSE, SWIVEL (GREEN/WHITE)

15

02985996

1

HOSE, MOTOR PRESSURE (RED)

16

02985997

1

HOSE, MOTOR RETURN (ORANGE)

17

02985988

1

HOSE, EXTENSION (YELLOW)

18

02985989

1

HOSE, EXTENSION (YELLOW/WHITE)

02986125

1

CORDURA SLEEVING 3.25 ID 156" LG

02986126

1

CORDURA SLEEVING 2.54 ID 156" LG

02986127

1

CORDURA SLEEVING 1.81 ID 20" LG

02986128

1

CORDURA SLEEVING 1.81 ID 32" LG

000859

12

TIE, PLASTIC
