Hose routing - swing cyl (18-22 ft boom) – Alamo AXTREME2 02988075P User Manual
Page 120

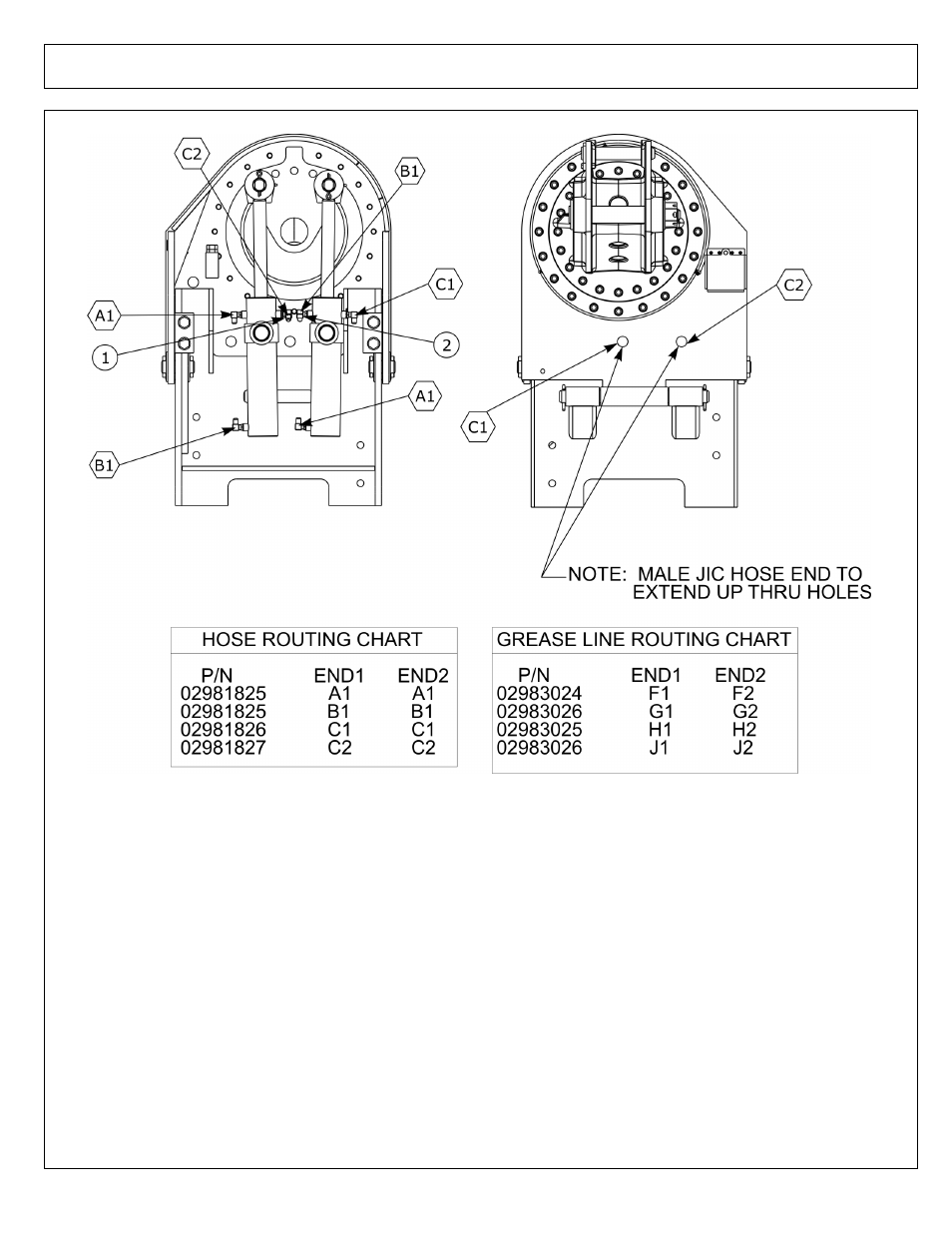

HOSE ROUTING - SWING CYL (18-22 FT BOOM)
ITEM
PART NO. QTY.
DESCRIPTION
A1
02981825
1
HOSE #6-6FJX-6FJX-28LG
B1
02981825
1
HOSE #6-6FJX-6FJX-28LG
C1
02981826
1
HOSE #6-6FJX-6MJ-22LG
C2
02981827
1
HOSE #6-6FJX-6MJ-16LG
F1
02983024
1
LINE,GREASE,MANIFOLD,SHORT
G1
02983026
1
LINE,GREASE,MANIFOLD,LONG
H1
02983025
1
LINE,GREASE,MANIFOLD,MED
J1
02983026
1
LINE,GREASE,MANIFOLD,LONG
©2012 Alamo Group Inc.
Parts Section -116
Axtreme2 Boom (09-09) Rev 02-12
