CP-150 User Manual --- Page 27
CN2
CN12
CN7
CN13
CN9
CN11
CN10
ATX1
JP1
JP2
JP3
JP4
JP5
JP6 JP9 JP10

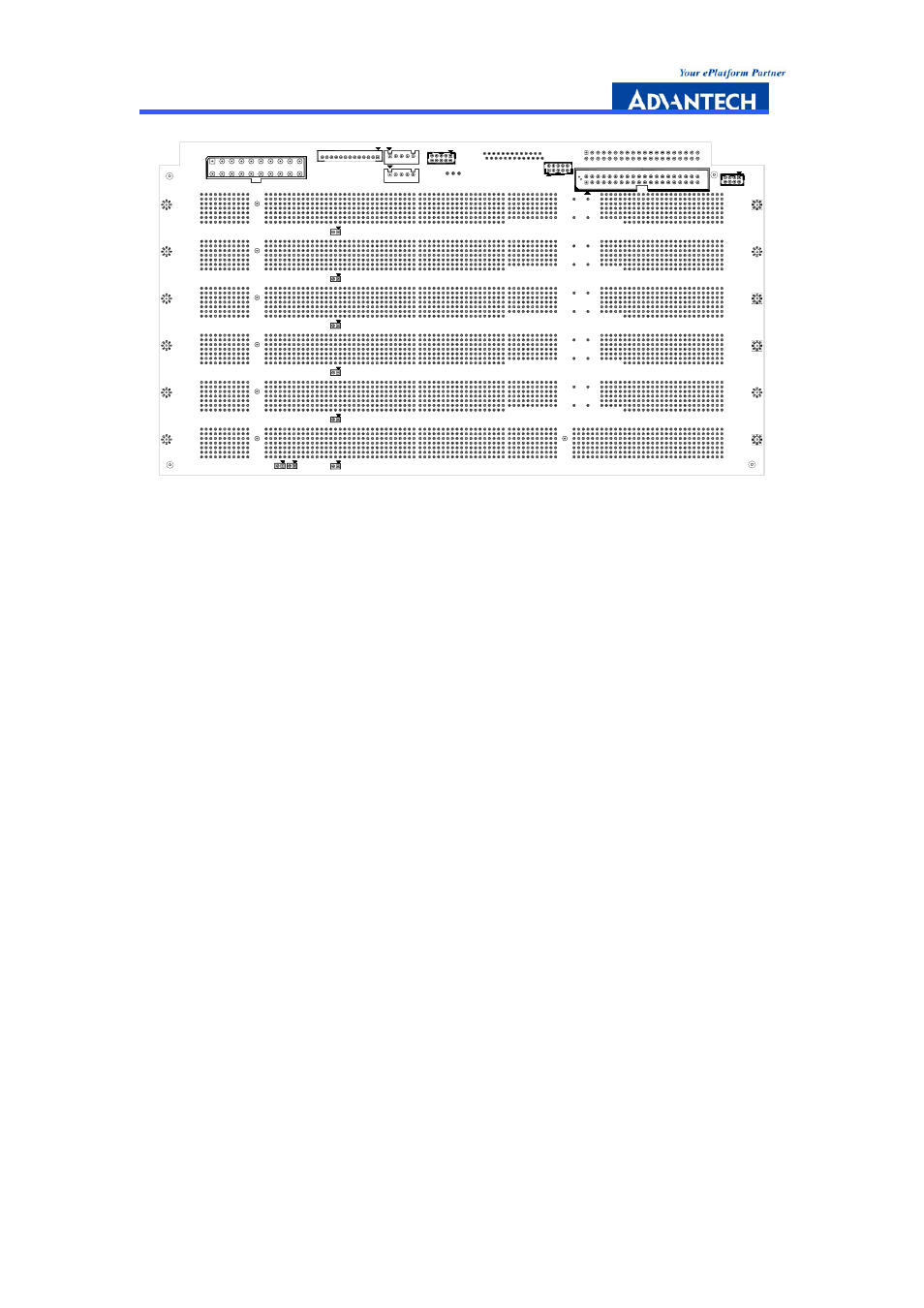

Figure 3-2: The connector and jumper locations on the rear side. (MIC-3800)
3.5.1 ATX Power Connector (ATX1)
This connector accepts one standard ATX power supply.
Note: Do not use the ATX power supply and the plug-in power module at
the same time.
3.5.2 Power Switch
This connector provides power control of the ATX power supply or the plug-in power
module. If the CompactPCI™
chassis provides a 2-pin power switch cord, connect
this cord to the JP1 connector to turn the power on or off by the power switch. Or,
you can directly bypass this connector by using a jumper and 2-pin connector to
control the power through the ATX power supply cord.
3.5.3 Fan Module Connector
The FAN connectors provide +12 V power for fan operation and relay the
tachometer output from the fans.
