2.4.3 Installing a 3.5” Hard Disk Drive
Follow this procedure to install 3.5" hard disk drives in the CP-150:
1. Loosen the screws and remove the mobile rack.
2. Mount the HDD on the mobile rack, and fasten with screws.
3. Slide the HDD with mobile rack back into the tray and screw them.
4. Power on and check the HDD can be found when the SCSI is initialized.
2.4.4 Remove the Slot Unit
Open back cover
Unscrew the screws on the back cover. The screws are well-designed so they can’t
easily be removed from the back cover.
Prepare to remove the slot unit
PXI slot
unit
Power
supply

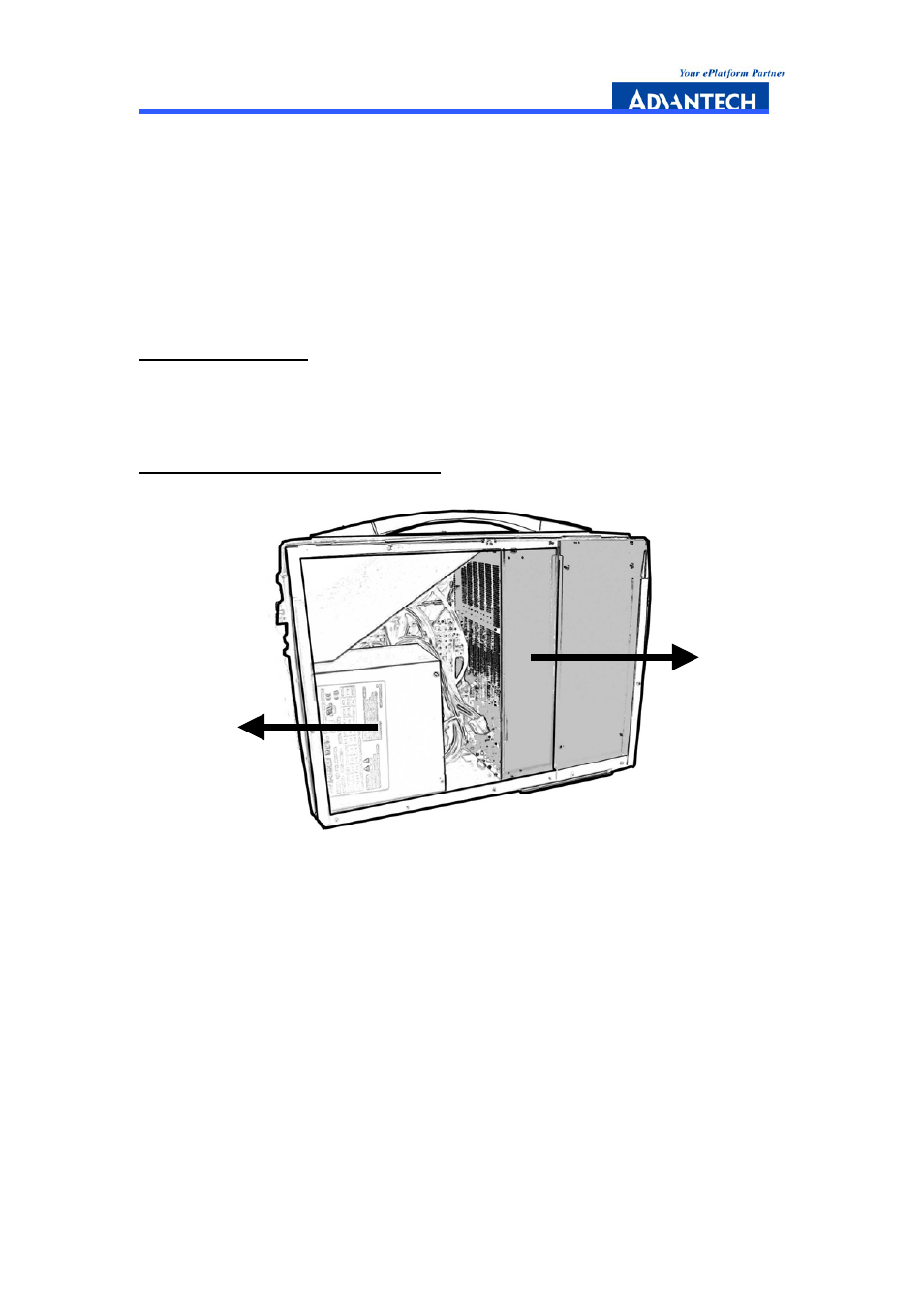

Figure 2-11
