CP-150 User Manual --- Page 10

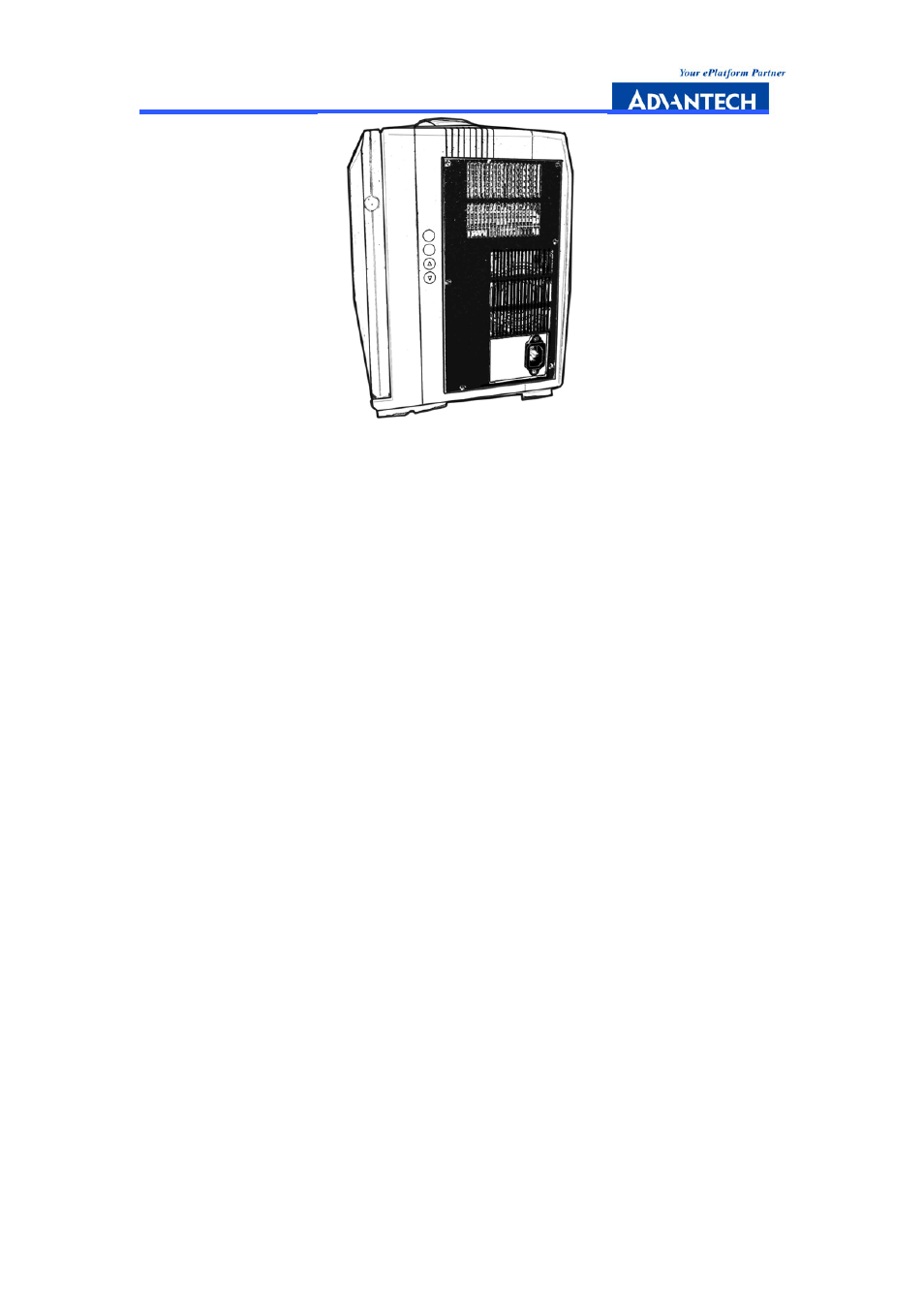

Figure 2-6
2.3.4 Power Supply
The CP-150 comes with a PS/2 power supply with full-range auto-sensing
Active PFC, and 400W output.
2.3.5 Hooking up external monitor
The external CRT monitor / Projector can be hooked up via the side panel
VGA (15pin) port while the system is off. The cable from the CRT/Projector
should be inserted into this port. If this cable is connected, the display
should come on whenever the machine is turned on. The internal display
monitor uses a standard viewing resolution. The default setting results in an
image display on both the portable’s LCD and CRT. To change the output
mode (from simultaneous LCD/CRT), please refer to your VGA setting.
