CP-150 User Manual --- Page 26
CN8
CN6
CN1
1
2
S
ys
te
m
s
lo
t
ID
=
A
D
3
1
3
4
5
6
ID
=
A
D
30
ID
=
A
D
2
9
ID
=
A
D
28
ID
=
A
D
27

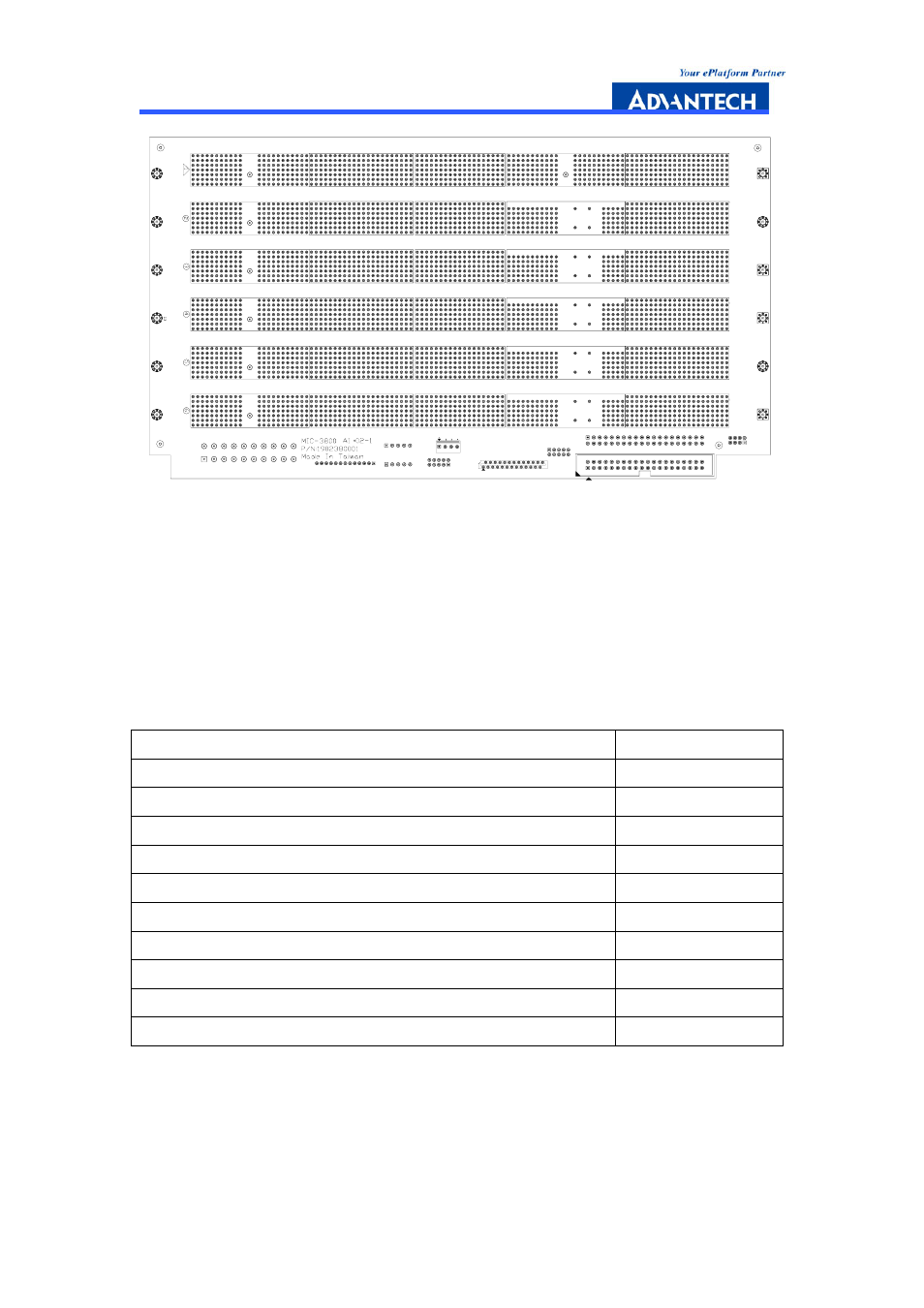

Figure 3-1: MIC-3800 Backplane slot numbering
3.5 Connector and Jumper Locations
The backplane provides connectors and jumpers for users to configure for specific
application. Table 3-2 gives a brief description of each connector on the backplane,
and Figure 3-3 illustrates the connector locations on the backplane.
Table 3-2: Backplane connector and jumper description
Function MIC-3800
ATX power connector 1
ATX1
FDD Interface connector
CN6
USB Interface connector
CN7
IDE Interface connector
CN8,CN12
MOUSE Interface connector
CN9
VGA Interface connector
CN10
KEYBOARD Interface connector
CN11
COM2 Interface connector
CN13
64-/32-bit selection jumper (Default : Short, 64-bit)
JP1 ~ JP6
66/33 MHz selection jumper (Default : Short, 33 MHz)
JP9 ~ JP10
