MAKING CONNECTIONS MAKING CONNECTIONS

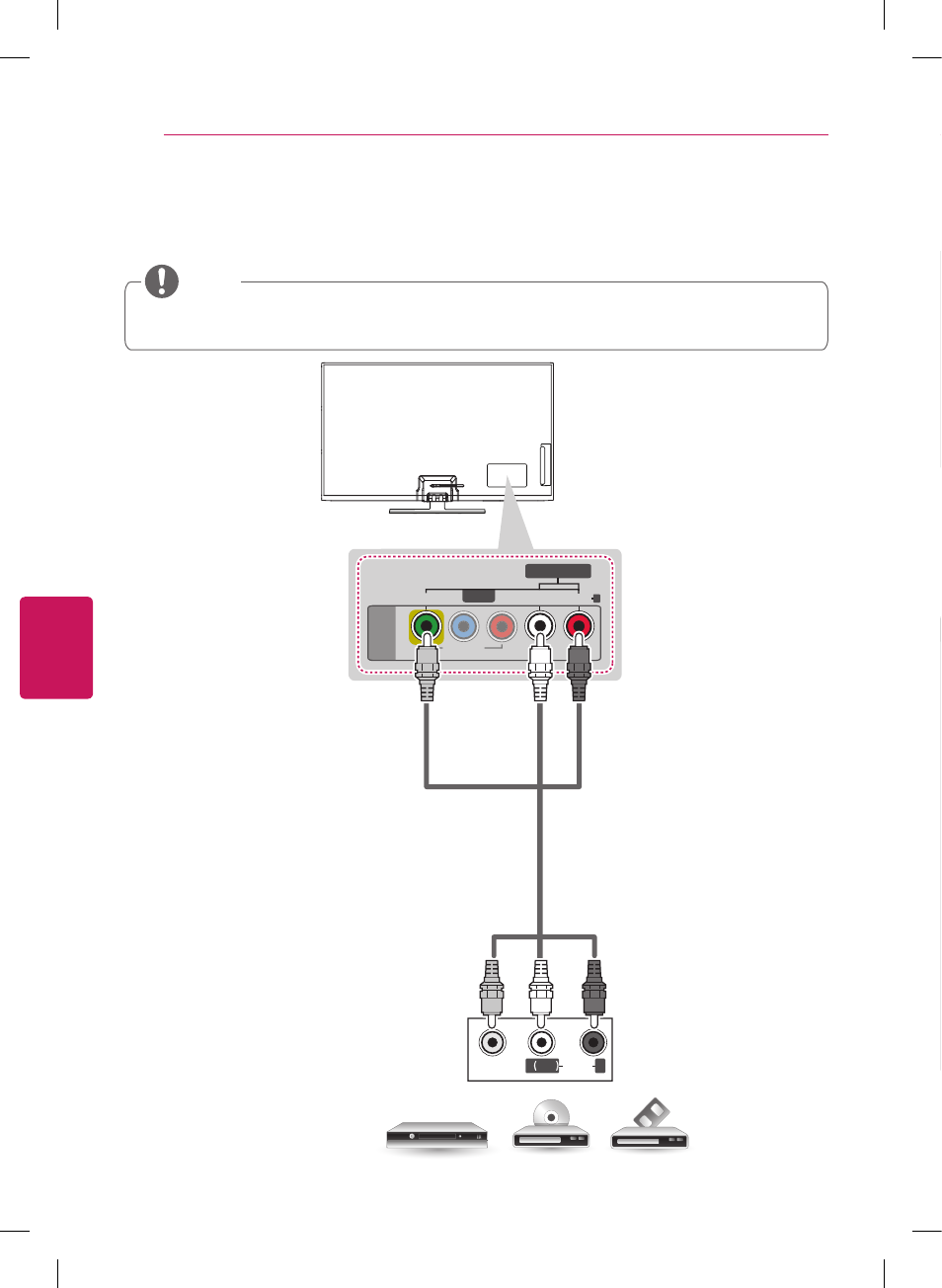

Composite Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown in the following illustration.
y y If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of
the TV.
NOTE
Connecting to a PC
HDMI Connection or DVI to HDMI Connection
Choose method A or B to make connection.
Method A: HdMI Connection
CO
MP
ON
EN
T
IN
VIDEO AUDIO
L P B P R R Y
VIDEO AUDIO R L/MONO AV IN
AUDIO IN (PC)
VIDEO MONO ( ) AUDIO L R
VCR / DVD / Blu-Ray / HD Cable Box
YELL
O
W
YELL
O
W
RED
RED
WHITE
WHITE
(*No
t P
ro
vided)
