Connecting to a HD Receiver, DVD Player or VCR
Connect a HD receiver, DVD Player or VCR to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown in the following illustration.
ARC (Audio Return Channel)
y
y
When connected with a high-speed HDMI cable,
digital audio can be sent to a compactible device
without an additional optical audio cable.
y
y
ARC is only supported on the HDMI IN (ARC) 1 port.
An external audio device that supports ARC should
be connected to HDMI 1 if you wish to use ARC
DVI to HDMI Connection

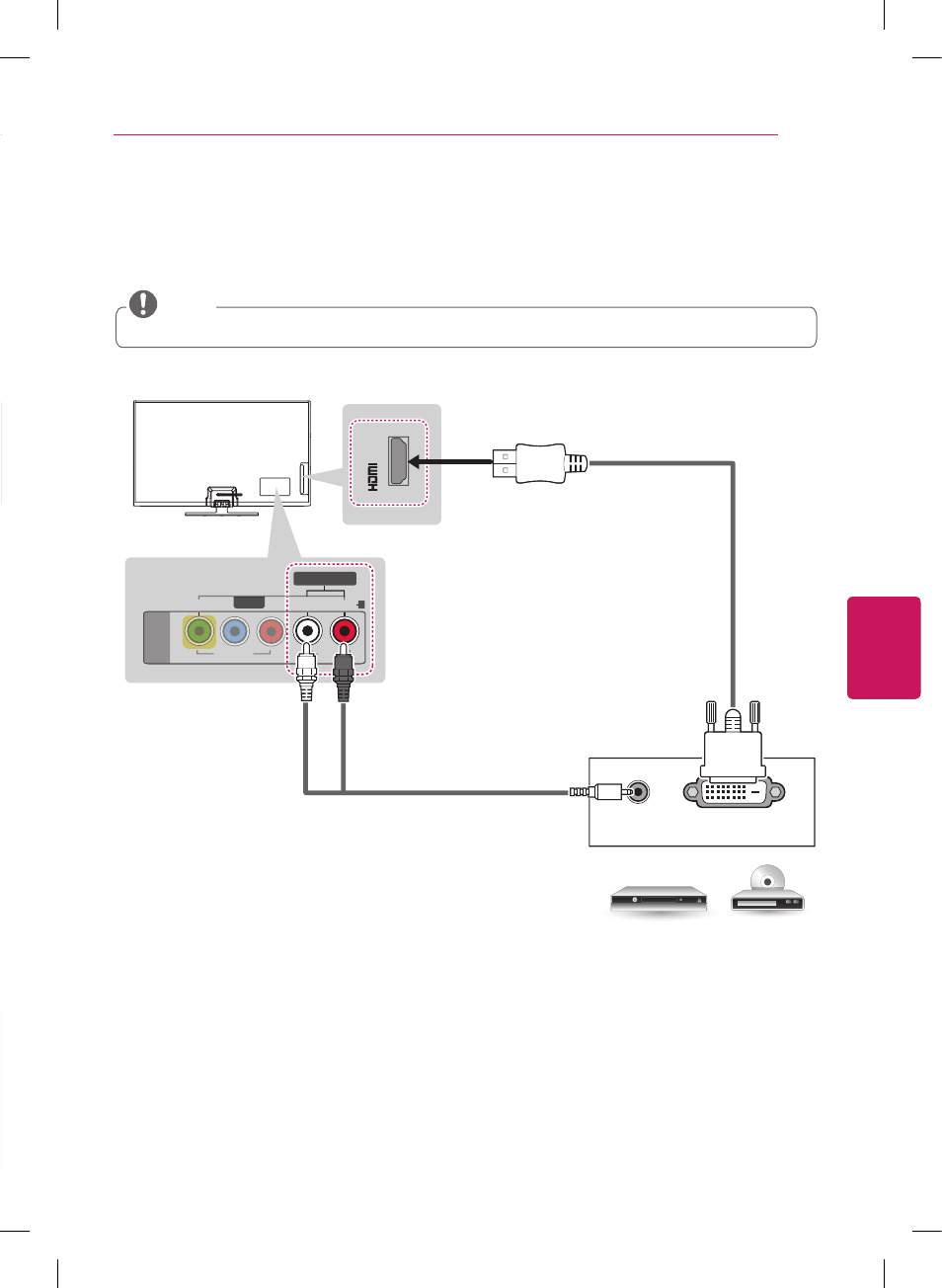

Transmits the digital video signal from an external device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal,
connect an audio cable.
y
y
When using the HDMI/DVI cable, Single link is only supported.
NOTE
CO
MP
ON
EN
T
IN
L
P
B
P
R
R
Y
VIDEO
AUDIO
R
L/MONO
AV IN
AUDIO IN (PC)
$8',2287
'9,287
VIDEO
AUDIO
IN 2 (PC)
WHITE
RED
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
