41
EXTERNAL E
QUIPMENT SETUP

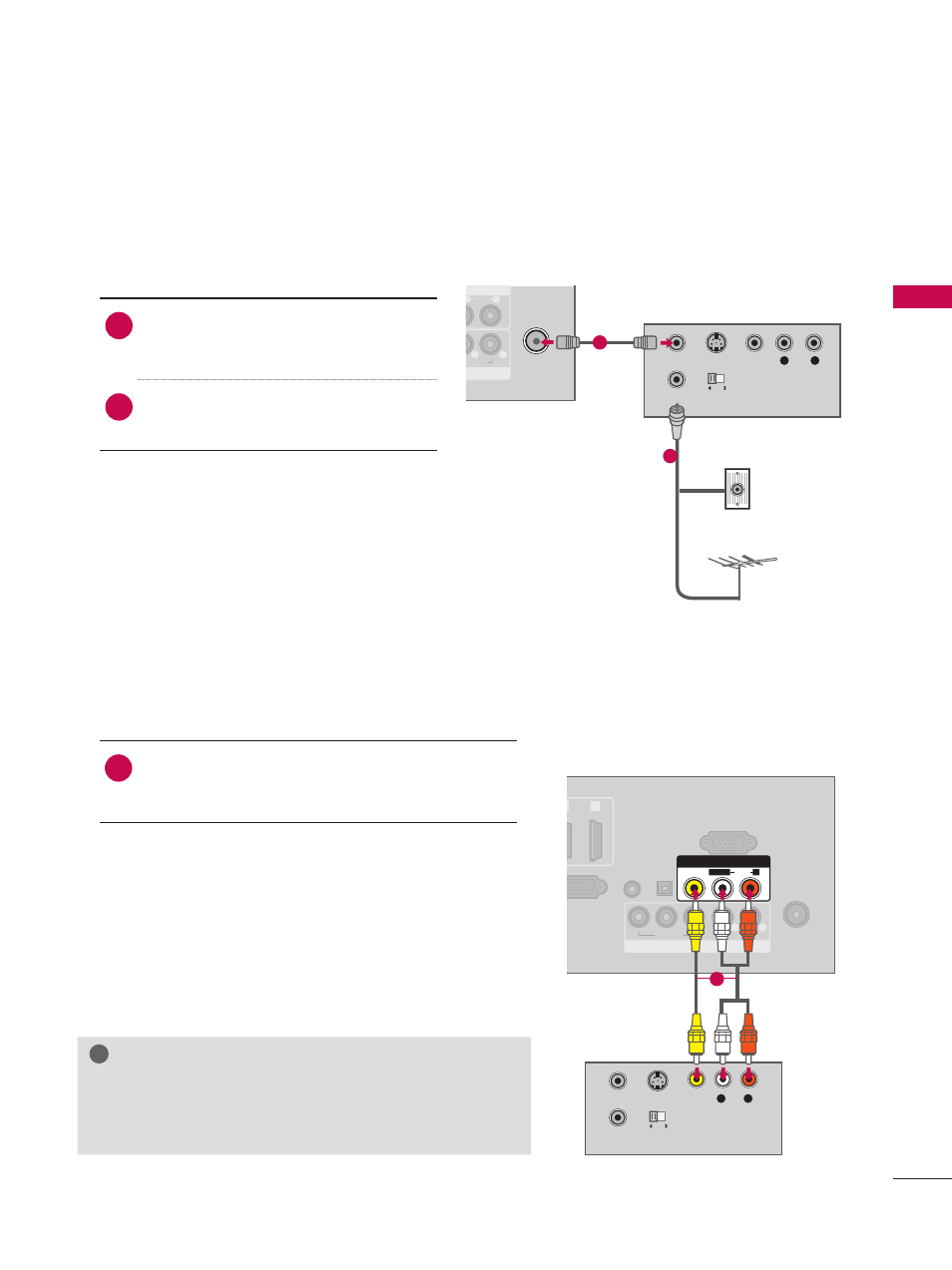

VCR SETUP
Antenna Connection
N
N
AUDIO O) R
AUDIO
L R ANTENNA/
CABLE IN
L R S-VIDEO VIDEO
AUDIO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna
1. How to connect
1
Connect the RF antenna out socket
of the VCR to the ANTENNA/CABLE
IN socket on the TV.
2 Connect the antenna cable to the RF
antenna in socket of the VCR.
2. How to use
ᯫ Set VCR output switch to 3 or 4 and
then tune TV to the same channel num-
ber.
ᯫ Insert a video tape into the VCR and
press PLAY on the VCR (Refer to the
VCR owner’s manual).
1
2
Composite (RCA) Connection
ANTENNA/
CABLE IN
B IN (PC)
AUDIO IN
RGB/DVI
VI)
OPTICAL
DIGITAL
AUDIO OUT
COMPONENT IN
RS-232C IN
(CONTROL&SERVICE)
2
VIDEO AUDIO
Y P B P R L R
AV IN
VIDEO AUDIO L(MONO) R
S-VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
L R VIDEO
AUDIO
1. How to connect
1
Connect the AUDIO/VIDEO jacks between TV
and VCR. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
2. How to use
ᯫ Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
ᯫ Select the AV or AV1/2 * input source on the TV
using the INPUT button on the remote control.
! NOTE
Ź
If you have a mono VCR, connect the audio cable
from the VCR to the AUDIO L(MONO) jack of the TV.
1
* AV2: Except 19/22/26LE5300, 22/26LE5500
