EXTERNAL EQUIPMENT SETUP
EXTERNAL E
QUIPMENT SETUP
40

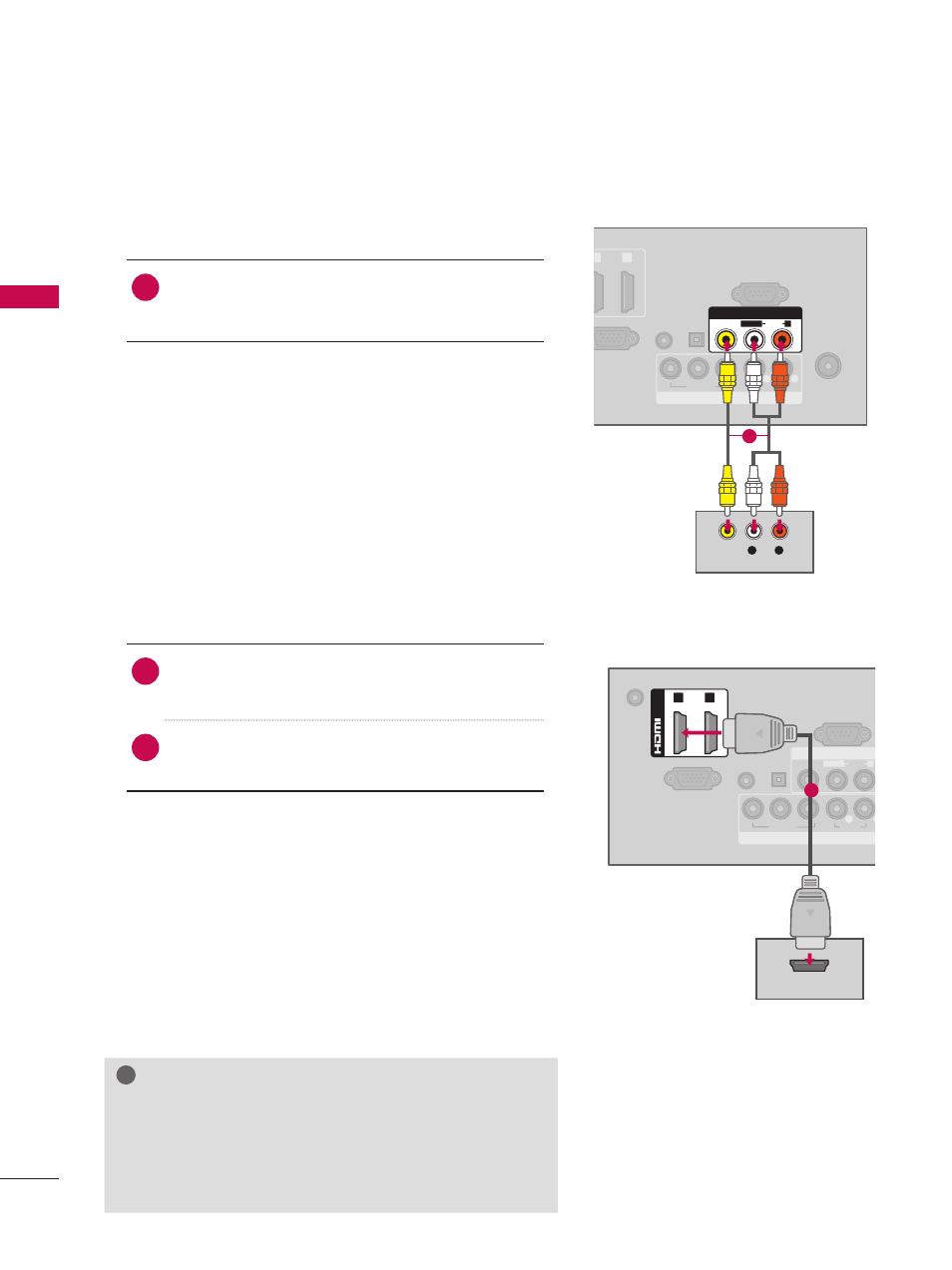

Composite (RCA) Connection
1. How to connect
1
Connect the AUDIO/VIDEO jacks between TV
and DVD. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
2. How to use
ᯫ Turn on the DVD player, insert a DVD.
ᯫ Select the AV or AV1/2 * input source on the TV
using the INPUT button on the remote control.
ᯫ Refer to the DVD player's manual for operating
instructions.
ANTENNA/
CABLE IN
GB IN (PC)
AUDIO IN
RGB/DVI
DVI)
OPTICAL
DIGITAL
AUDIO OUT
COMPONENT IN
RS-232C IN
(CONTROL&SERVICE)
1 2
VIDEO AUDIO
Y P B P R L R
AV IN
VIDEO AUDIO L(MONO) R
L R VIDEO
AUDIO
DC-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
DIGITAL
AUDIO OUT
COMPONENT IN
AV IN
RS-232C IN
(CONTROL&SERVICE)
VIDEO AUDIO L(MONO) R
VIDEO AUDIO
Y P B P R L R
(DVI)
/DVI IN
1 2
HDMI OUTPUT
1
1
HDMI Connection
1. How to connect
1 Connect the HDMI output of the DVD to the
HDMI/DVI IN 1, 2, 3*, or 4** jack on the TV.
2 No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
ᯫ Select the HDMI1 , HDMI2 , HDMI3 *, or HDMI4 ** input
source on the TV using the INPUT button on the
remote control.
ᯫ Refer to the DVD player's manual for operating
instructions.
! NOTE
Ź
If an HDMI cable doesn’t support High Speed HDMI,
it can cause flickers or no screen display. In this case
use the latest cables that support High Speed HDMI.
Ź HDMI Audio Supported Format: Dolby Digital (32 kHz, 44.1
kHz, 48 kHz), Linear PCM (32 kHz, 44.1 kHz, 48 kHz)
* AV2: Except 19/22/26LE5300, 22/26LE5500
* HDMI3: For 26LE5300, 26LE5500, 32/42/47/55LD520,
55LD520C, 42/47/55LD630
** HDMI4: For 32/37/42/47/55LE5300, 42/47/55LE7300,
42/47/55LE530C
