DVI to HDMI Connection
1. How to connect

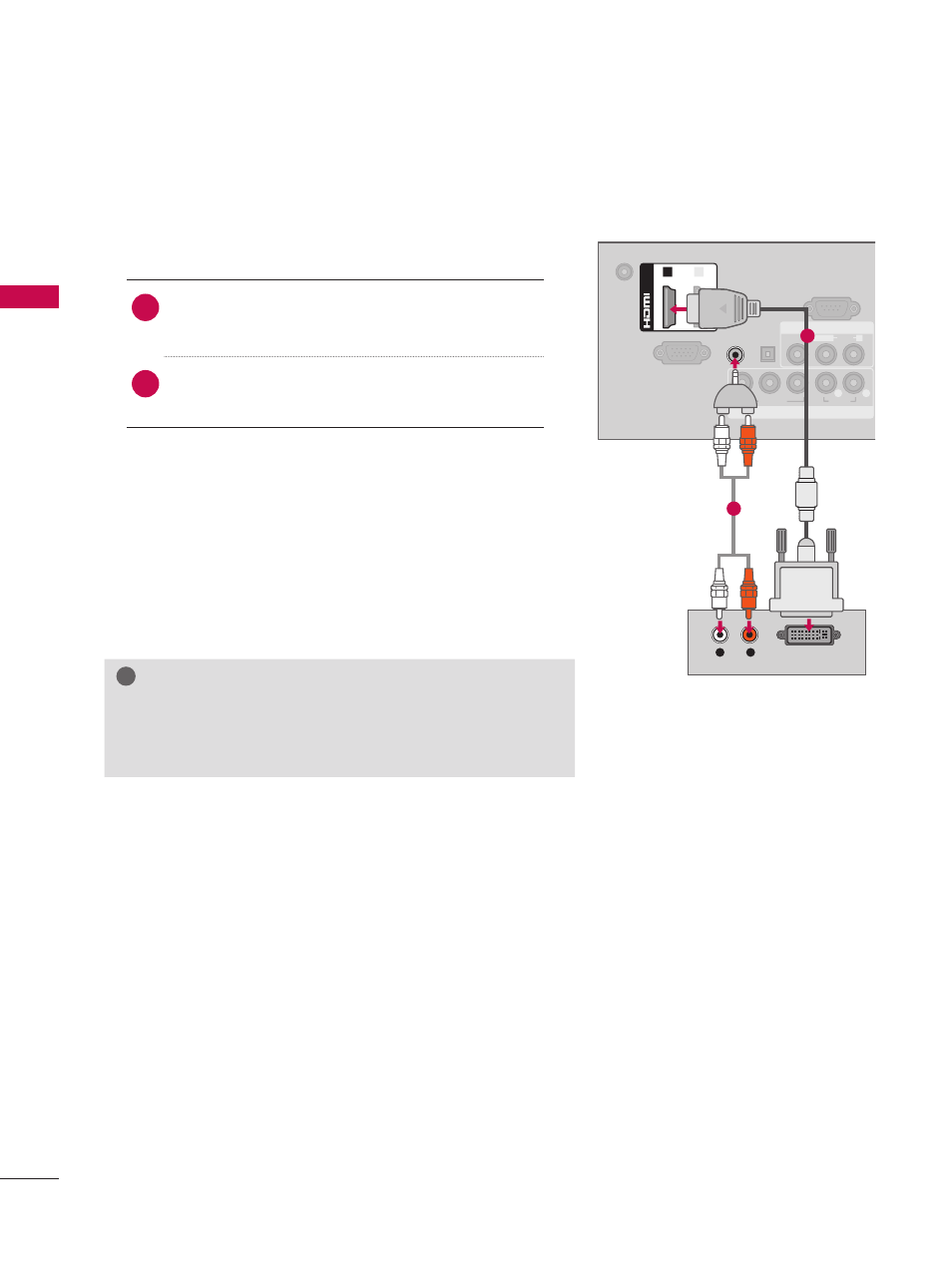

1 Connect the DVI output of the digital set-top
box to the HDMI/DVI IN 1 or 2* jack on the TV.
2 Connect the digital set-top box audio output to
the AUDIO IN (RGB/DVI) jack on the TV.
2. How to use
ᯫ Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-
top box.)
ᯫ Select the HDMI1 or HDMI2 * input source on the
TV using the INPUT button on the remote control.
! NOTE
Ź A DVI to HDMI cable or adapter is required for this con-
nection. DVI doesn't support audio, so a separate audio
connection is necessary.
DC-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
DIGITAL
AUDIO OUT
COMPONENT IN
AV IN
RS-232C IN
(CONTROL&SERVICE)
VIDEO AUDIO L(MONO) R
VIDEO AUDIO
Y P B P R L R
(DVI)
/DVI IN
1 2
L R DVI OUTPUT
AUDIO
1
2
* HDMI2: For 32/42/47/55LD520, 55LD520C, 42/47/55LD630
