MULTI-TASKER™

400-0082-005

5

5

Use the MT104-100/103 card for RGBHV switching. One card is needed for each channel, for a total of 5
Video SW Cards: one card for R, one card for G, one card for B, one card for H and one card for V.
Connect IN 1 of the R signal card to the R signal from a laptop, video camera, etc. IN 2 will be connected to
the R signal of a Macintosh, document camera, etc. Continue this sequence for each card and signal.
Connect the VID OUT of the R signal card to the R signal from the projector. The same applies to the
G, B, H & V signals. Note: to group multiple cards, see the MT100-100 user's guide for more information.

APPLICATION DIAGRAMS

5

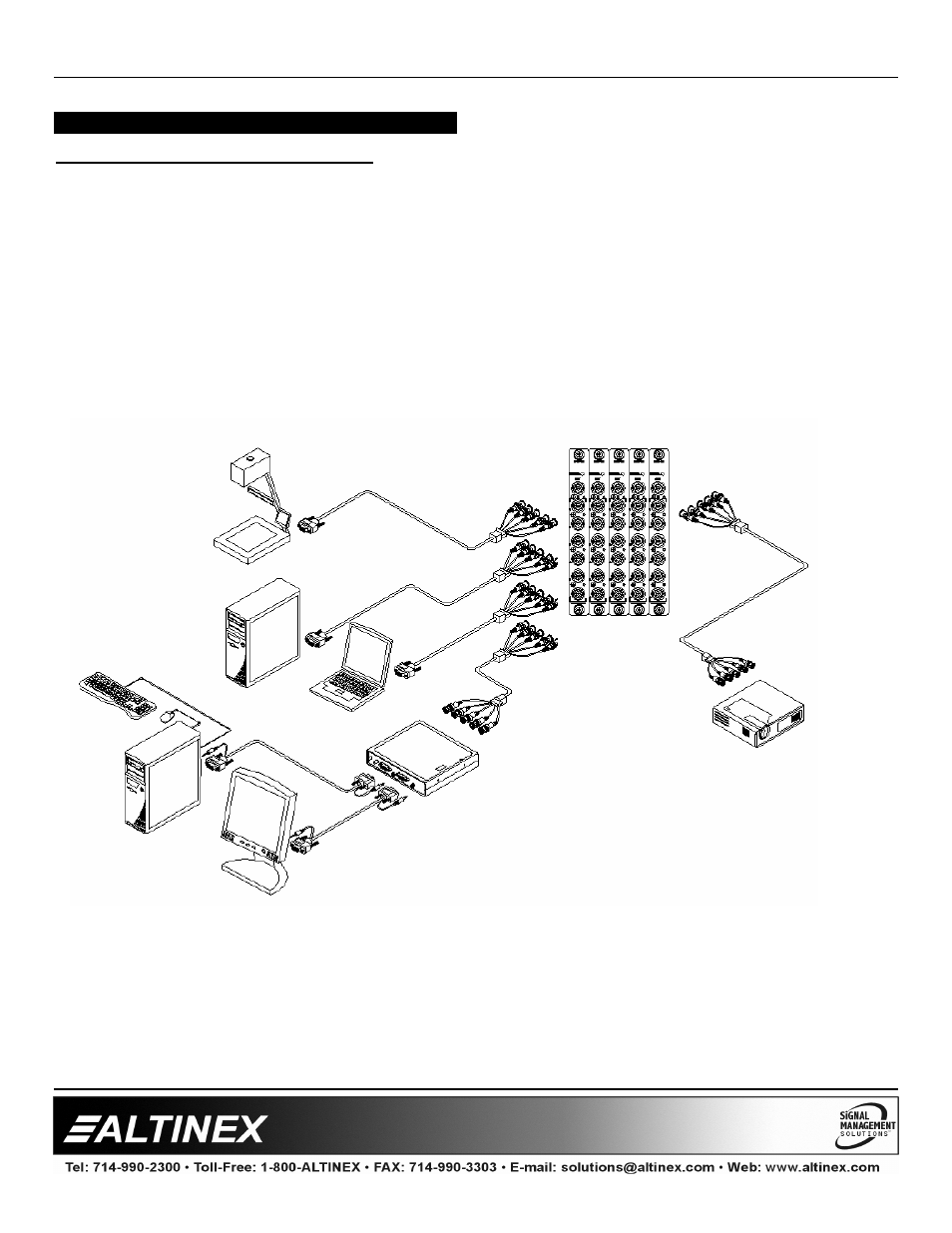

DIAGRAM 1: RGBHV CONFIGURATION
