MULTI-TASKER™

400-0082-005

4

4

ELECTRICAL

MT104-100/103

Input Signals
Analog

+/-1.5V (1.5Vp-p)

Or Digital

+5V

Impedance

75 Ohms

Type

Differential

Return Loss

-38dB @ 50MHz

Maximum DC Offset

10mV

Output Signals
Gain

1.05 (+/-5%)

Impedance

75 Ohms

Propagation Delay (Sync)

4nS max.

Rise/Fall time (Sync)

6nS max.

Differential Phase Error

01° @ 4.5 MHz

Power
Power
from MT100-100

+6V

-6V

Power

Consumption

MT104-100

100mA 80mA

1.1 watts

MT104-103

125mA 90mA

1.3 watts

Optional Accessories

MS8102CA

6ft., 15-pin HD Male to 5 BNC

Male

MS8112CA

6ft., 15-pin HD Female to 5

BNC Male

Table 3. MT104-100/103 Electrical

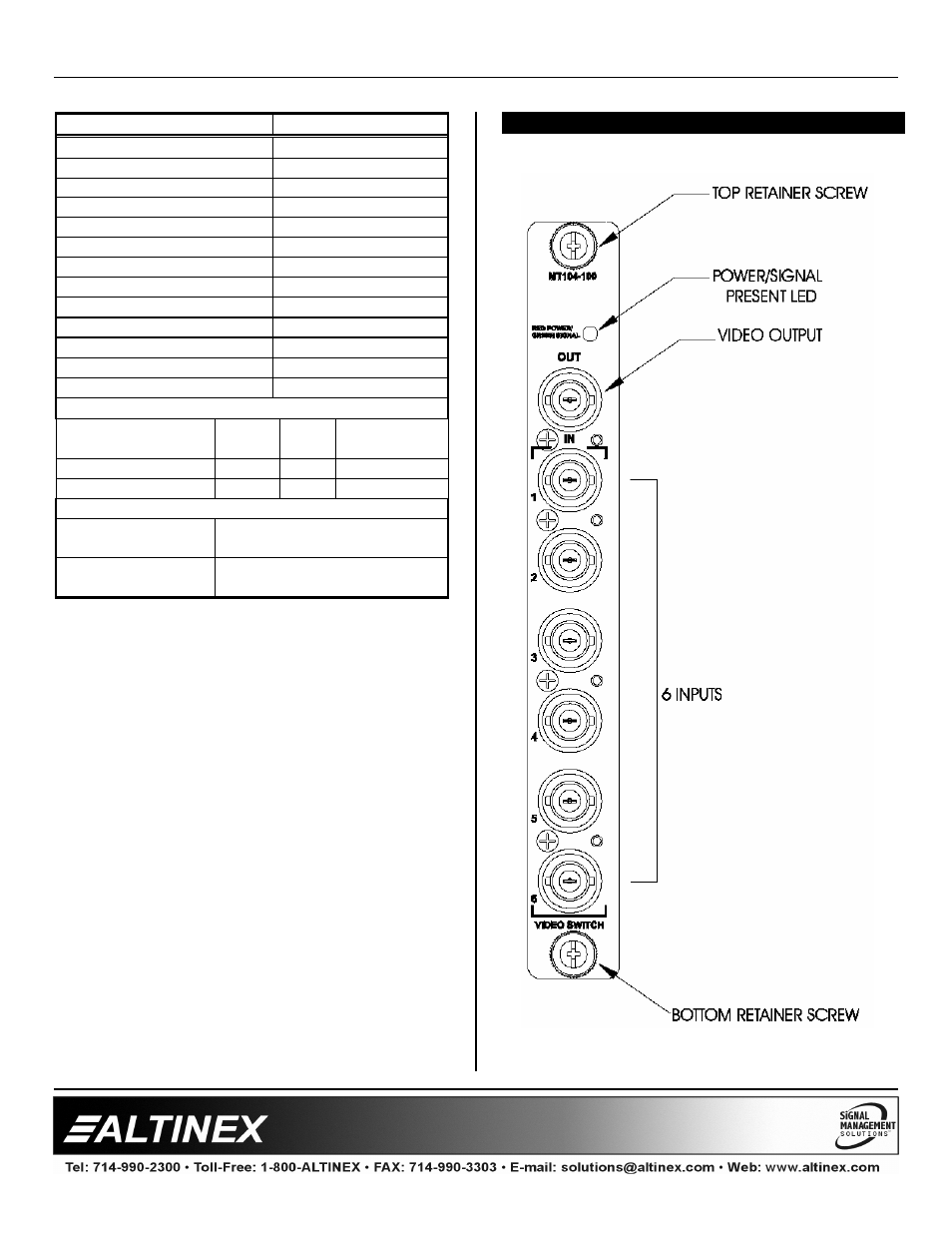

DESCRIPTION OF MT104-100

4
