5. Photography
-29-

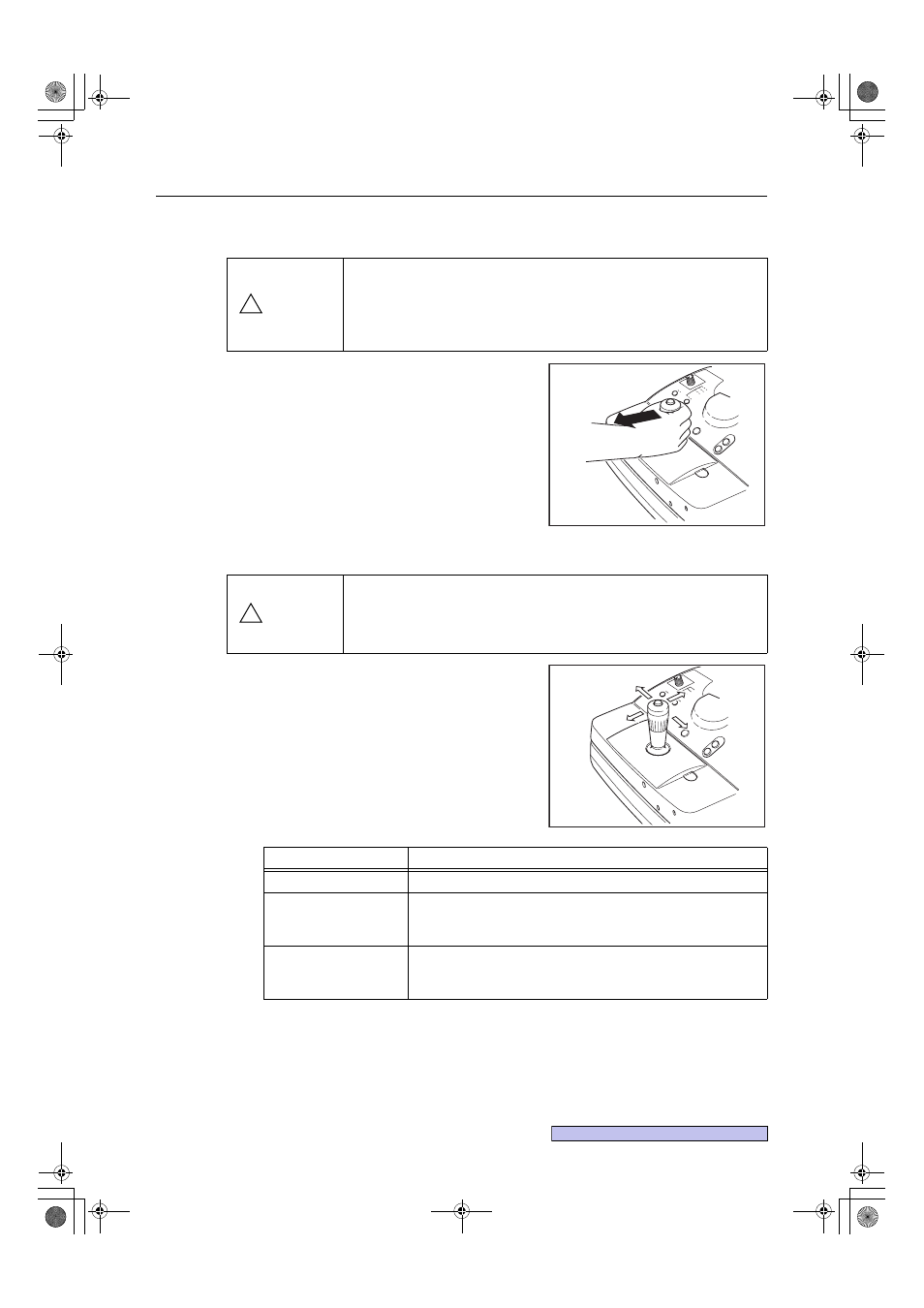

6 Align the camera’s main unit to the eye to be photographed.
Hold the operation lever, pull it towards you, and then
move it in the direction of the eye to be photographed.
7 Align the camera position.
Use the operation lever to approximately align the
camera position.
CAUTION
Do not put your fingers or hands between the sliding part and base of the
stage unit or on the panning and tilting sliding parts.
Similarly, do not allow patients to put their hands in these places.
Otherwise, your hands or fingers or theirs may be pinched, possibly
resulting in injury.
CAUTION
When adjusting the position of the main unit in the front-back direction,
slowly bring the main unit closer to the patient while looking at the patient’s
eye from the side.
You may injure the patient’s eye if the objective lens makes contact with it.
Direction Operation
Height Turn the operation lever.
Side movement
While holding the operation lever, pull it to the left and right to
perform approximate adjustment; tilt it to the left and right to perform
fine adjustment.
Forward/backward
While holding the operation lever, pull it forward and backward to
perform approximate adjustment; tilt it forward and backward to
perform fine adjustment.
!
!
