Printer Parts
Printer Parts
Operations and Display Screen
Operations and Display Screen

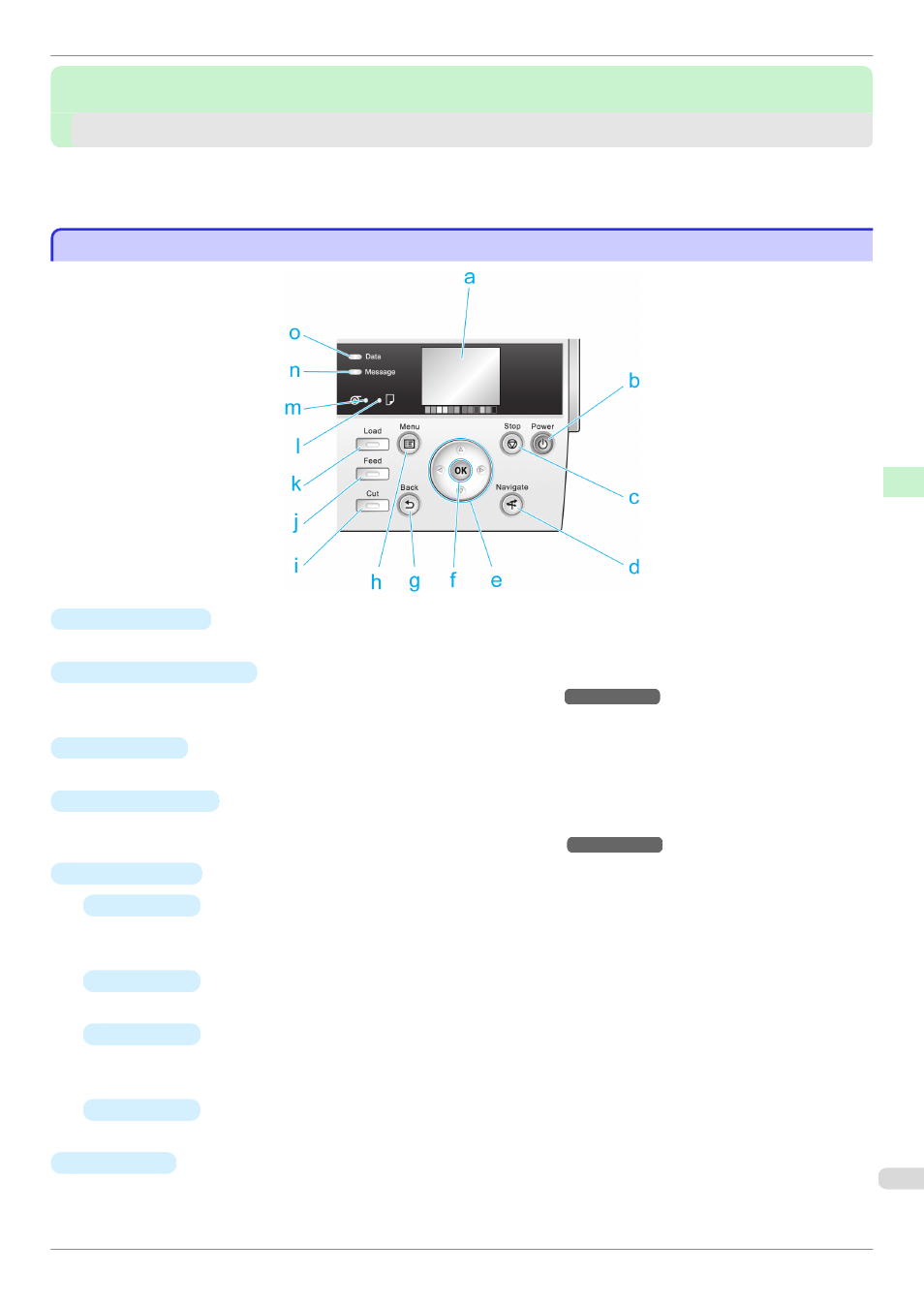

Control Panel
Control Panel
a
Display Screen
Shows printer menus, as well as the printer status and messages.
b
Power button (green)
Turns the printer on and off. (See "Turning the Printer On and Off.")
→User's Guide
The Power button is lit when the printer is on or in Sleep mode.
c
Stop button
Cancels print jobs in progress and ends the ink drying period.
d
Navigate button
Enables you to check instructions for loading and removing paper or replacing ink tanks or printheads, as well
as other operations. (See "How to View Instructions with Navigate.")
→User's Guide
e
Arrow buttons
•
◀ button
Press this button on the Tab Selection screen to move to another tab.
In menu items requiring numerical input, press this button to move to another digit.
•
▲ button
Press this button when viewing menus to display the next menu item or setting value.
•
▶ button
Press this button on the Tab Selection screen to move to another tab.
In menu items requiring numerical input, press this button to move to another digit.
•
▼ button
Press this button when viewing menus to display the next menu item or setting value.
f
OK button
Press this button on the Tab Selection screen to display the menu of the tab shown.
