Caution
Step 4
Step 5
New Threadlocker Must Be Applied To the Brake Nut Setscrews To Prevent
Premature Brake Failure!
Install new brake body on 8-32 studs until seated on brake nut and flush as
detailed in Figure 4. After disc is centered brake nut may be rotated slowly
to allow brake nut to line up with brake disc. Install 8-32 nuts and tighten -
threadlocker is not required on these nuts.

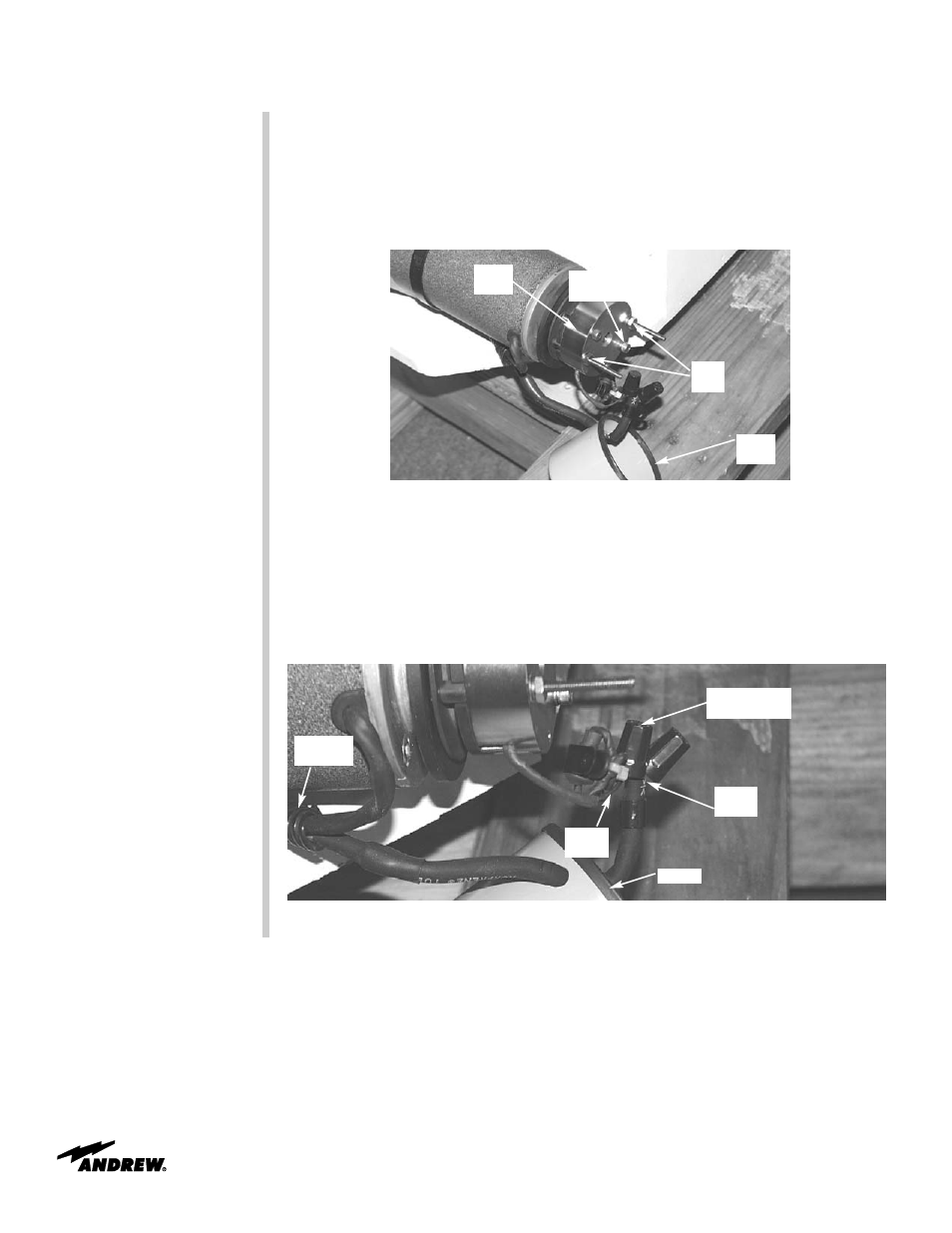

Figure 4
Remove the two black wires from the old brake body from their wirenuts
(attached to the red and black wires). Install the new brake body wires in the
same manner as the old ones were removed. Either black brake wire may be
connected to either the red or black wires - polarity is not important. Be sure not
to reverse the wiring of the diode. (POLARITY DOES MATTER ON THE
DIODE). Be sure wire nut setscrews are secure. Refer to Figure 5 for details of
this step.
Figure 5
19
Component Replacement
Brake Release
Hardware
Brake
Body
8-32
Nuts
Brake
Cover
Squeeze-Tight
Fitting
Protective
Tubing
Cover
Black
Wire
Red
Wire
