Azimuth Brake
Replacement
Purpose
Required Tools
(Customer-
Supplied)
Caution
Step 1
Provide instruction to remove and replace the azimuth and/or elevation brake assembly
used on the ESA24SNG-LTE-XX Series 2.4M SNG Antenna.
•
No. 2 Phillips Screwdriver (Must have good tip that fits screw head well)
•
Small propane torch (or equivalent).
•
Small (4-8 inch) Adjustable Wrench.
•
Single edge razor blade or sharp knife.
•
2 X 4 Lumber 5-foot long.
•
5/32” Allen Wrench
This Procedure Should Only Be Performed In Non-Windy Conditions (Winds
Under 15 mph). When the Brake Is Removed the Antenna Will Be Allowed to
"Freewheel". Two Persons Are Required To Safely Remove and Reinstall the
Brake Assembly. One Person To Perform the Replacement and the Other To Hold
the Antenna In Position.
Turn Off Main Power Source To the Controller System Prior To Proceeding!

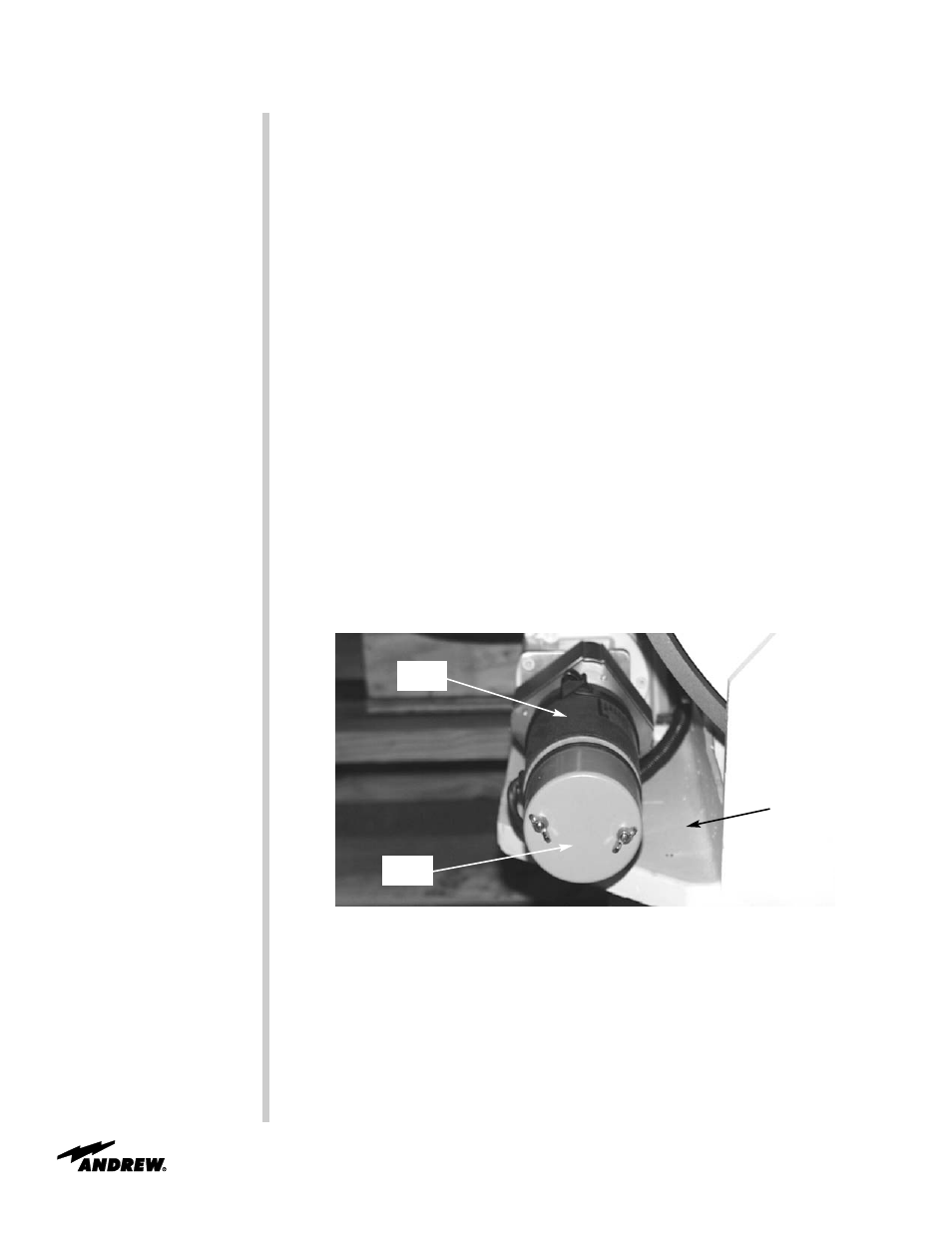

Locate the azimuth brake at the rear of the azimuth panning frame. Refer to
Figure 1.
Figure 1
17
Azimuth
Brake
Azimuth
Motor
Panning
Frame
