How to Install the PDU
Rack Power Distribution Unit — AP7610
5

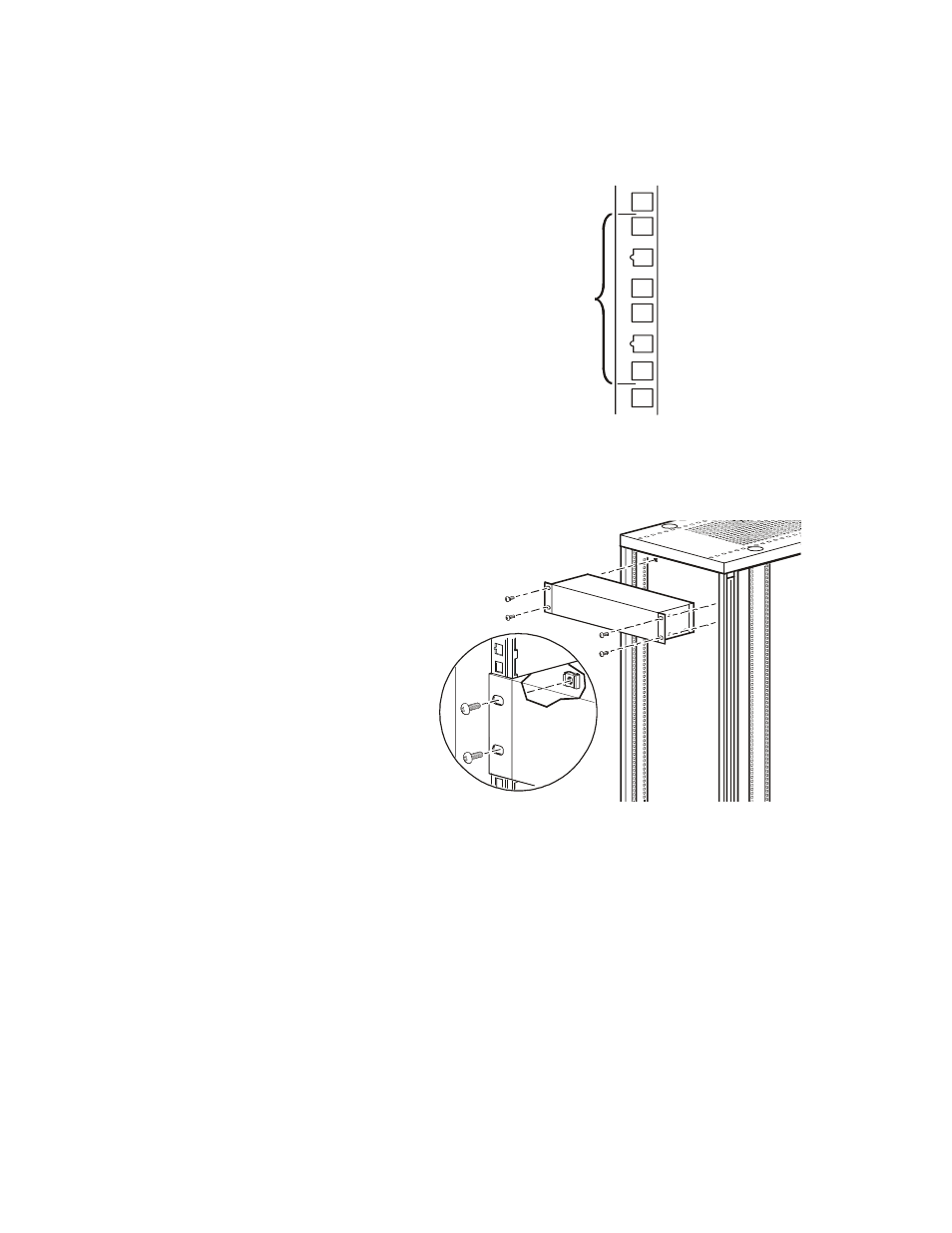

1. Insert caged nuts (provided with the enclosure) on the vertical
mounting rails above a notched hole at the start of the top two
U-spaces in your enclosure and below the notched hole at the
lower end of the two U-spaces.
2. Align the mounting holes on the brackets with the caged nuts you
installed in step 1, and insert four mounting screws (provided with
the enclosure) to secure the brackets to the enclosure.
2U
