Rack Power Distribution Unit — AP7610

How to Install the PDU

Overview

Install the AP7610 Rack PDU in the rear, top two U-spaces of a rack or
enclosure for overhead wiring, or in the rear, bottom two U-spaces for
under-floor wiring. To install the Rack PDU in a NetShelter

Standard

Enclosure:

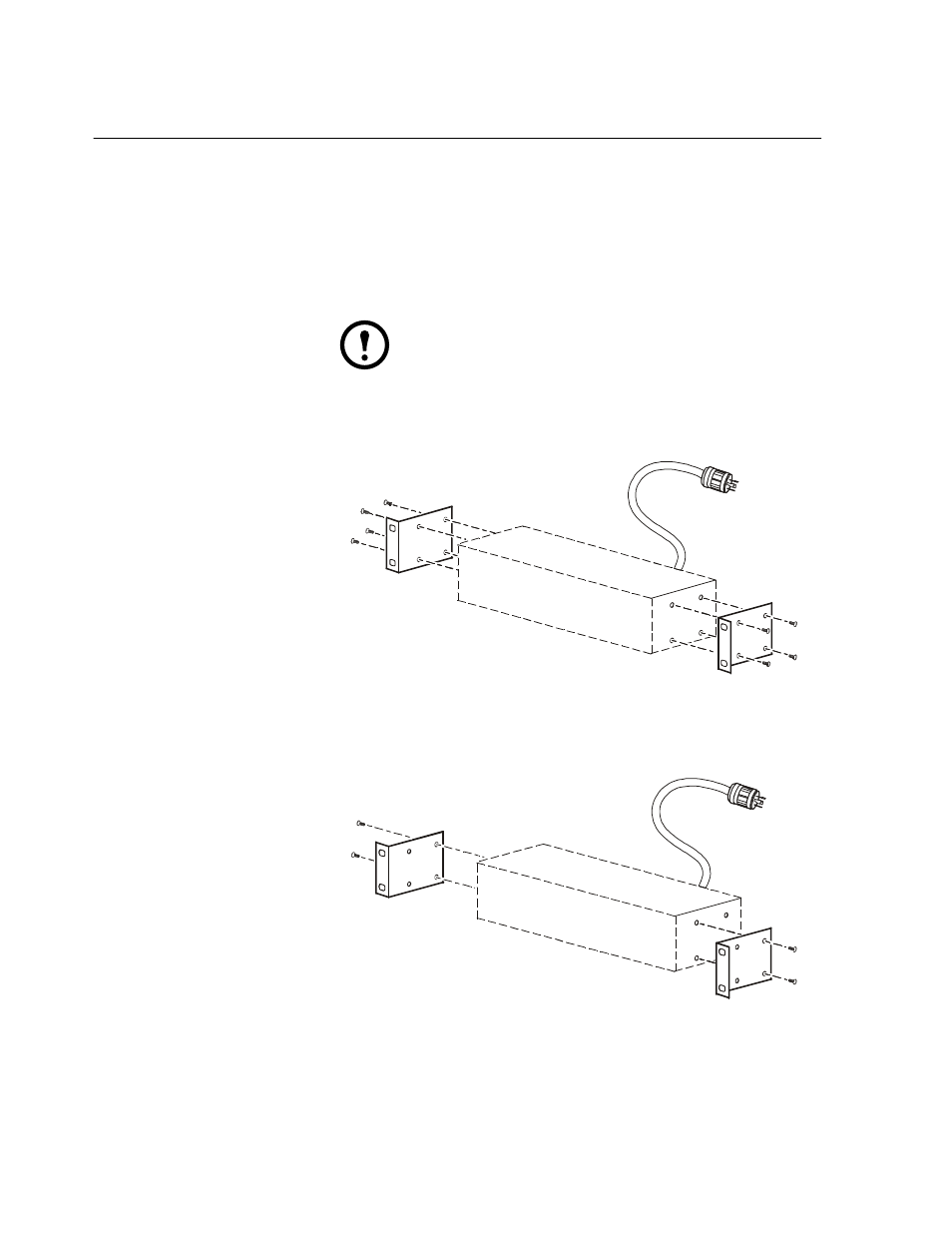

1. Attach a bracket to each side of the Rack PDU, using the pan-head

screws.

For placement flush-to-rack: use four pan-head screws (provided)
for each bracket.

For a recessed placement: use two pan-head screws (provided)
through the last two holes of the mounting brackets and into the
first two holes on the Rack PDU.

Note

Some enclosures may require you to recess the Rack
PDU so that the back doors of the enclosure will close
when other devices are plugged in.
