3.5.5 Transponder Configuration (User Password Protected)
The Configuration Menu allows the user to alter the hardware-based parameters. User Password
Configuration is also undertaken here.
Accessing the Configuration Settings:
The Configuration Menu is User Password protected.
NOTE: The default password from the factory is mentioned on your AIS display at the
protection foil. (see Appendix 0 for password information).

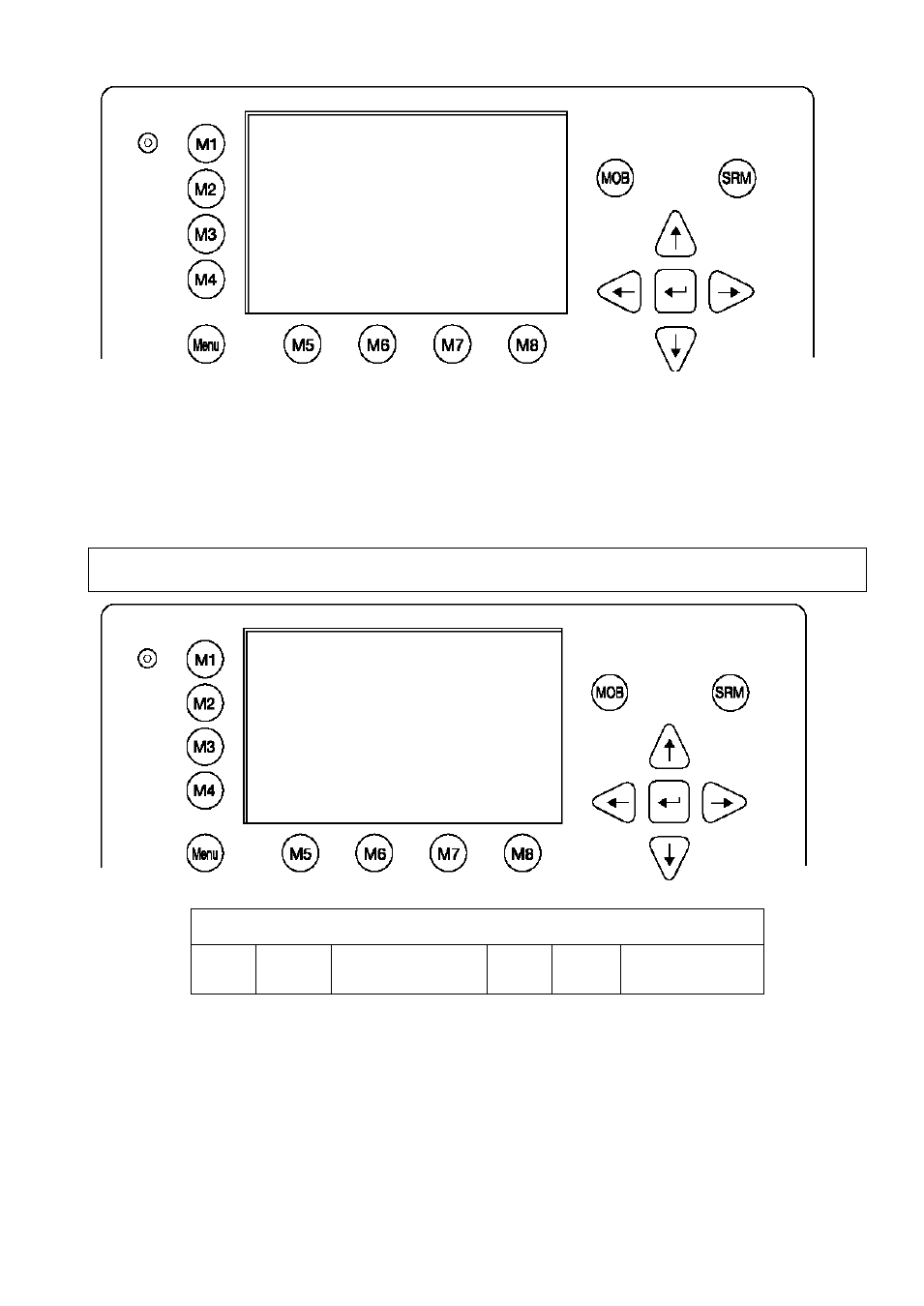

Dynamic Keys: Transponder Configuration
[M5] [Select]
Select desired
Submenu
[M8] [Back]
Return to Main
Menu
N 1 o 33' E 0 o 26' |1>01.10|2>1.30| * 1A1L
|----------------------------------
| 5. Transponder Configuration
-----| |
| +- 1. Change User Password
View | +- 2. Region Settings
| +- 3. Alarm Settings
-----| +- 4. Interrogation Settings
| +- 5. Sensor Settings
Msg. | +- 6. GPS Settings
|
-----|
|
Displ|
----------------------------------------
NUM| Select->| | |<-Back
N48^12' E 16^26' |1> N/A|2> N/A|3> N/Anm
************ Ship Settings *************
Call Sign:SO52 /\ +
ShipName :SOLAS 52 / \|
Ref.Points ext int | |
A: 170m 171m | A
B: 30m 29m | |
C: 15m N/A | +--|
D: 15m 30m | | B
Len (A+B): 200m 200m | | |
Beam(C+D): 30m 30m +-C-+D-+
Ship Type: N/A or no ship
>>> DATA OK. PRESS M5 TO SAVE DATA <<<
----------------------------------------
NUM| Save | | | Back
| Save | | |
Back
