3.2 Menu Structure
To call up the Main Menu, press the [Menu] button once, and all Submenus are displayed. The
cursor position indicates the selected submenu.
Menu navigation is achieved by pressing the [Up] or [Down] keys to select, and then by pressing
[Enter] to confirm the desired Submenu selection.
To escape from any Submenu and returning to the Navigation Screen, press the [M2] button at any
time.
The own vessel‟s current Navigation Information is continuously displayed on the first line. It
contains the own position and the first three vessels, which are located within closest range of the
own ship.
Tip: Fast Menu Selection is achieved by simply pressing the desired Submenu Number on the
keyboard.
3.3 Main Menu
Note: The Navigation Screen automatically appears after some seconds of user inactivity on the
Transponder, or immediately by pressing the [Menu] button in the Main Menu.

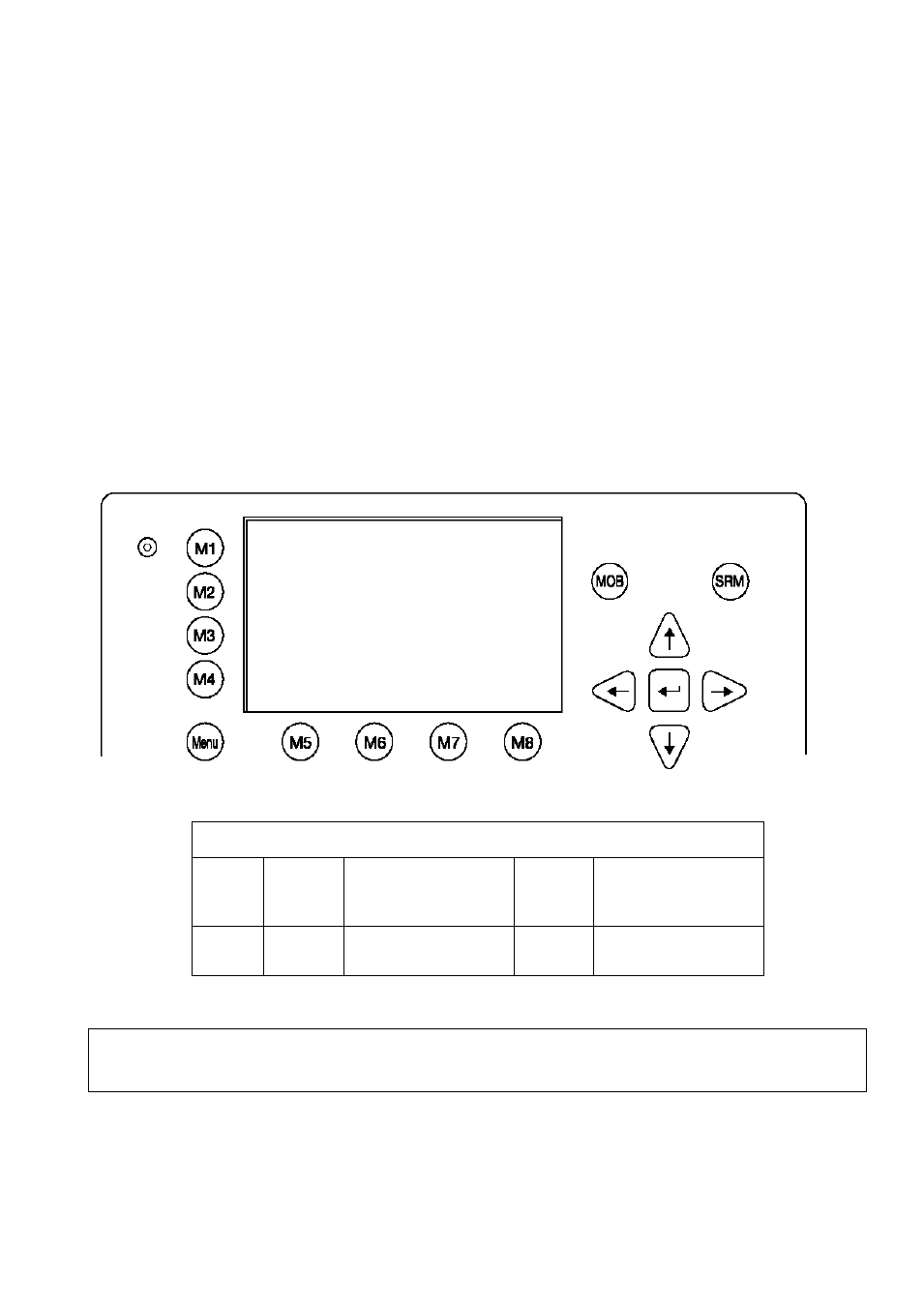

Dynamic Keys: Main Menu Screen
[M5] [Select]
Select chosen
Submenu
[Enter]
or
[Right]
Confirm Submenu
Selection
[M8] [Back]
Return to Navigation
Screen [Up] /
[Down] Navigate Submenu
for selection
N 1 o 46' E 0 o 39' |1>0.10|2>1.30|3>1.80nm
|----------------------------------
| Menu
-----| |
| +- 1. Messages
View | +- 2. AIS Status
| +- 3. Voyage Settings
-----| +- 4. Ship Settings
| +- 5. Transponder Configuration
Msg. | +- 6. Service Configuration
| +- 7. Display Settings
-----| +- 8. Graphical Display Settings
|
Displ|
----------------------------------------
NUM |Select->| | <-Back
