OSD MENU
Description
1
2
3
4
5001
5005

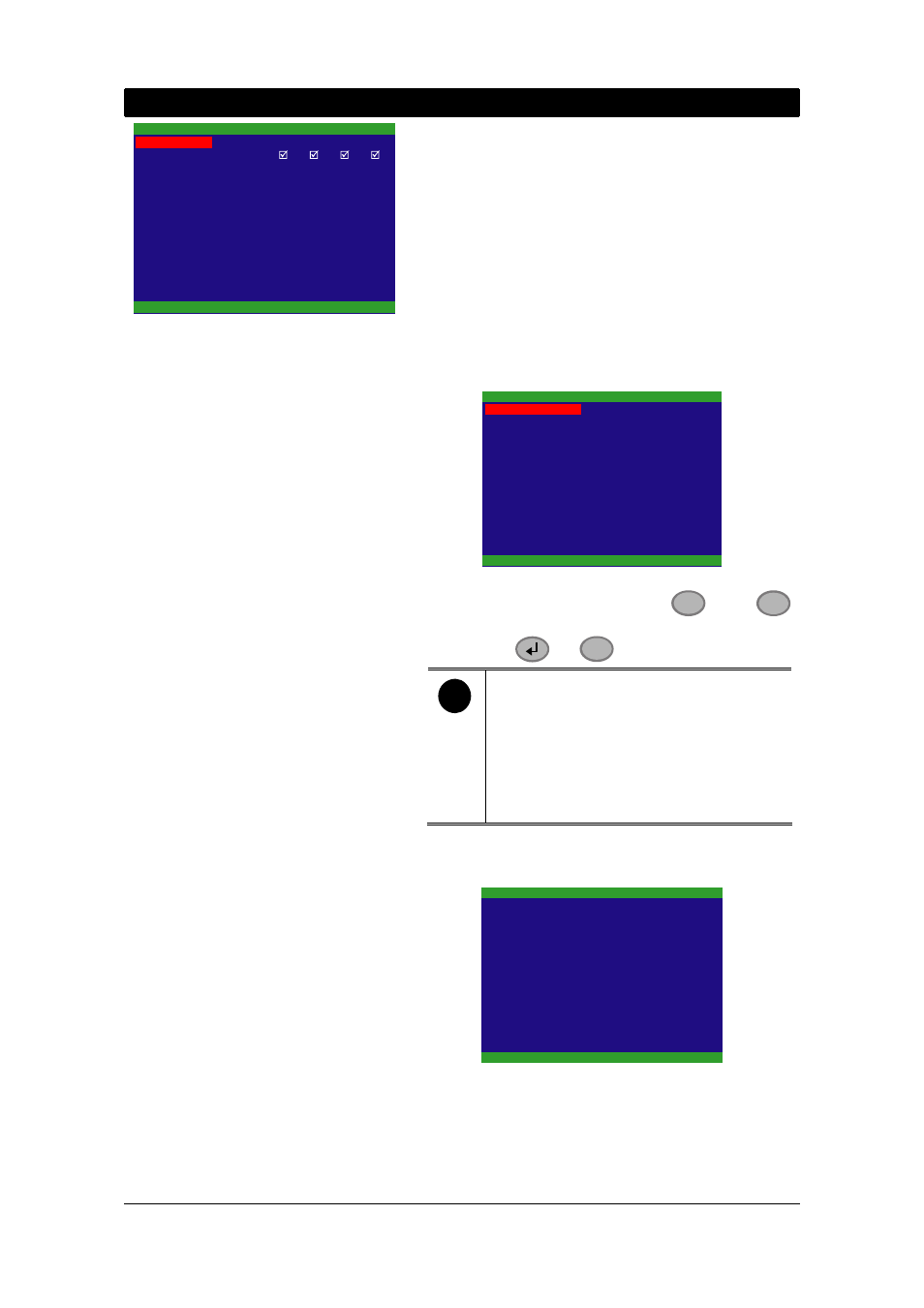

NETWORK SETUP
IP MODE
NW ENABLE
VIDEO PORT
UPGARDE PORT
STATIC
dresses. Enter the subnet mask of the IP
address which user has assigned to DVR
system.
-
GATEWAY: A network device act as a
passageway to internet. Enter the network
gateway IP address
-
DNS: Domain Name Server translates domain
names (such as www.abb.com.tw) to ess of DNS if it is
available.
-
MAC ADDRESS:
Only for user information. Don’t
need to enter the MAC address.
- When all parameters are set, select the
CHANGE to confirm the configuration
.
192.168.153.254
192.168.153.1
00.00.00.00.00.00
NETWORK INFORMATION
IP ADDRESS
SUB NET
GATEWAY
DNS
MAC ADDRESS
CHANGE
192.168.153.100
255.255.255.255
DHCP: Assign the IP address by local DHCP
server to DVR system. Use
▲
and
▼
buttons to go up and down and select DHCP, and
then press
or
▼
to make selection.
i
The DHCP (Dynamic Host Configuration
Protocol) is a set of rules used by a
communications device (such as a
r networking adaptor) to
allow the device to request and get an
Internet address from a server which has
a list of addresses available for
assignment
The DVR system will try to get an IP address from
the DHCP server. A message window will show up
as below:
GET IP NOW! WAITING...
