Host Software
RFID Application Kit ATAK2270 User Manual 5-21
4871E–RFID–04/08

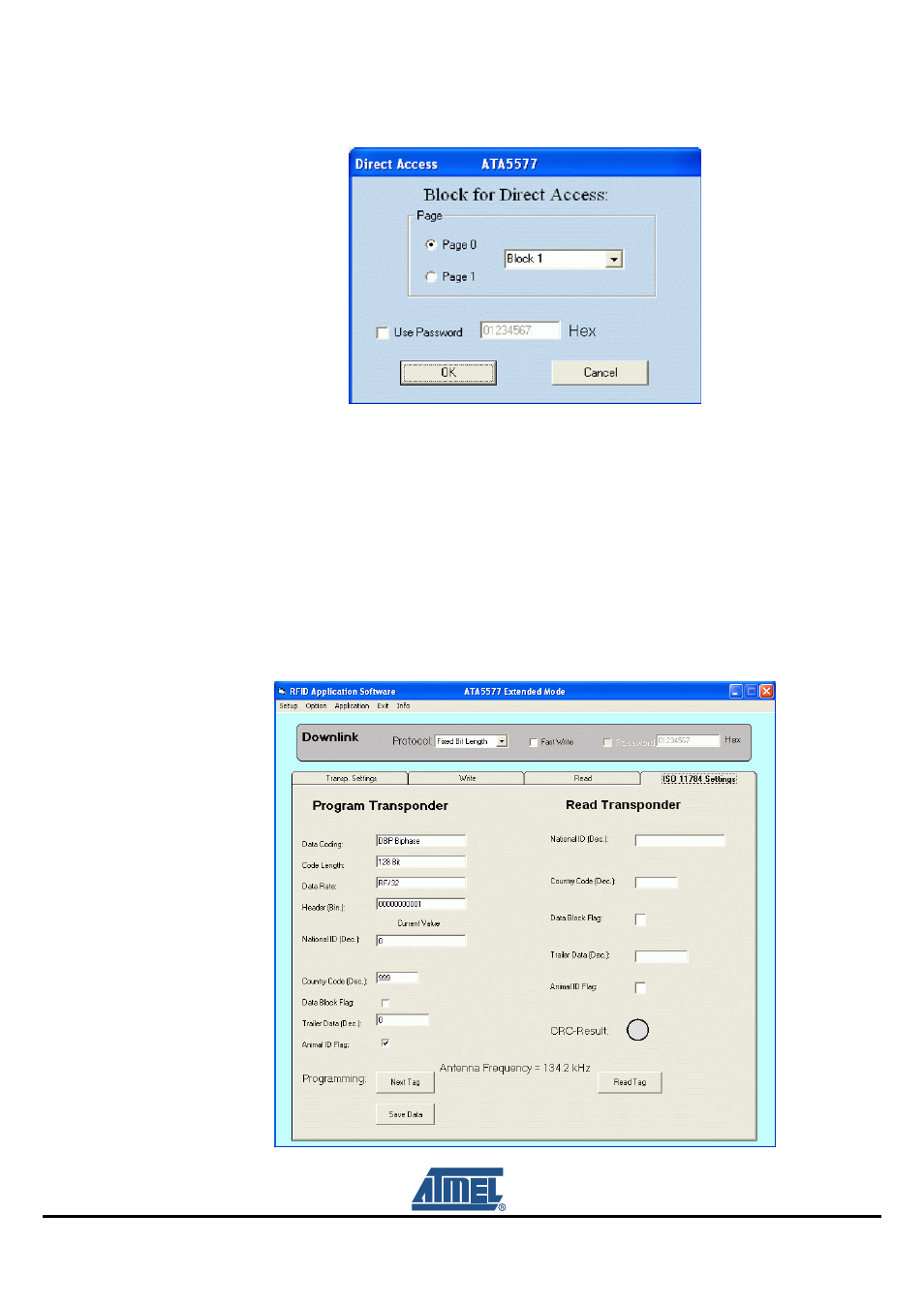

Figure 5-24. Direct ccess Dialog Box
In the Read tab, an AOR button is displayed if AOR has been configured in the Transp. Settings tab (see
Figure 5-21 ). The execution of the command initiates the Answer on Request procedure ( Section 5.4.2
”Answer On Request AOR Mode” ).
Click the Reset Transponder button to initialize a reset. This initializes the standard Read Mode of the
transponder.
Transponder manufacturer data can be read by clicking the Traceability Data button ( Section 5.4 ”Oper-
ating Common Transponder Features” ).
5.3.6.6 Selecting ISO 11784 Setup tab
Figure 5-25. ATA5577 ISO 11784 Setup Menu
