Host Software
RFID Application Kit ATAK2270 User Manual
5-3
4871E–RFID–04/08

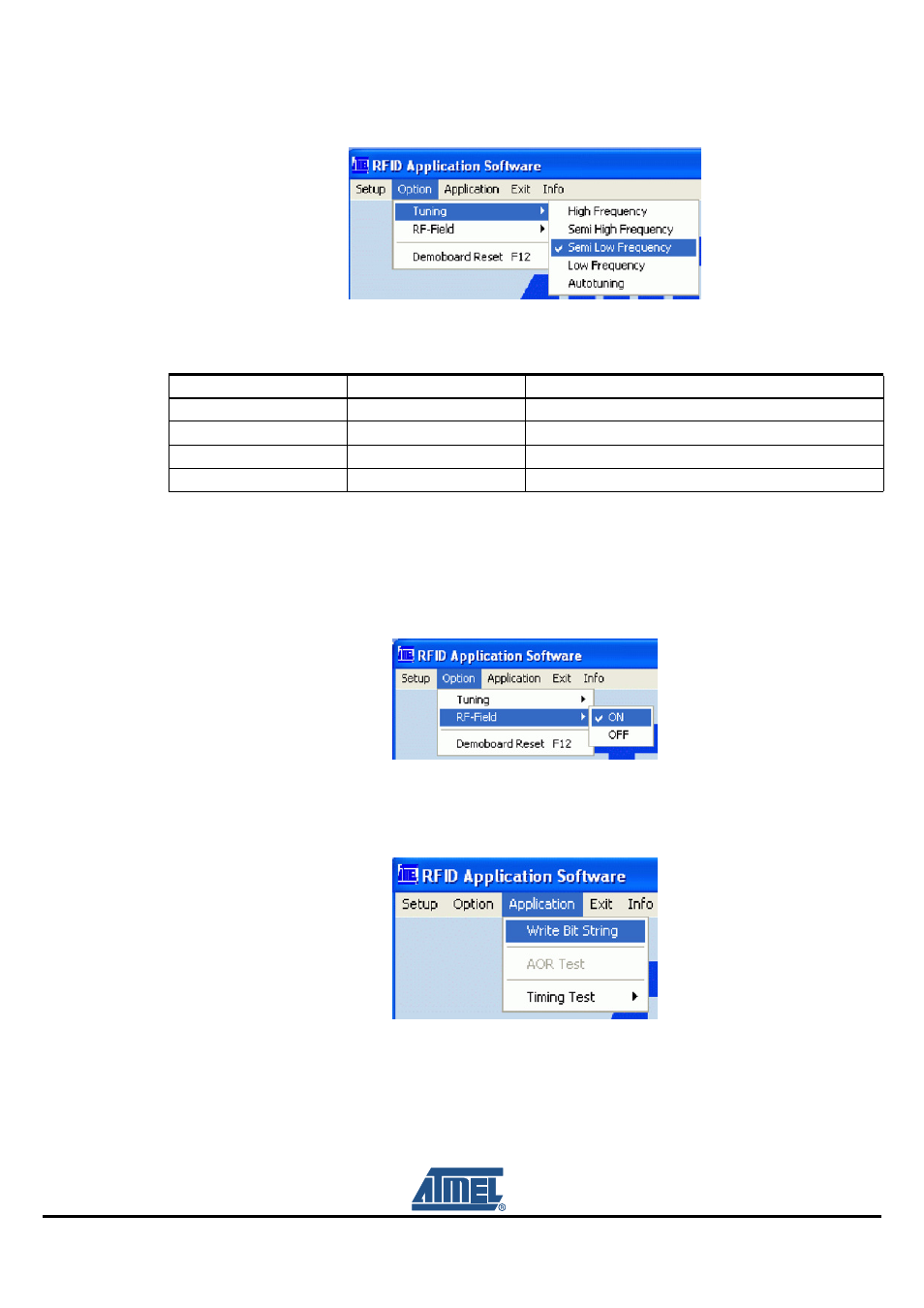

Figure 5-4.
Tuning Menu
Select the submenu RF-Field to switch the antenna’s RF field ON or OFF. The current status is indicated
by the yellow LED, RF On, on the interface board. ON is the default value.
Clicking Demoboard Reset resets the application board and returns all changes in the option menu to
the default values. The reset can also be triggered by pressing F12.
Figure 5-5.
RF-Field Menu
5.2.3
Application
Figure 5-6.
Application Menu
Table 5-1. Tuning Stage LED Indication
Tune2
Tune1
Frequency
0
0
High
0
1
Semi High
1
0
Semi Low (default)
1
1
Low
