User’s Manual

45

Remote IP Network: 192.168.123.0

Remote Netmask: 255.255.255.0

Remote Gateway IP: 172.16.0.123

Network Interface: The interface on the router used to
communicate with the remote network. Most users should
leave this set to WAN ETHERNET

Local IPSEC Identifier: Allows you to identify multiple tun-
nels and does not have to match the name used at the
other end of the tunnel. The default value is Local.

Remote IPSEC Identifier: Allows you to identify multiple
tunnels and does not have to match the name used at the
other end of the tunnel. The default value is Remote.

Note: If you do not know the Remote Gateway IP of the
remote client, you can enter 0.0.0.0. However, the VPN
connection request must then be initiated by the client. If
you select Manual Mode, you must enter the Remote
Gateway IP address.

4.3 IPSec Keying (IKE Mode)


A VPN tunnel is formed of two separate Secure Associations, or
SAs. One SA is used for traffic in each direction, and the router will
keep track of both SAs for you. Since the router is going to be en-
crypting the packets that are sent across an unsecured network (the
Internet), it needs a way to share a key so that each router can de-
crypt the data it receives.

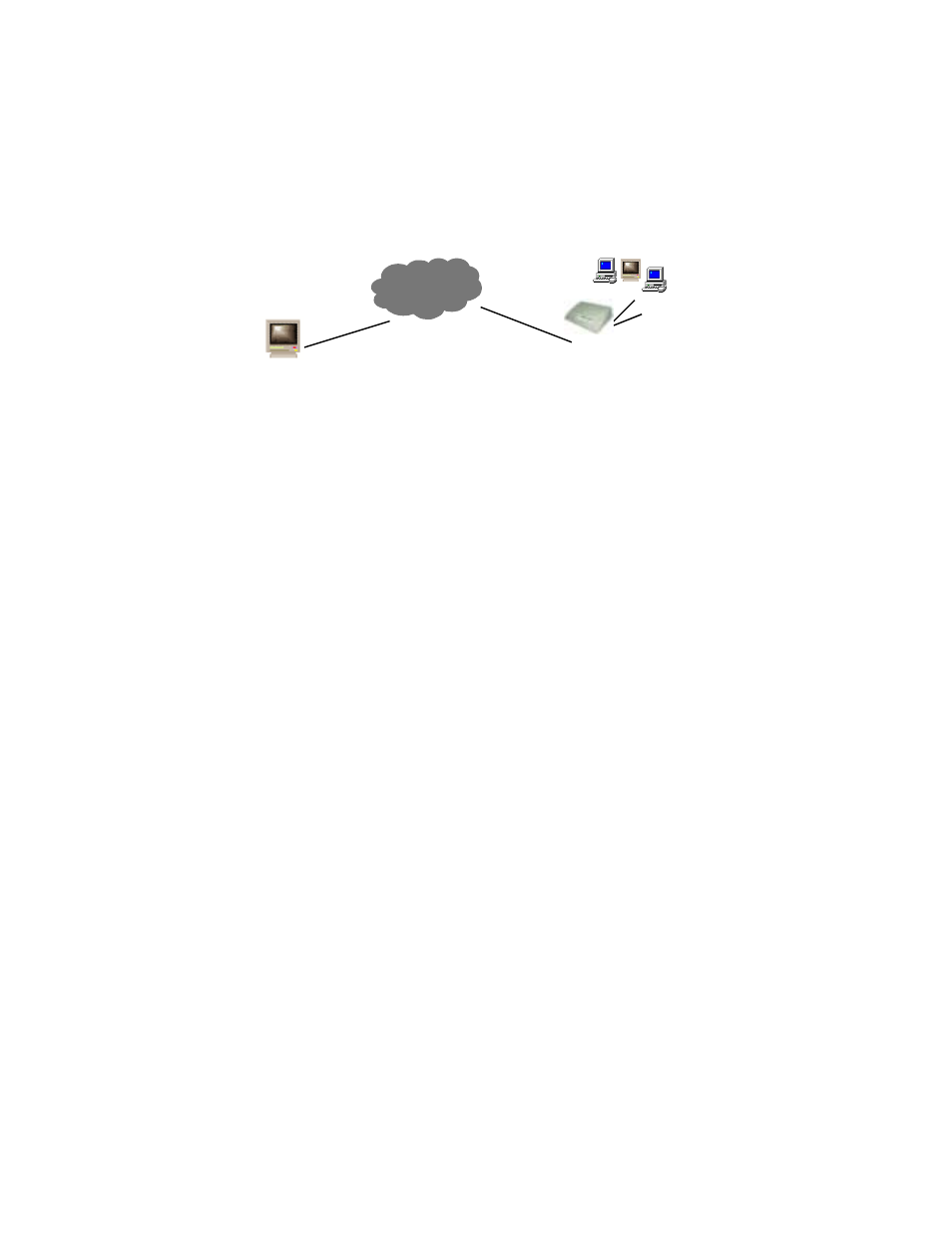

Internet

VR2004

WAN IP: 10.10.0.123
Netmask: 255.255.255.0
LAN IP: 192.168.100.254

WAN IP: 172.16.0.123
Netmask: 255.255.255.0
Virtual LAN IP: 192.168.123.0

Mode 2

PC A
