Asante Technologies VR2004 Series - Manual (Page 16)

FriendlyNET VPN Security Router 16

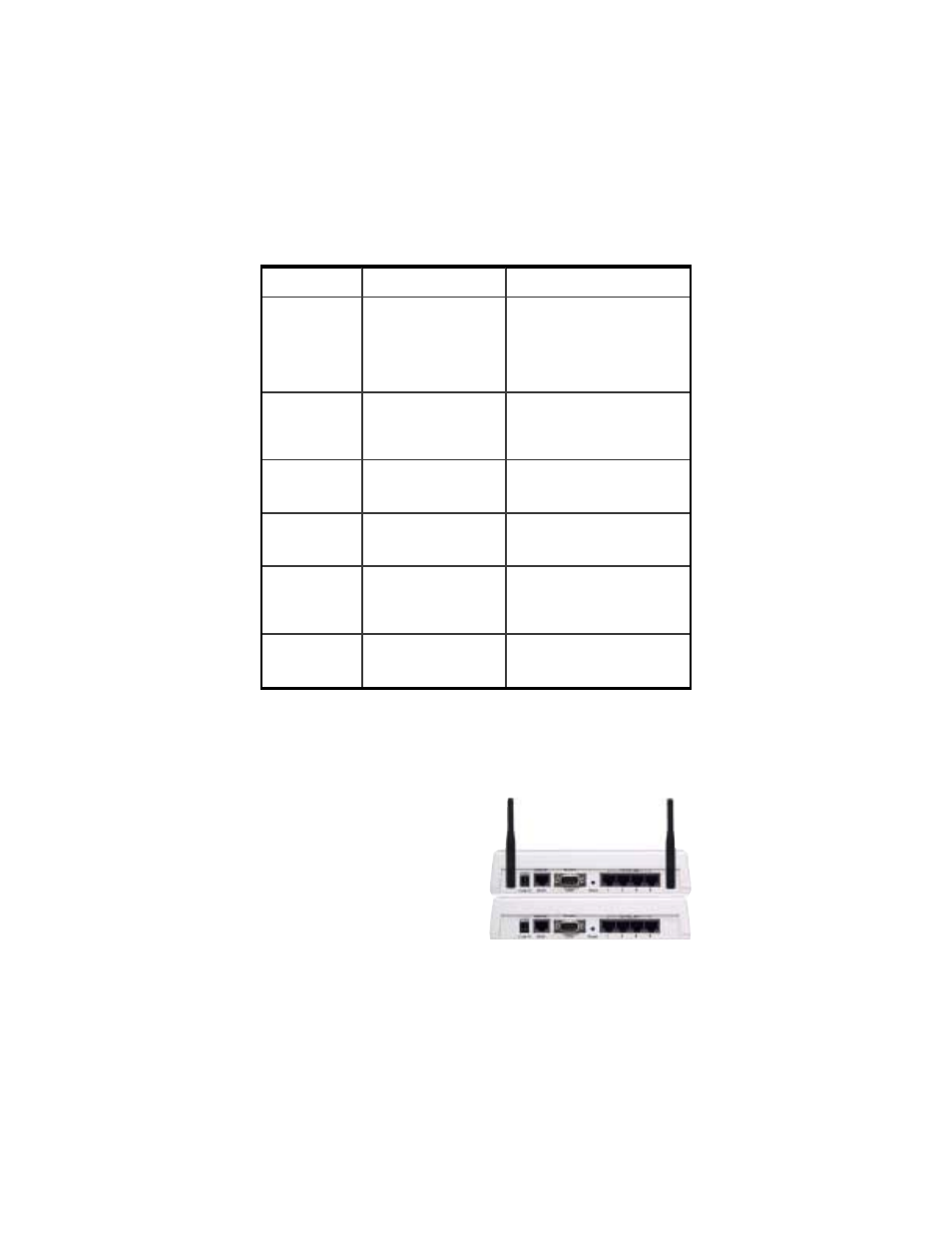

From left to right, the rear panel of the router
contains the following:
Power (5 VDC) plug; Internet (WAN) port; COM port; Reset button;
and LAN ports 4, 3, 2 and 1.
LED Color Description
Link/Activity
LAN ports 1 to 4
Green
Blinking
Off
A valid link has been established on
the port.
Port is transmitting or receiving pack-
ets.
No link has been established on the
port.
Wireless
(VR2004AC model
only)
Green
Blinking Green
A wireless connection has been es-
tablished.
A wireless connection has not been
established.
COM Green
Off
A valid link has been established.
No link has been established.
Internet Green
Off
A valid link has been established.
No link has been established.
Status Blinking Yellow
Off
The router is booting up, or a firmware
upgrade is taking place.
The router is operating normally.
Power Red
Off
The power is on.
The power is off.
Table 1-1 LED Description
