• Oxygen ............................................................................. 7 to 9% O2
• Stack Temperature ......................................................... 325 to 500°F
• Draft (Water Column Inches) .......................................... -.02 to -.04wc”
• Carbon Monoxide (parts per million) ............................ <100ppm
g
aS
f
ired
P
ower
b
urNerS
• Oxygen ............................................................................. 3 to 6% O2
• Stack Temperature ......................................................... 275 to 500°F
• Stack Draft (Water Column Inches) ............................... -.02 to -.04wc”
• Overfire Draft (Water Column Inches) .......................... -.02wc”
• Carbon Monoxide (parts per million) ............................ <100ppm
o
il
f
ired
b
urNerS
(#2 o
il
f
uel
)
• Oxygen ............................................................................. 4 to 7% O2
• Stack Temperature ......................................................... 325 to 600°F
• Stack Draft (Water Column Inches) ............................... -.04 to -.06wc”
• Overfire Draft (Water Column Inches) .......................... -.02wc”
• Carbon Monoxide (parts per million) ............................ <100ppm
• Smoke .............................................................................. 0 (or manufacturer’s recommendation)
P
oSitive
o
verfire
g
aS
& o
il
• Oxygen ............................................................................. 3 to 9% O2
• Stack Draft (Water Column Inches) ............................... -.02 to -.04wc”
• Overfire Draft (Water Column Inches) .......................... +0.4 to +0.6wc”
• Carbon Monoxide (parts per million) ............................ <100ppm
NOTE: Follow manufacture guidelines for the specific equipment being serviced.

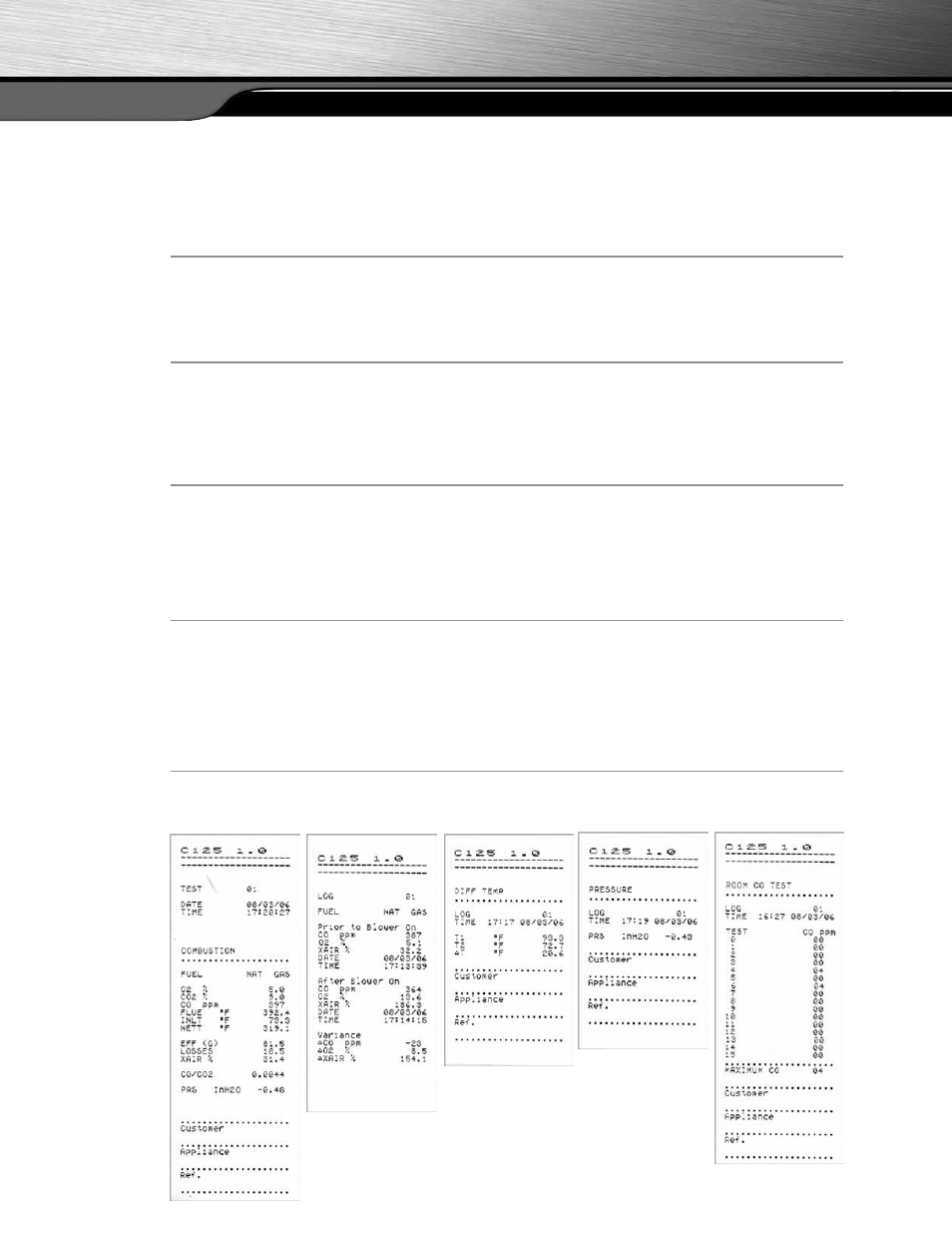

S
amPle
P
riNt
o
utS
/ r
ePortS
W
HAT
R
ESULTS
A
RE
G
ENERALLY
A
CCEPTABLE
Combustion
Test
Heat Exchanger
Test
Differential
Temperature Test
Manometer Draft/
Pressure Test
Room CO
Test
