GP Series Portable Chillers

Chapter 4: Operation

48 of 93

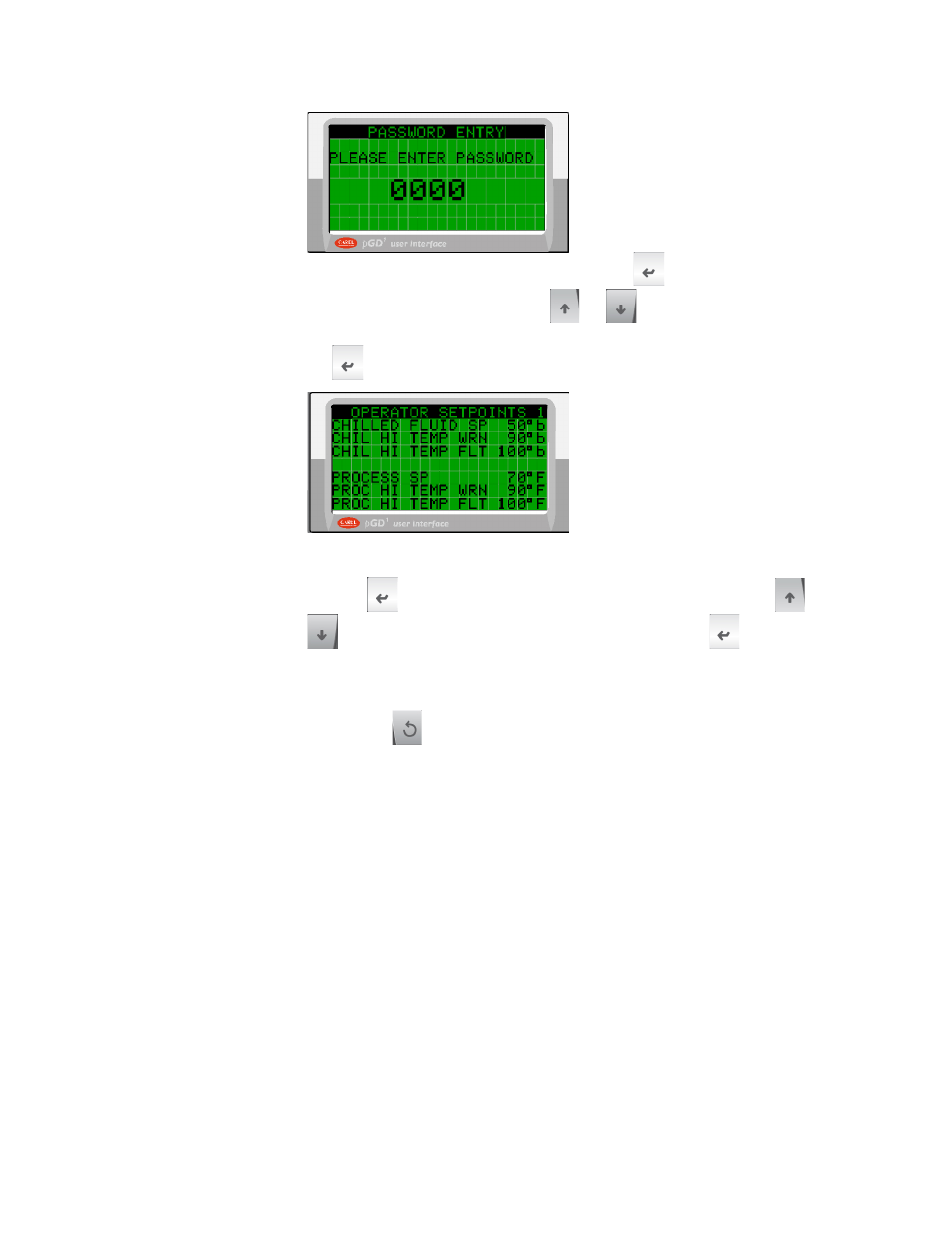

Enter the Operator Password by depressing the

to move the position of

the cursor, and then depressing the

button to increment or

decrement the number. Once all of the numbers have been entered depress

the

to accept the password. The following screen will appear.

Figure 18: Operator Setpoints Screen

3. Depress

to move the cursor to the Leaving Temp line. Use the

button to increment or decrement the value. Depress

to accept the

value and move the cursor down one line.

4. Adjust the Hi Temp Warning and Hi Temp Fault in the same manner.

5. Depress the

button twice to return to the main status screen.
