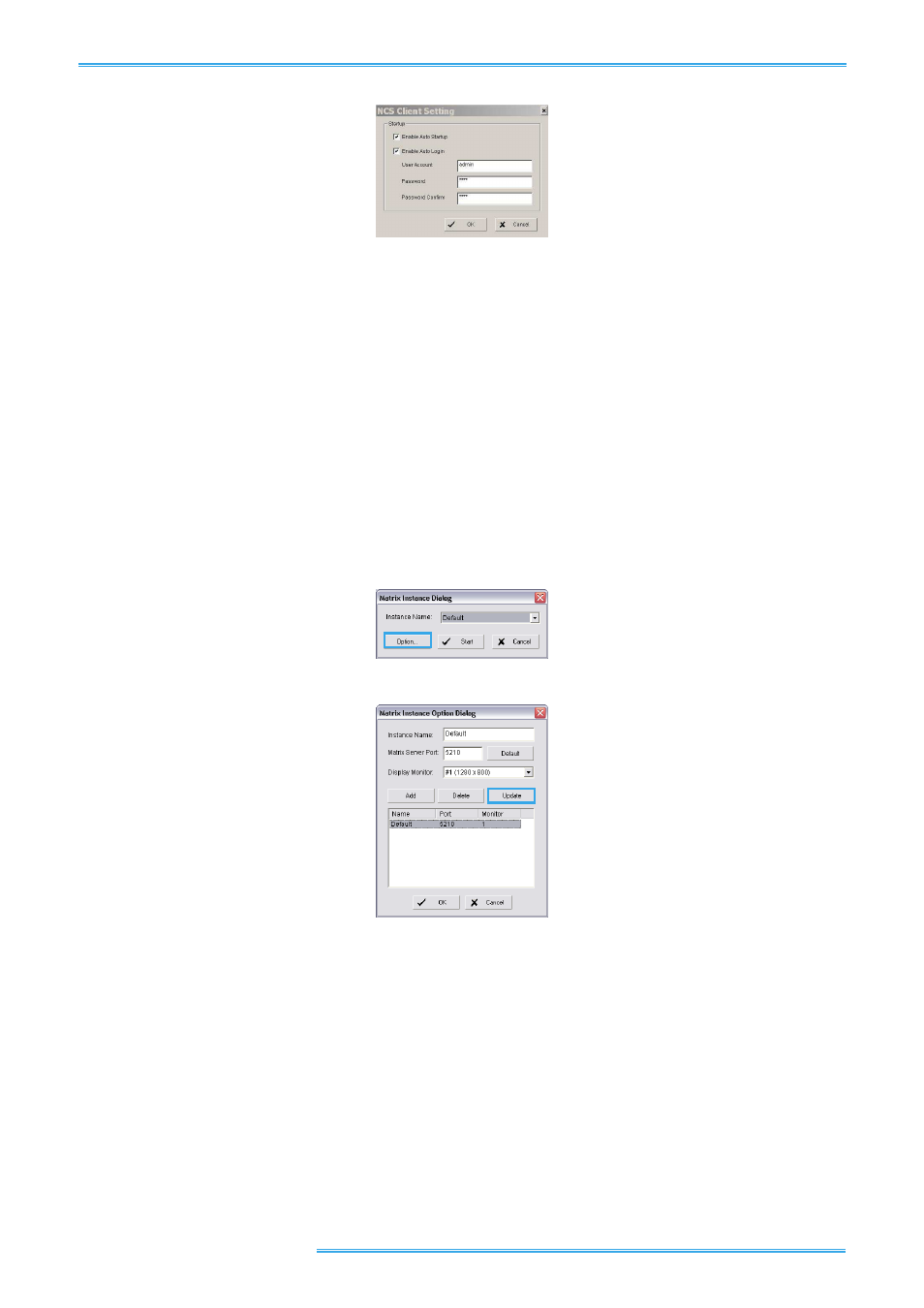

2. In the NCS Client Setting window, select Enable Auto Startup and Enable Auto Login
3. Enter a user account and, if required, a password.
4. Click OK.
NCS Matrix
To execute a single matrix display:
1. In the Start menu, point to All Programs, then point to NUUO Central Management Client or NUUO Central
Management Matrix, and click NCS Matrix.
To configure the first matrix in a multiple matrix system:
2. Ensure that the PC is configured to use multiple monitors.
3. In the Start menu, point to All Programs, then point to NUUO Central Management Client or NUUO Central
Management Matrix, and click NCS Matrix.
4. Click on Option to open Matrix Instance Dialog.
5. In the Matrix Instance Option Dialog window, select Default from list table.
6. Enter a matrix name, for example Monitor 1, in the Instance Name text box, leave the port at the default setting of
5210, select the #1 monitor from drop-down list, and then click Update to update modification.
To configure the second and subsequent matrixes in a multiple matrix system:
1. In the Matrix Instance Option Dialog window, enter a matrix name, for example monitor 2 in the Instance Name
text box.
2. Enter port number 5220.
3. Select the #2 monitor from drop-down list, and then click Update to update modification.
