Page - 15

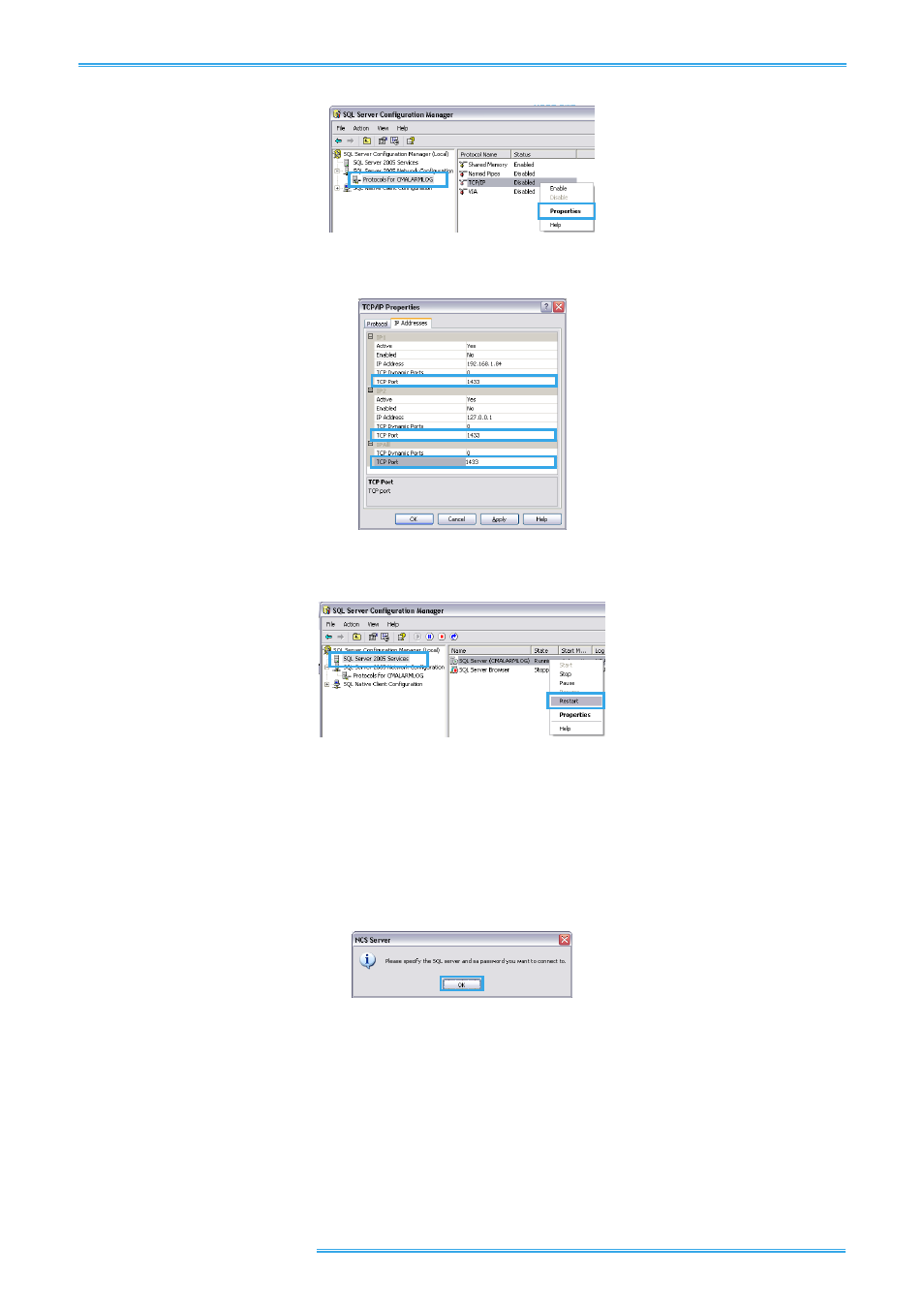

2. In the SQL Server Configuration Manager window, select Protocols for CMALARMLOG, right-click TCP/IP and
then select Enable to enable TCP/IP protocol.
3. Double-click TCP/IP, then in the TCP/IP Properties window select the IP Addresses tab.
4. Enter 1433 as the TCP port in IP1, IP2, and IPAll, and then click OK.
5. In the SQL Server Configuration Manager window, select SQL Server 2005 Services, right-click SQL Server
(CMALARMLOG), and then select Restart.
6. Ensure that any firewall allows access through port 1433.
NCS Alarm Server
To configure NCS Server:
1. In the Start menu, point to All programs, point to NUUO Central Management Server, and then select NCS Server.
2. In the NCS Server dialog box, click OK. This is only required the first time you start NCS server.
