12
Kaman Precision Products
Getting Started
Basis System 1. Your KDM-8200 system consists of these basic components:
A.
Sensor(s) and cable(s)
B. EuroCard modules
C. User manual
D. Accessory kit
Options
2. Depending upon the configuration of your KDM-8200 system or options
you have ordered, you might also have any of these items:
A.
A EuroCard chassis with integral power supply
B. An MCD 8000 display module
C. Special function modules
D. Micrometer calibration fixture
Module

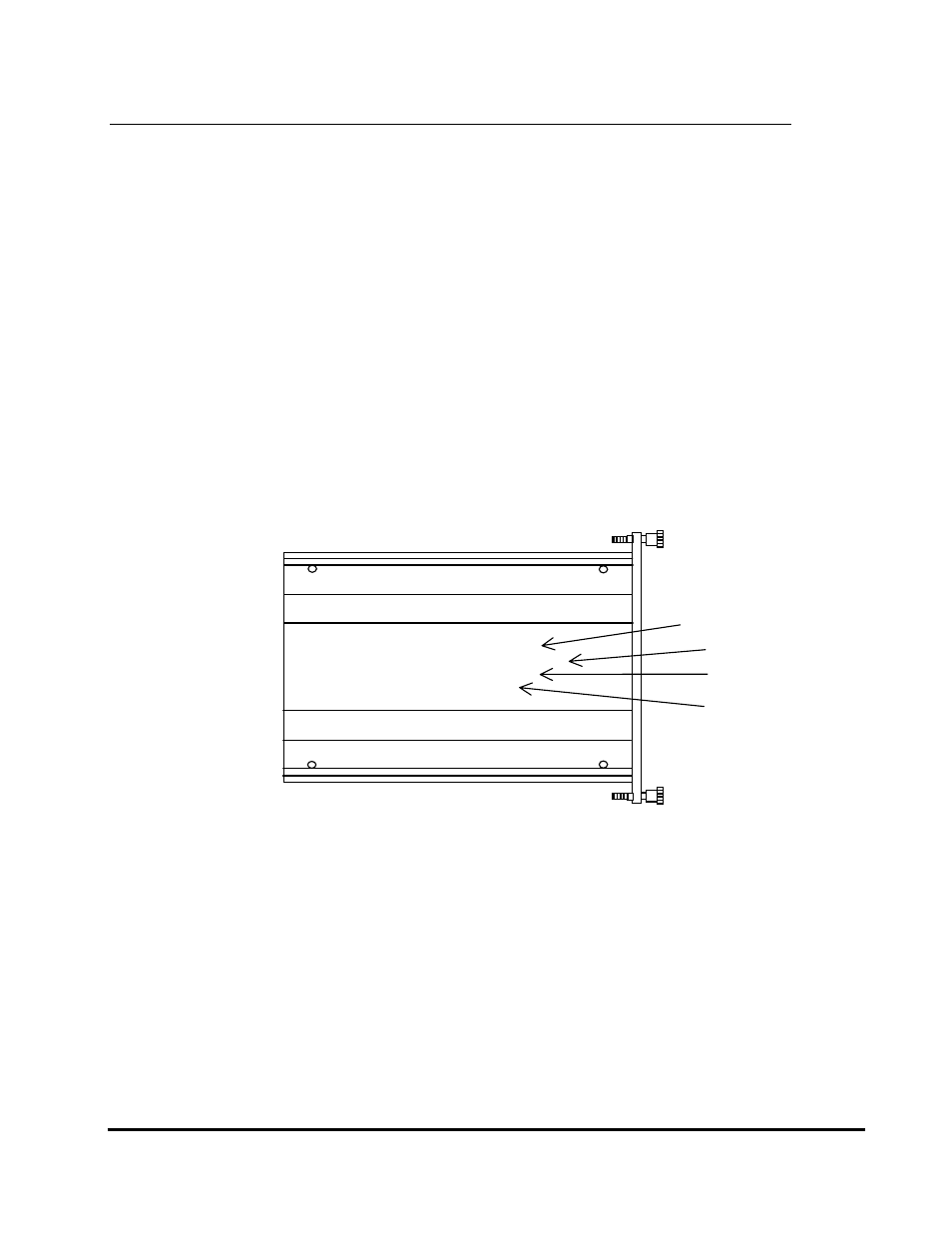

3. All modules (except NEMA configurations) have the following
Identification identification:
Connecting 4 . Your Series 8000 system comes configured to you specifications.
Sensors However, you will need to connect sensors and cables yourself.
Connect sensors to module using the A and B connectors located on the
rear of the chassis. Sensors with model numbers ending in a “1” use
connector “A”; sensors with model numbers ending in “2” or “M” use
both connectors. An exception is the .5U2, which only has one connector
that connects to “A”.
CONFIGURED AS
“MASTER” OR “SLAVE”
P/N 853479-001
S/N XXXXX-XX-XX
SENSOR XXX
XXXXXX SERIAL NUMBER
GENERIC SENSOR
TYPE
PART NUMBER
