What is the KDM-8200?
System

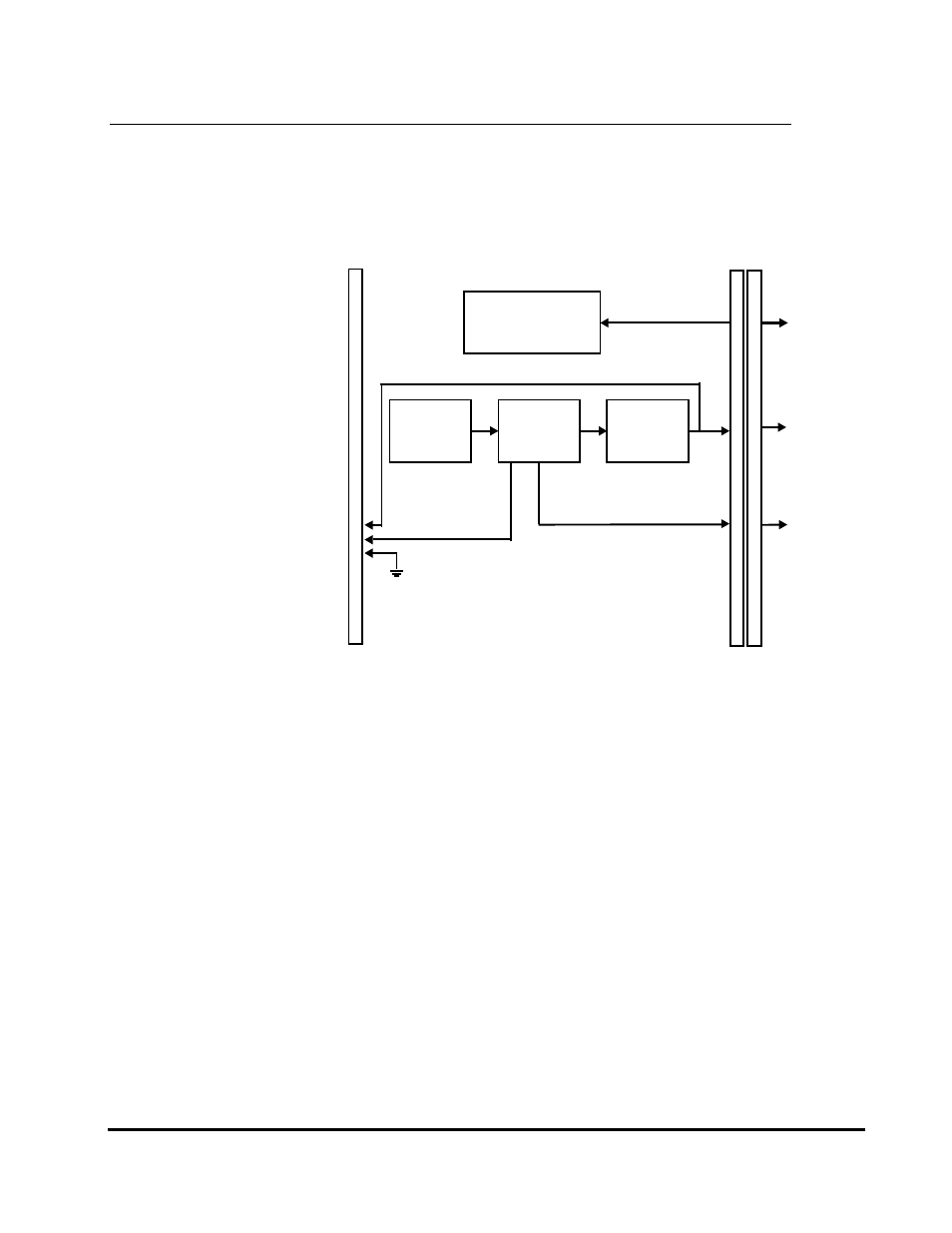

The figure below shows a block diagram of the system configuration.
Configuration Every system contains an electronics oscillator / demodulator and a sensor.
POWER
CONDITIONING
STAGE
OSCILLATOR
STAGE
RF
CONTROL
STAGE
DC
CONTROL
STAGE
CALIBRATION
CONTROLS
POINTS
TEST
SENSOR DRIVE
CONNECTORS
Analog
Output
To Sensor
+/- 15 Vdc
Input Power
FRONT
PANEL
EURO
