Dwyer EDA User Manual
Page 17
15
The following alarm function menu items are activated when CtrL is set to SPAL:
DELA
Alarm Delay
Sets the amount of time an alarm condition must be continuously met before the alarm condition is
recognized. The alarm delay is adjustable from 0 - 60 seconds.
LEdA
Alarm Lamps
OFF
The ALLO LED or ALHI LED on the front panel turns OFF when the alarm relay
turns OFF. The ALLO LED or ALHI LED on the front panel turns ON when the
alarm relay turns ON.
ON
The ALLO LED or ALHI LED on the front panel turns ON when the alarm relay
turns OFF. The ALLO LED or ALHI LED on the front panel turns OFF when the
alarm relay turns ON.
AL
Alarm Type (see Alarm Adjustment below)
HIGH
High alarm only.
LOW
Low alarm only.
HILO
For a high and low guard band type alarm. Share the same relay output.

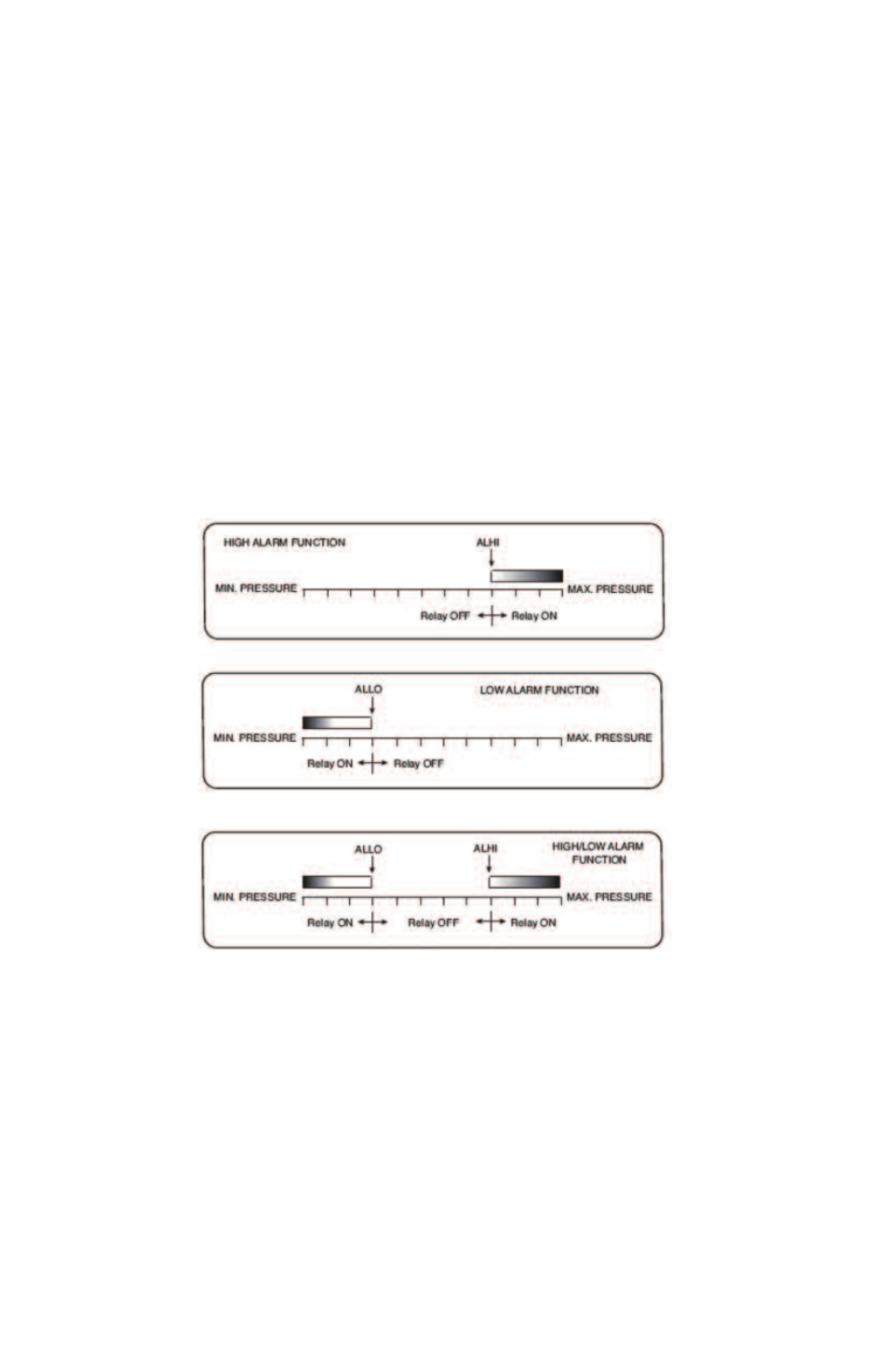

Alarm Adjustment
Alarm settings are dependent upon the selected alarm type. The EDA pressure controller alarm may be configured
as a High Alarm, Low Alarm, or High/Low Alarm. Alarm settings may be set to anywhere within the range of the
instrument. The dead bands of the alarms are fixed at 1% of full scale.
ALrE
Alarm Reset
AUTO
Automatic reset.
HOLD
Manual reset. An alarm is reset by pressing the RST key on the front panel.
ALiH Low Alarm Inhibit
OFF
Alarm inhibit is off.
ON
Alarm inhibit is on.
Note: If ALiH is selected ON, a low alarm condition is suspended upon power up until the process value passes
through the alarm set point once.
