11
MAIN MENUS and SUB MENUS
SECr (Security) MAIN MENU
SECr is the only SUB MENU in the security MENU. When the security
SUB MENU is selected, the present security level is displayed in the
upper right hand display. To change the security level, adjust the
number displayed to the number shown in the following table for the
desired security level.
The password values shown in the table cannot be altered, so retain a copy
of these pages for future reference.

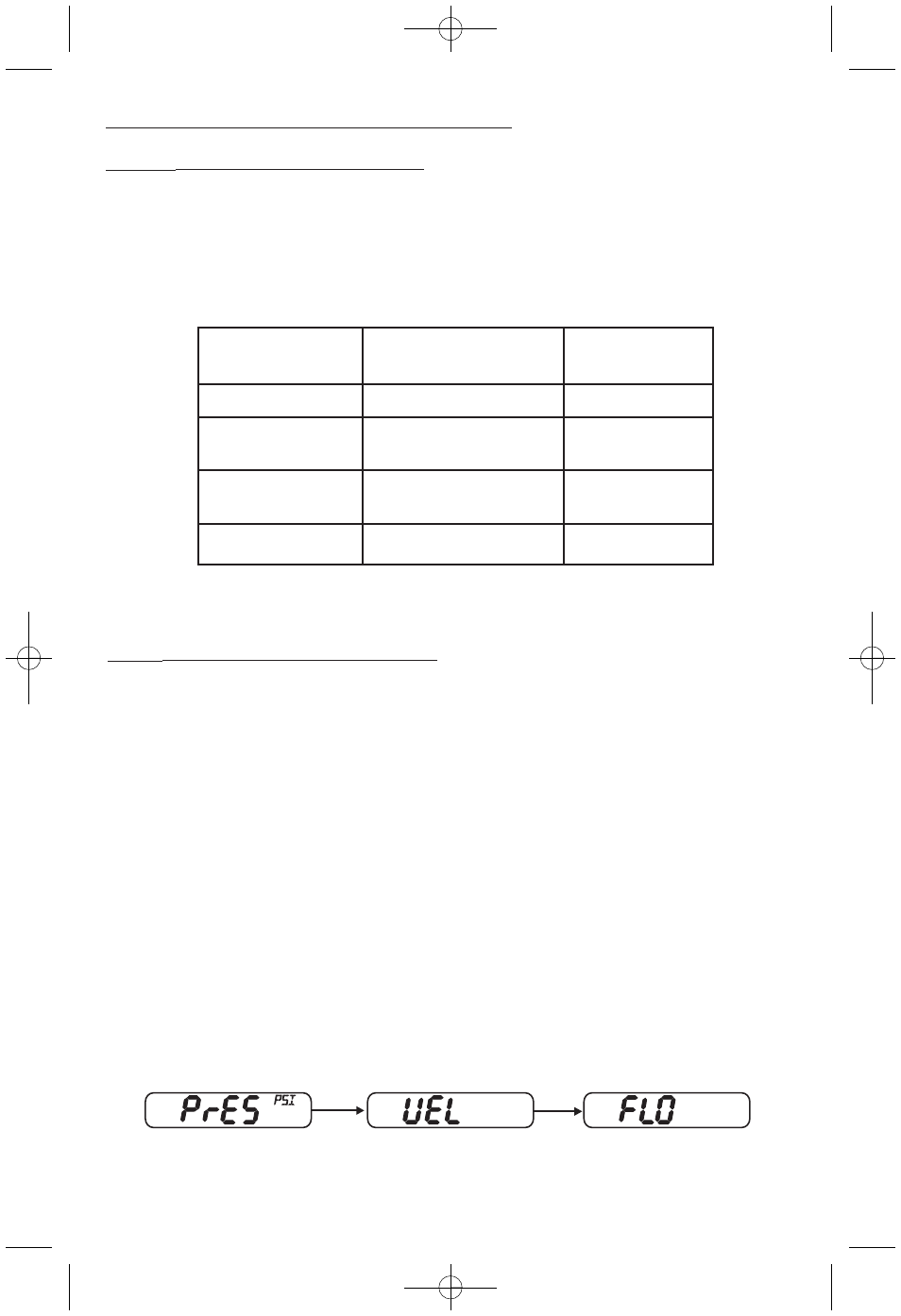

OPEr (Operation) MAIN MENU
The OPEr MENU selects the measurement type of the instrument.
The SUB MENUS are:
PrES - Pressure KFAC - K Factor XDIM - X Dimension
UEL - Velocity ArEA - Area YDIM - Y Dimension
FLO - Flow DIA - Diameter
If the instrument is set for Velocity, the OPEr MENU will have an additional KFAC
SUB MENU. If the instrument is set for Flow, the OPEr MENU will have additional
KFAC and ArEA SUB MENUS. These will be discussed under Velocity and Flow.
When scrolling through the OPEr SUB MENUS, the measurement type the unit is
currently set for will show the units in the upper right display. The other measure-
ment types will have a blank upper right display.
Security Level
Displayed
1
2
3
4
Access
All menus access
Menu Access
SP/AL Locked
SP/AL Access
Menus Locked
All settings locked
Password
Value to Enter
10
70
90
111
Units visible, so unit
is presently set to
measure pressure
is presently set to
measure pressure
Units not visible Units not visible Units not visible Units not visible
