Overview  4
P-Series Screw Pump Operation Manual
Hydraulic Fluid
As standard, the P018 hydraulic screw pumps ship with their reservoir filled with hydraulic fluid.
The pumps may be shipped drained by entering -E in the pump system ordering code.
See
Ordering a Pump System below.

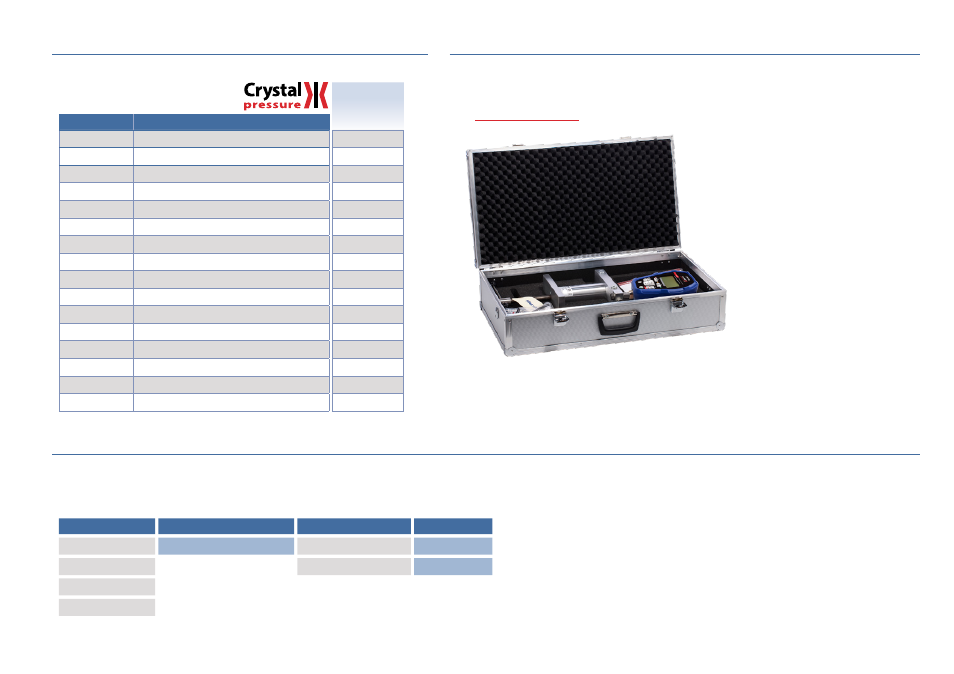

Parts Included with Pump Systems for Crystal Reference Indicators
System D
DOX and DWX
(P-018)* Part Number Description
5253 CPF Male to Screw Pump Adapter „ ( 2 )
5254 1/4" BSP Female to 1/4" BSP Female Fitting „
MPF-1/4FPT CPF Female to 1/4" NPT Female Fitting „
MPF-1/4BSPF CPF Female to 1/4" BSP Female Fitting „
MPF-1/8MPT ** 1/8" MPT Fitting (for 30 Series Calibrator) „ ( 2 )
MPF-CAP CPF Female Cap Fitting „
SPK-HPC-004 1/4" BSP Male to 1/4" BSP Male Banjo Connector „
60R955 1/4" Male BSP Plugs „ ( 4 )
60R120 1/4" Bonded Seals „ ( 5 )
60P013 1/4" BSP Male Fine Adjust „
1351 ** Test Leads; Red & Black, including clips „
5249 Protective Vinyl Cap „ ( 4 )
60I104 Pack Tape (1 roll) „
60R159 Allen Key „
124004 Shoulder Strap „
124301 Aluminum Carrying Case „
* The P-018 does not include the isolation valve.
** The MPF-1/8MPT fittings and 1351 Test Leads are included only with Pump Systems for the 30 Series Calibrator.
Ordering a Pump System
Any P-Series Pump System may be ordered with or without a reference indicator. The table below provides an explanation of the Pump System ordering
scheme when ordering a system without an indicator. For details on ordering the Pump Systems with an indicator, see the indicator datasheet.
Reference Indicator Reference Indicator Included Pump System Liquid
nVision . . . . NV No . . . -NONE System D (P-018) . . . -DOX Full . . . . . . . (omit)
30 Series . . . IS30 System D (P-018) . . . -DWX Drained . . . -E
XP2i . . . . . . . XP2i
m1 . . . . . . . . . M1
X SAMPLE PART NUMBERS
NV-NONE-DOX . . . . . . . . . . System D pump system (for nVision) filled with oil.
IS30-NONE-DWX-E . . . . System D pump system (for 30 Series) for use with water and drained of fluid.
5KPSIXP2i-DWX-E . . . . System D pump system for use with water with a 0-5000 psi XP2i included.
