Page 2
Product range
Code
Connection
Flow rate range (l/min)
132402
1/2”
0
2–7
00
132512
3/4”
0
5–13
0
132522
3/4”
0
7–28
0
132602
1”
10–40
0
132702
1 1/4”
20–70
0
132802
1 1/2”
30–120
132902
2”
50–200
Valve
Material: - Body:
brass EN 12165 CW617N
- Ball:
brass EN 12164 CW614N
- Ball control stem:
brass EN 12164 CW614N, chrome plated
- Ball seat:
PTFE
- Control stem guide:
PSU
- Seal:
EPDM
Flow meter
Material: - Body:
brass EN 12165 CW617N
- Headwork:
brass EN 12164 CW614N
- Stem:
brass EN 12164 CW614N, chrome plated
- Springs:
stainless steel
- Seal:
EPDM
- Flow meter float:
PSU
- Indicator cover:
PSU
Medium:
water, glycol solutions
Max. percentage of glycol:
50%
Max. working pressure:
10 bar
Working temperature range:
-10–110°C
Flow rate adjustment range unit of measurement:
l/min
Control stem angle of rotation:
90°
Accuracy:
±10%
Operating key:
1/2”–1 1/4” exagon 9 mm
1 1/2” and 2” exagon 12 mm
Threaded connections:
1/2”–2” F
Insulation
Material:
Closed-cell expanded PE-X
Thickness:
10 mm
Density:
- inner part:
30 kg/m
3
- outer part:
50 kg/m
3
Thermal conductivity (DIN 52612):
- at 0°C
0,038 W/(m·K)
- at 40°C
0,045 W/(m·K)
Coefficient of resistance to the diffusion of vapour (DIN 52615):
> 1.300
Temperature range:
0–100°C
Reaction to fire (DIN 4102):
Class B2
Technical
specifications
2

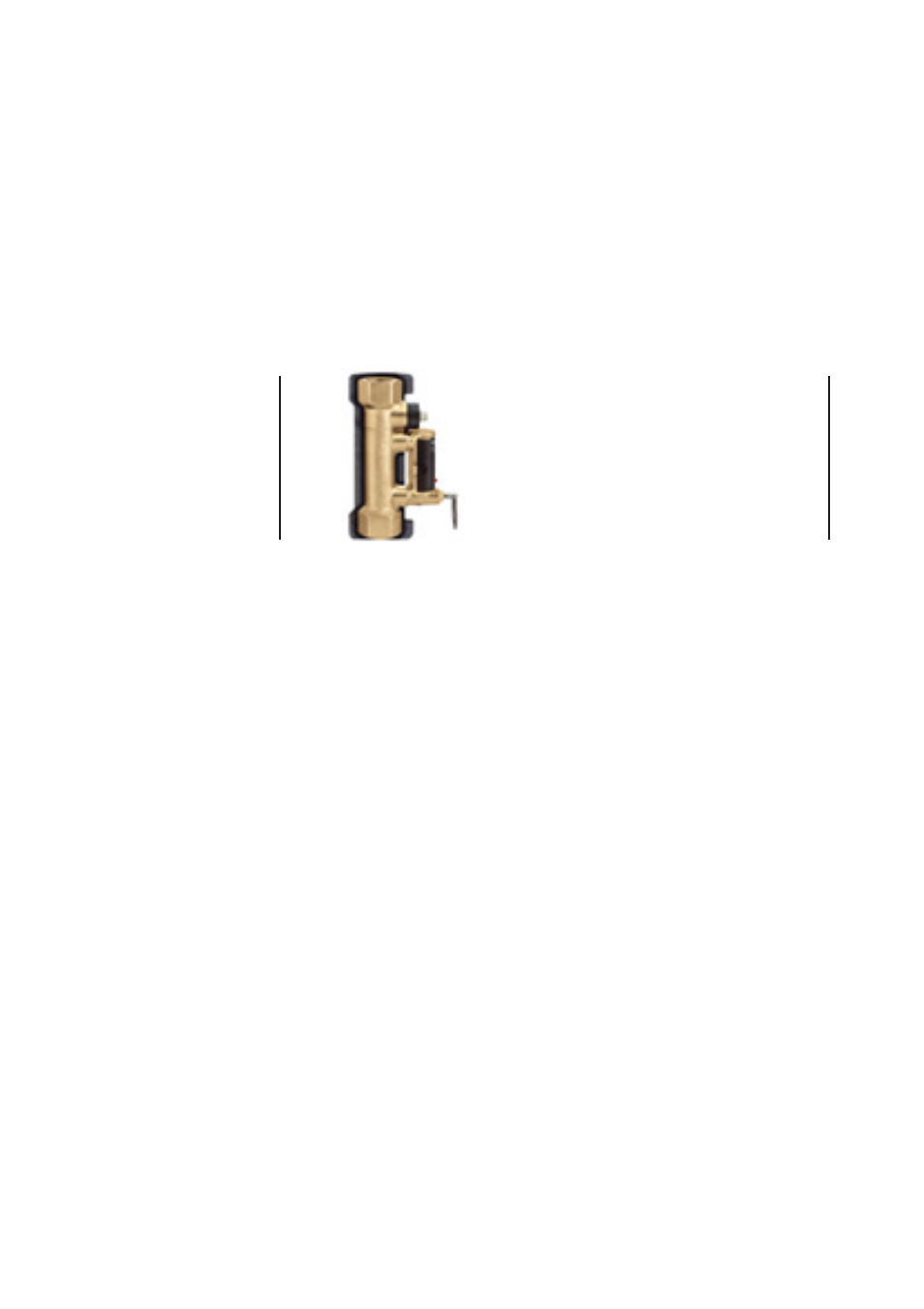

As válvulas de balanceamento são dispositivos hidráulicos que permitem
regular com precisão o caudal do fluído termovector que alimenta os
terminais de uma instalação.
Um caudalímetro, montado em by-pass no corpo da válvula e que poderá
ser excluído durante o funcionamento normal, permite controlar o caudal
sem o auxílio de manómetros diferenciais e de gráficos de regulação.
Pedido de patente nº MI2007A000703.
Strangregelventielen zijn hydraulische toestellen waarmee het debiet van
het warmtedragend medium naar de eindgroepen van een installatie,
nauwkeurig kan worden ingeregeld.
Met de debietmeter, die in de bypass op het ventiellichaam is
geïntegreerd, en die tijdens de normale werking van de installatie kan
worden uitgeschakeld, kan men het debiet controleren zonder hulp van
differentiaalmanometers en kalibratiegrafieken.
Patent registratie n. MI2007A000703.
