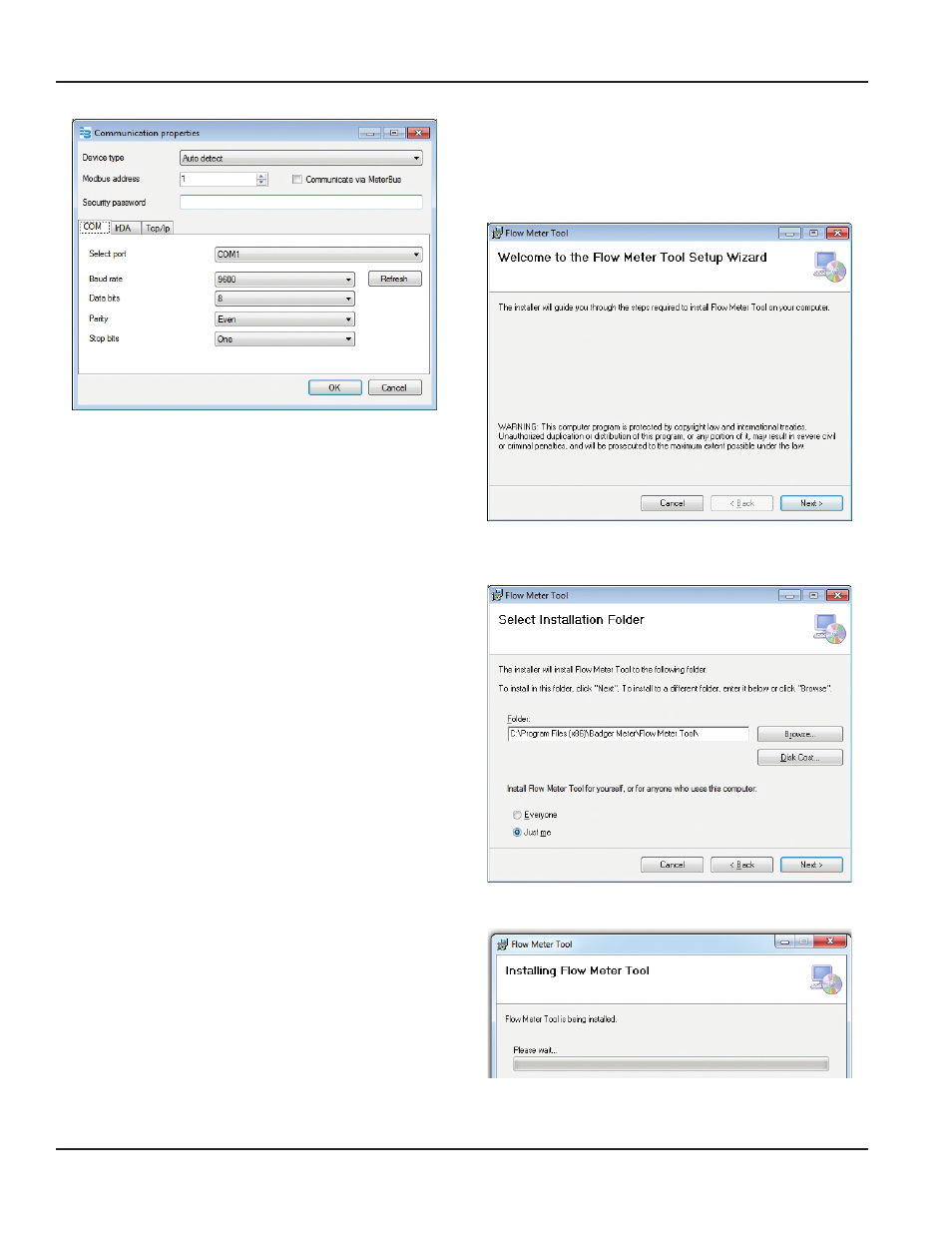

b. Change the following parameters as necessary to
align with the meter settings:
• MODBUS ADDRESS (Node Address)
• BAUD RATE (9600)
• DATA BITS (default is 8)
• PARITY
• STOP BITS (default is 1)
c. Select OK to confirm the configuration of the
communication port. Make sure you select the
correct COM port.
OTEE: N The M1000 communicates via the COM port. TCP/IP is
not supported.
5. To extract the event files:
a. Select Download Flowmeter Data.
b. Select the Totalizer and Error Log tab.
c. Select Download.
d. Optional: Select Save as Excel file… for each event
file to save the history of events.
e. Select the Startup Log tab.
f. Select Download.
g. Optional: Select Save as Excel file… for each event
file to save the history of events.
h. Select the Configuration Event Log tab.
i. Select Download.
j. Optional: Select Save as Excel file… for each event
file to save the history of events.
k. Select Cancel to exit this application window.
INSTALLING THE FLOW METER TOOL
1. Insert the CD containing the Flow Meter files.
The autorun tool displays the Welcome screen.
2. Click Next to confirm that you want to install the tool.
3. On the Select Installation Folder screen, select the folder where
you would like the tool installed. Click Next.
4. Wait while the tool installs.
5. When the installation is complete, click Close.
