ELECTRICAL CONNECTIONS
Output Signal
The output signal is a square wave signal where the frequency is proportional to the flow rate. An external, user-supplied
pull-up resistor is required to ensure that the open collector will sink less than 20 mA. Applying a current greater than 20 mA
may damage the sensor.

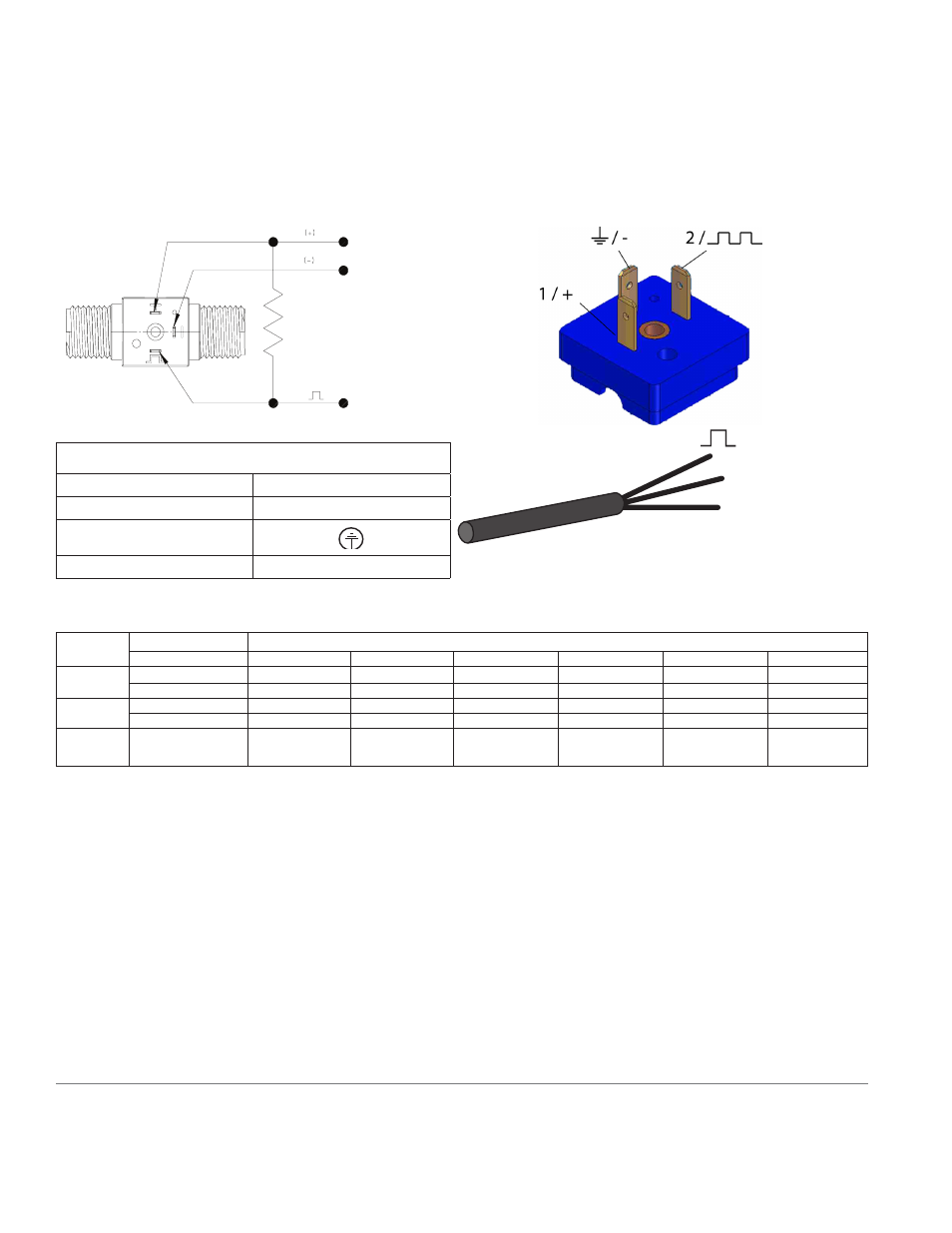

Wiring Diagram
1.2. . .2.2K Ohms
Customer Supplied
5. . .24 V DC
0 V DC
OUTPUT
With DIN Connector
Cable Connection
Bro
wn Black
Red
5. . .24V DC
0V DC
Function DIN Termination
V+ 1
–
Output 2
SPECIFICATIONS
Model
BV1000 BV2000
025 050 075 100 150 250 350
Flow
Range
0.026…0.65 gpm 0.13…1.3 gpm 0.13…2.0 gpm 0.26…2.7 gpm 0.26…4.0 gpm 0.26…6.6 gpm 0.53…9.2 gpm
0.1…2.5 lpm 0.5…5 lpm 0.5…7.5 lpm 1…10 lpm 1…15 lpm 1…25 lpm 2…35 lpm
K-Factor
70,000 ppg 26100 ppg 17800 ppg 12500 ppg 8300 ppg 3785 ppg 2840 ppg
18,500 ppl 6900 ppl 4700 ppl 3300 ppl 2200 ppl 1000 ppl 750 ppl
Frequency
Output
30…770 Hz 58…575 Hz 38…575 Hz 55…550 Hz 37…550 Hz 17…416 Hz 25…437 Hz
OPERATION GUIDELINES
• Do not exceed the specific indications.
• The Vision Series meter is a volumetric measuring device. Any air/gas in the liquid will be included in
measured volume.
• Correctly installed, the sensor is maintenance free.
• Do not blow out the turbine flow meter with compressed air. This may damage the bearings.
