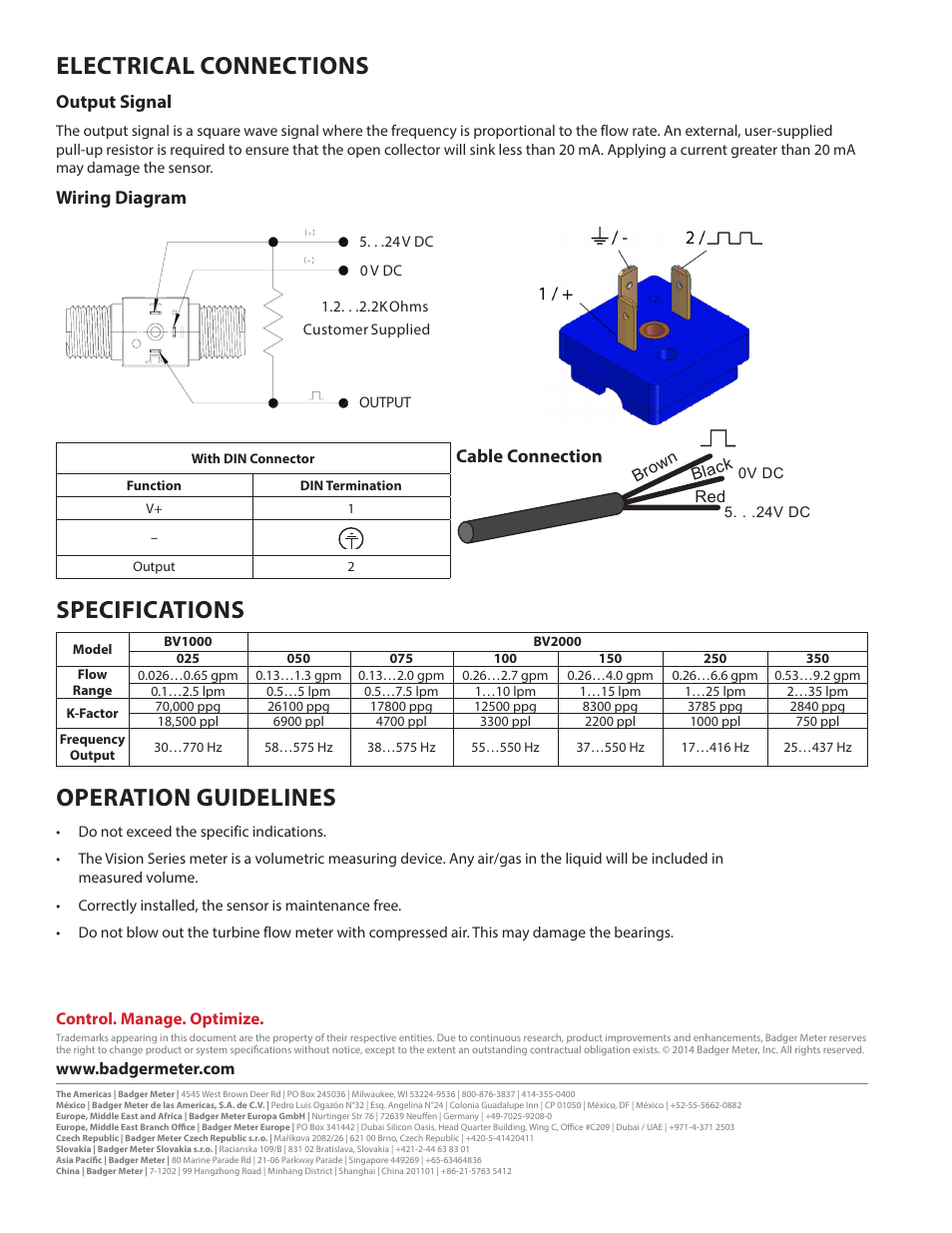

Electrical connections, Specifications, Operation guidelines – Badger Meter Vision User Manual
Page 2: Output signal, Wiring diagram, Cable connection
