Commisioning:
Before the Badger
®
Series 340LW can be used on the LonWorks network, a network tool must commission it.
The 340 LW has a red “Wink” LED and a green “Service” LED.
The green “Service” LED has is used to report the commission status.
If commissioned, on power-up the green LED turn ON for a few seconds, and then turn off.
If not commissioned the green LED will flash at about a ½ Hz rate.
If the LED turns ON, then OFF, and then ON steady, contact the factory.
Special notes for operation
1. comm
status
=0 - booted up, no comm with internal uart
=1 - connected to internal uart
=2 - L
ON
W
ORKS
®
mode
=3 - commode
2. units that must be set by the 340 PC software for this software revisions to work properly
gpm
gallons
kbtu/hr
btu
3. all configuration properties (CPs) are set to ten second updates for each outgoing measurement network variable,
can be modified via LonMaker browser
4. internal measurement readings are updated every ten seconds (this update rate is not changeable)
5. to reset total, send the following to nvi00Request in the LonMaker browser
“1,RQ_OVERRIDE”
“2,RQ_OVERRIDE”
either of the above will reset both flow total and energy total

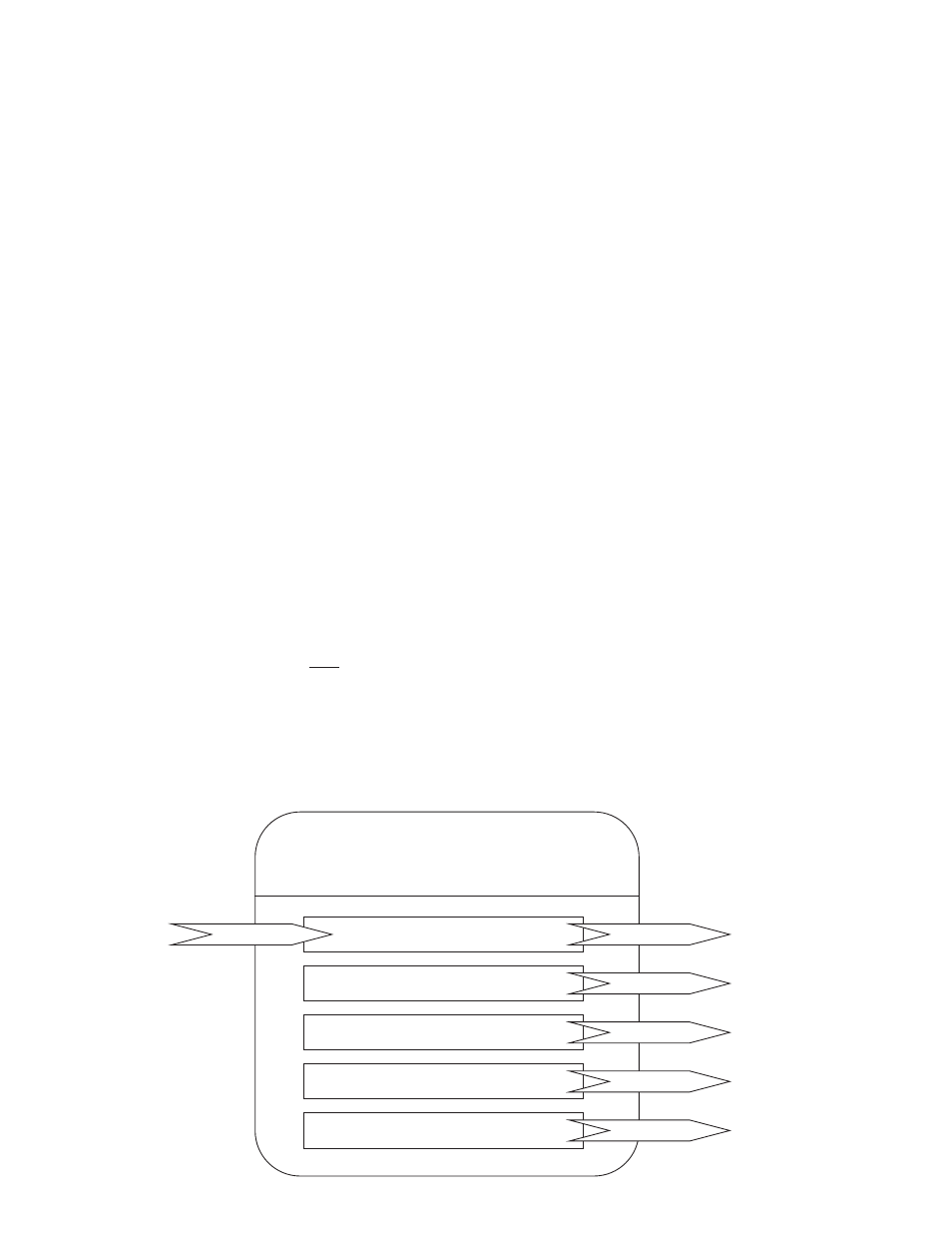

Object #0 - Node Object
Object #1 - Flow Object
Object #2 - Energy Object
Object #3 - Temperature Object
Object #4 - Comm Status
Outputs
Outputs
Outputs
Outputs
Outputs
Inputs
Series 340 LonWorks
LonMark Implementation
Series 340 LonWorks
Interface Overview
