Rotary Meters with AMR Adapter (using the ORION integral endpoint for American® residential meters)

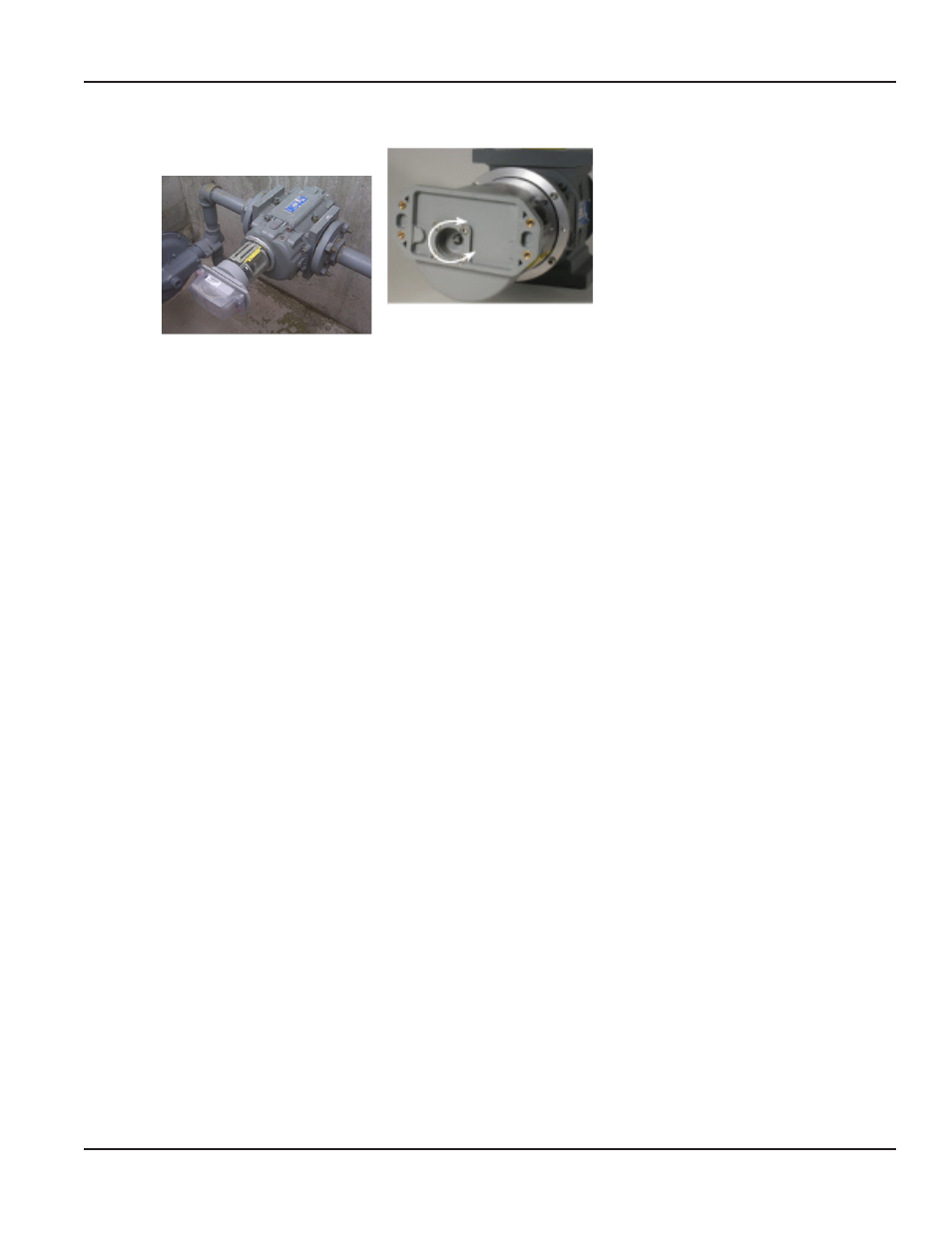

Roots meter with AMR Adapter with
ORION Integral endpoint
Roots meter AMR Adapter with
ORION endpoint removed and drive
shaft visible – direction of rotation
is dependent on the specific meter
configuration
Both Dresser-Roots® and Elster American rotary meters are available with AMR Adapters that allow the use of the ORION
Integral endpoint for American residential meters The drive shaft direction of rotation is dependent on how the meter is
configured so observation of each meter is required to confirm the direction of rotation
