ORION® Gas Endpoints, Integral Endpoint for American® Commercial Gas Meters
5 Use four (4) 18-18 X 3-1/2 supplied mounting screws and a washer on each to attach the index, cover plate, and ORION
integral endpoint to the gas meter
Washer

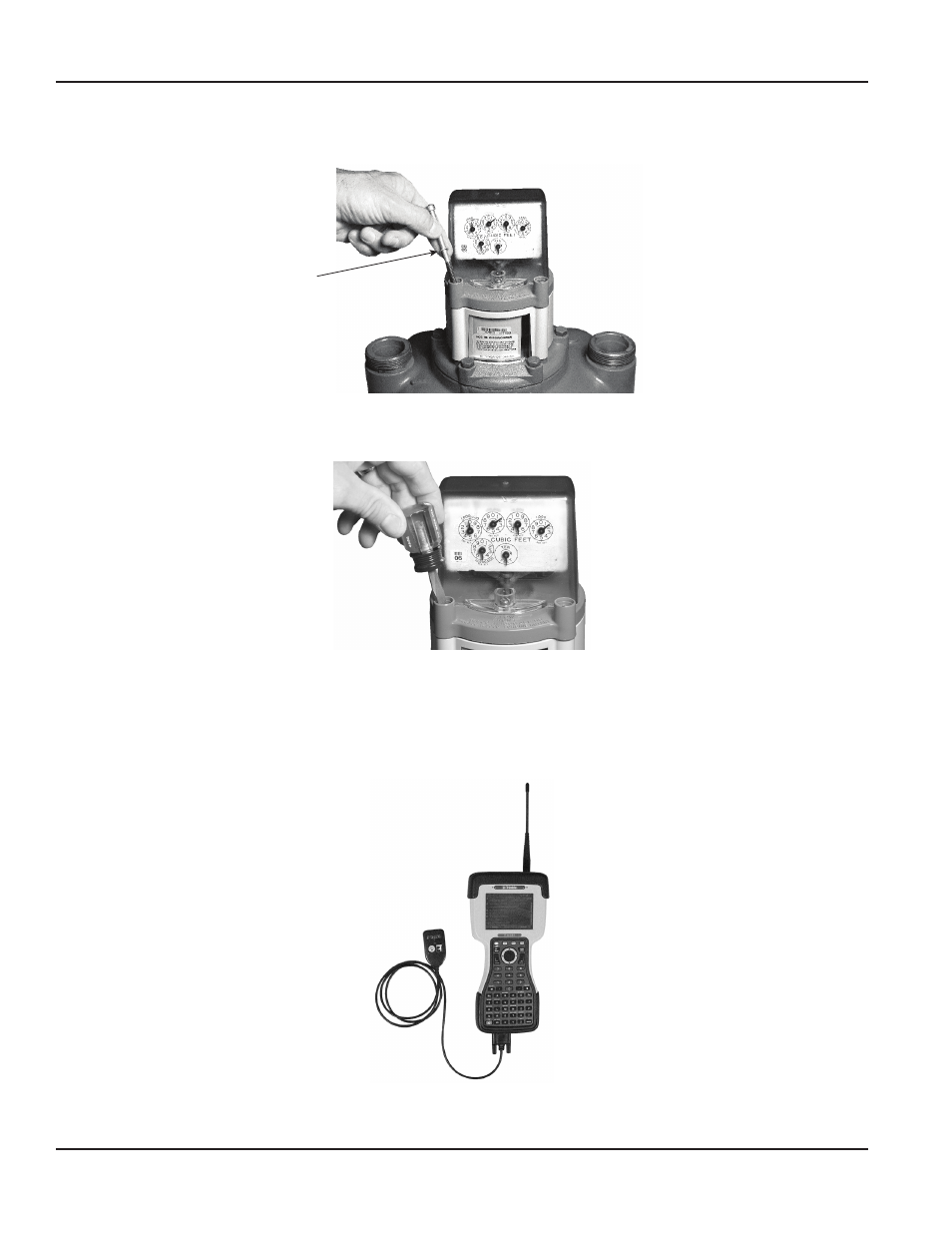

Figure 31: Attach index and cover plate to endpoint
6 Tighten all screws evenly with a large screwdriver to approximately 70 inch-lbs
Figure 32: Tighten screws
PROGRAM THE ORION INTEGRAL ENDPOINT
Badger Meter uses a handheld programmer/data collector system to process and display screens
Figure 33: Trimble Ranger and IR read head and cable
Please reference the Programming Guide for ORION gas endpoints and the manual for the handheld system
Page 18 July 2014
