ORION® Gas Endpoints, Integral Endpoint for American® Commercial Gas Meters
ORION INTEGRAL ENDPOINT KIT FOR AMERICAN COMMERCIAL DIAPHRAGM
AND TURBINE METER WITH PLASTIC SECURITY SEALS
ORION integral
endpoint
4 washers
4 screws
6 small
tamper plugs

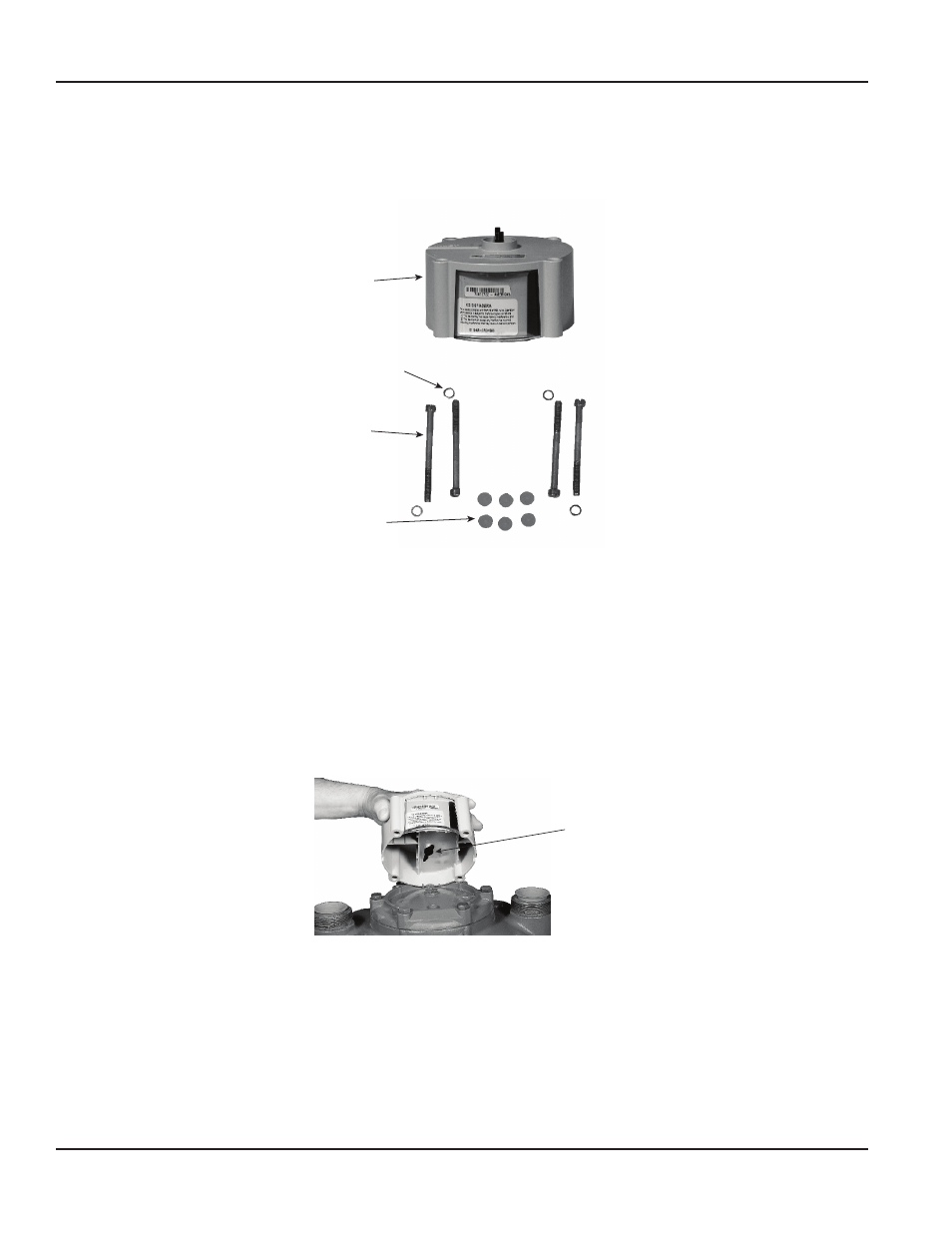

Figure 26: Inetgral endpoint kit
INSTALL THE ORION INTEGRAL ENDPOINT AND AMERICAN COVER PLATE
Use care when handling the ORION integral endpoint to insure the drive pawl is not subjected to any physical abuse Abuse
may cause this spindle to become bent, misaligned or otherwise inoperative
When attaching an ORION integral endpoint to a gas meter make sure it mounts securely to the meter
1 Place the ORION integral endpoint on top of the gas meter where the index and index cover plate were previously
removed Place the endpoint drive pawl spindle so it is perpendicular to the meter drive pawl
Drive pawl
spindle
Figure 27: Endpoint placement on gas meter
