5 Use four (4) 18-18 X 3-1/2 supplied mounting screws to attach the index, cover plate and ORION integral endpoint to
the gas meter Place two screws, with a washer on each, into two corners of the cover mounting plate
Washer

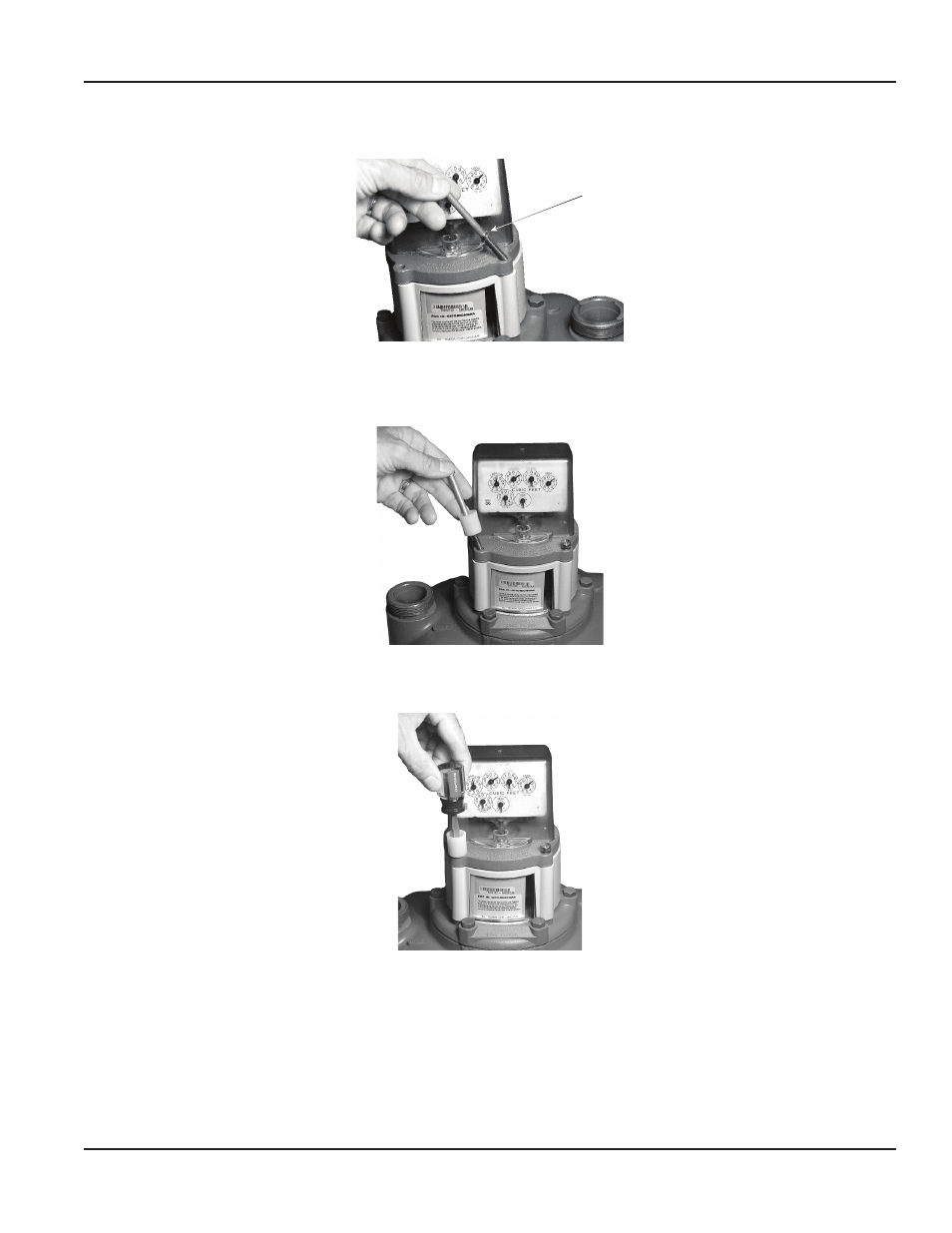

Figure 13: Placement of screws with washer
6 Place two of the screws, without washers, through the white seal caps Place them in the other two corners of the
cover mounting plate
Figure 14: Placement of screw with white seal cap
7 Tighten all screws evenly with a large screwdriver to approximately 70 inch-lbs
Figure 15: Tighten screws
