Installation Manual
ASSEMBLE THE ORION ENDPOINT AND GAS METER INDEX
Endpoint and Lens Gasket Attachment
These gaskets should be attached to the endpoint at the factory If the gaskets are not attached:
1 Place the endpoint gasket on the back of the endpoint See
and
a Place the thin part of the gasket at the top of the endpoint and the tines through the small holes in the endpoint
Thin part of gasket
Gasket tines into holes

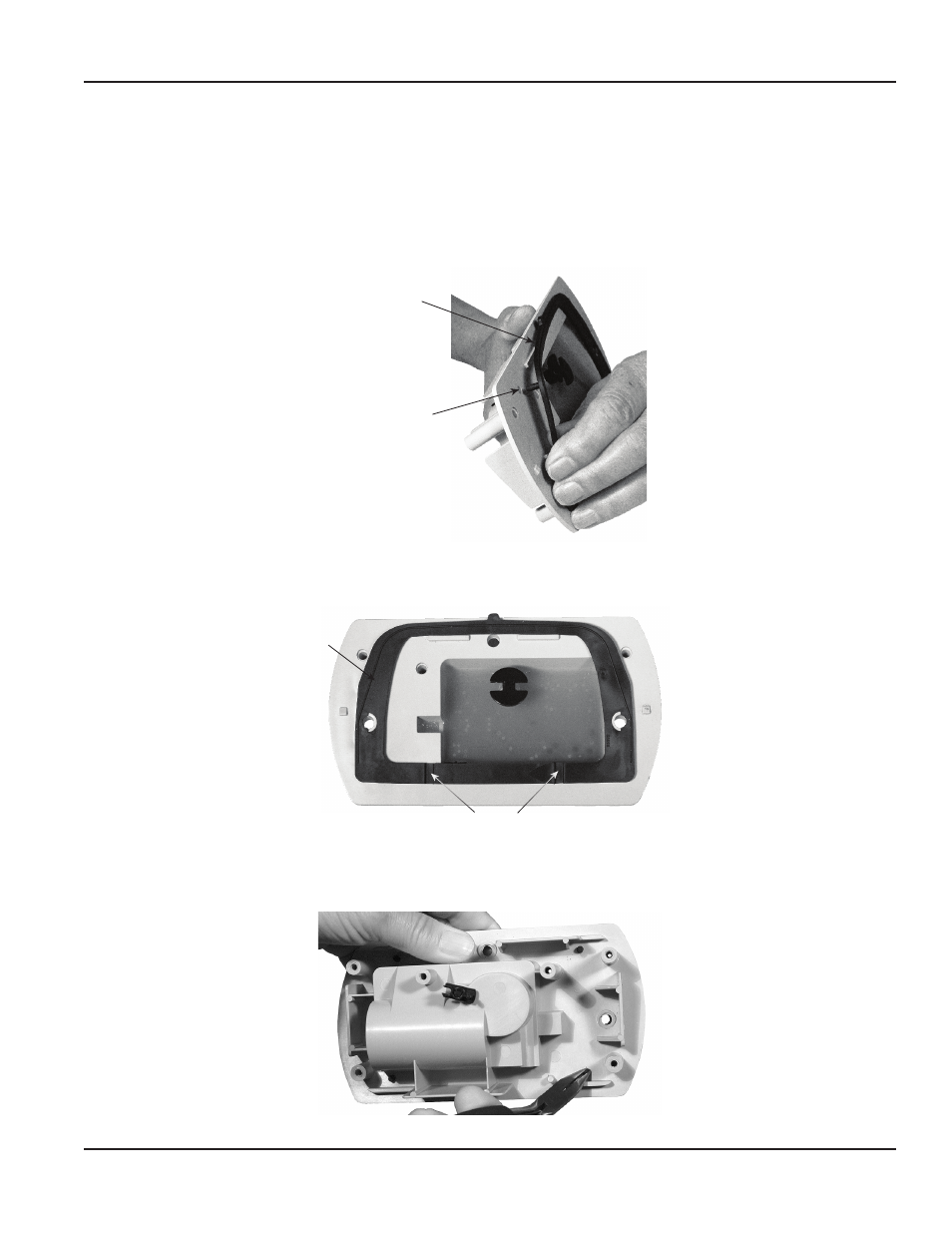

Figure 7: Placement of gasket
b Place the drain slots and rib facing outward
Rib
Drain slots
Figure 8: Drain slots and rib facing outward
2 Place the protruding four tines in the four small holes in the endpoint Pull the tines snuggly through the holes with a
needle nose pliers See
Figure 9: Pull tines through holes
Page 9
July 2014
