Installation Manual

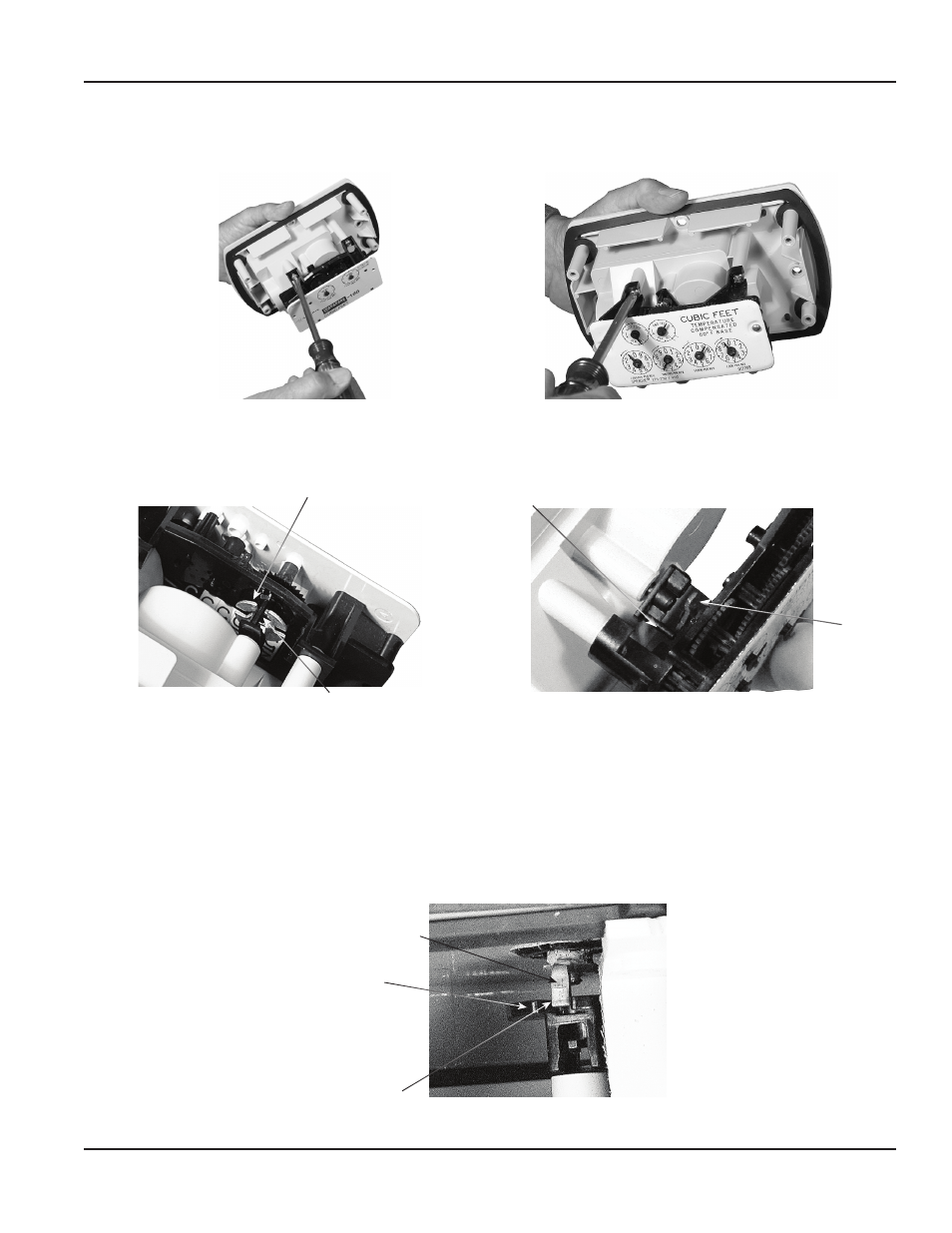

Place Index on Endpoint
Place an index on the endpoint screws and tighten the screws (15 inch-pounds maximum)
Figure 13: Place index on endpoint screws
Verify that the endpoint pawl and the index odometer or dial pawls mate properly See Figure 14
Odometer pawl
Endpoint Pawl
Dial pawl
Endpoint pawl
Figure 14: Verify endpoint pawls and index pawls mate properly
ENDPOINT AND INDEX ON METER
Place the endpoint and index on the meter
1 Place the endpoint pawl around the gas meter pawl Place the endpoint pawl so that its notch goes around the gas meter
pawl See Figure 15
Gas meter pawl
Endpoint pawl
Endpoint notch
Figure 15: Endpoint pawl placement
Page 11 July 2014
