Installation Manual
PROGRAM THE ENDPOINT
Badger Meter uses a handheld programmer/data collector system to process and display screens

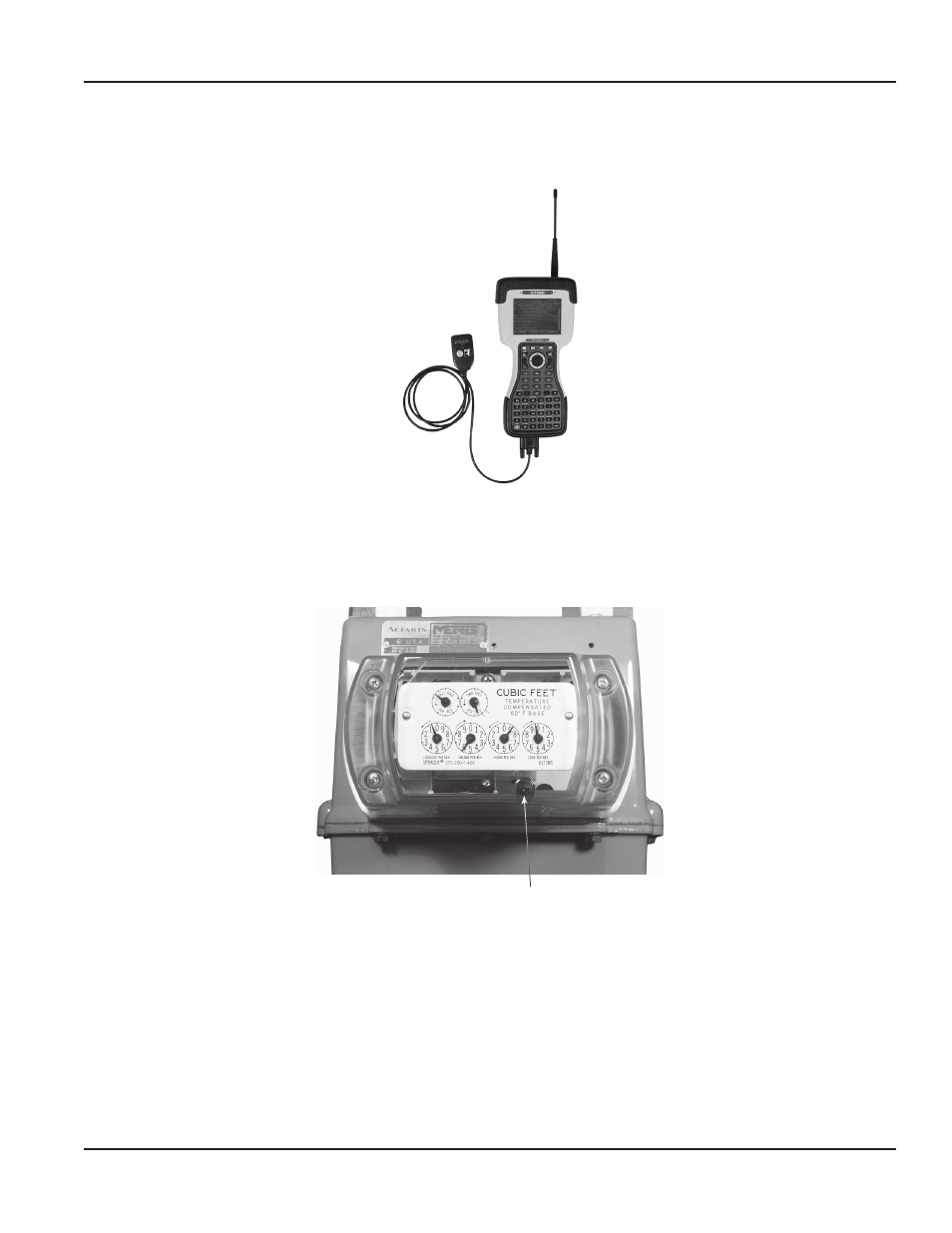

Figure 20: Sample handheld, IR read head and cable
Please reference the Programming Guide for ORION gas endpoints and the manual for the handheld system
Programming Procedure
To program the endpoint, position the handheld optic read head with the endpoint IR port
Endpoint IR port
Figure 21: Completed meter and endpoint
Page 13 July 2014
