ORION® Gas Endpoints, Integral Endpoint for Itron®/Actaris® Residential Slope-Face Gas Meters

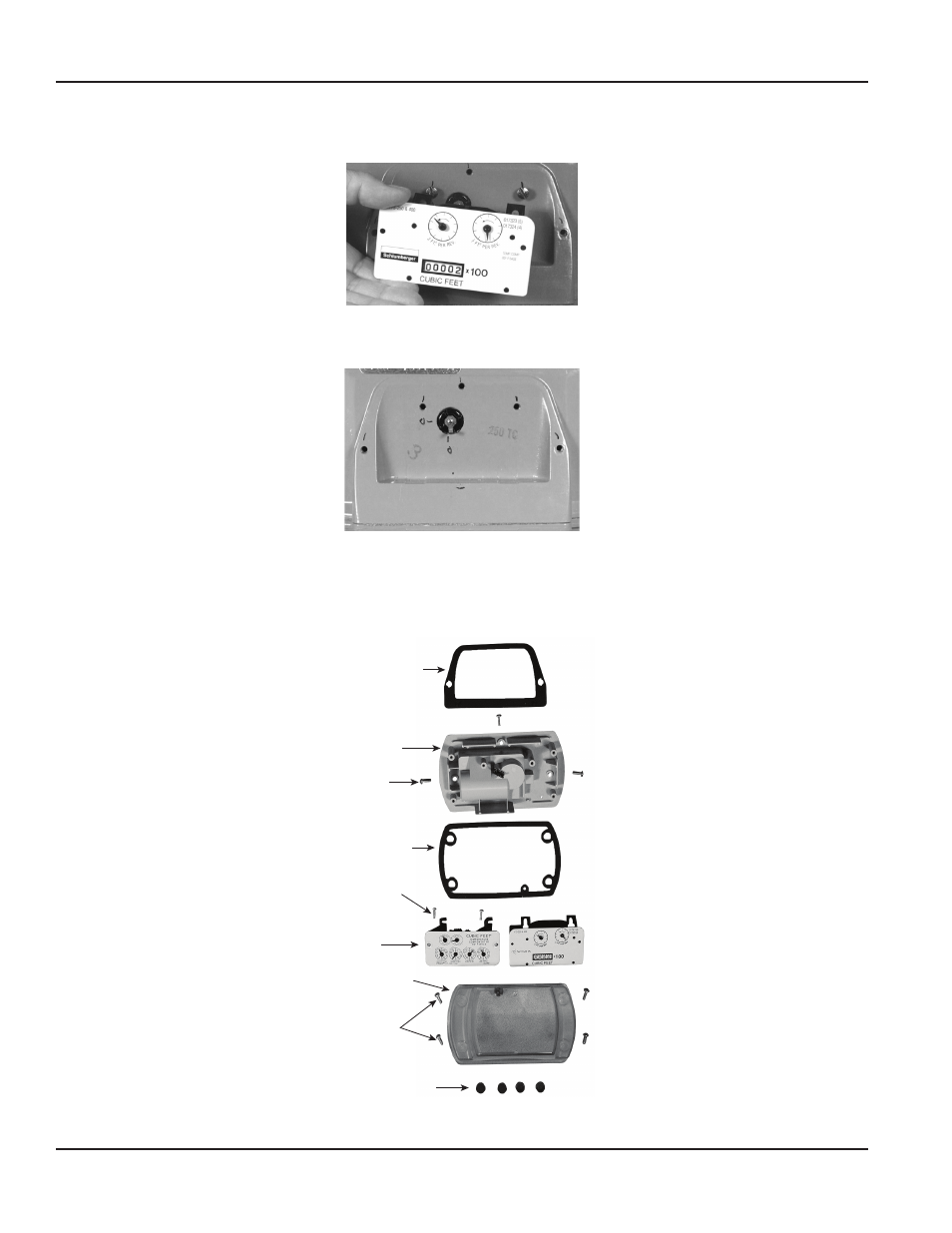

4 Use a small screwdriver to loosen the two (2) index screws Lift or slide the index to remove it
Figure 4: Remove index
5 Remove and discard the two (2) index mounting screws
Figure 5: Remove index mounting screws
ORION ENDPOINT MATERIALS FOR ITRON/ACTARIS SLOPE-FACE GAS METER
Endpoint gasket
Endpoint
3 screws
10-24 X 1/2”
Lens gasket
2 screws
#8 X 1/2”
Index
(not part of kit)
Cover
4 screws
#8 X 1/2”
4 tamper plugs
Figure 6: Parts
