Reinstalling the turbo meter head assembly, Placing the meter back in service, Reinstalling the turbo meter head assembly 16 – Badger Meter Water Conditioning User Manual

Page 16: Placing the meter back in service 16, Figure 6, Ear (see

ROTOR

WORM

BEARINGS (2)

NOSE CONE

ASSEMBLY

(2)

BEARING

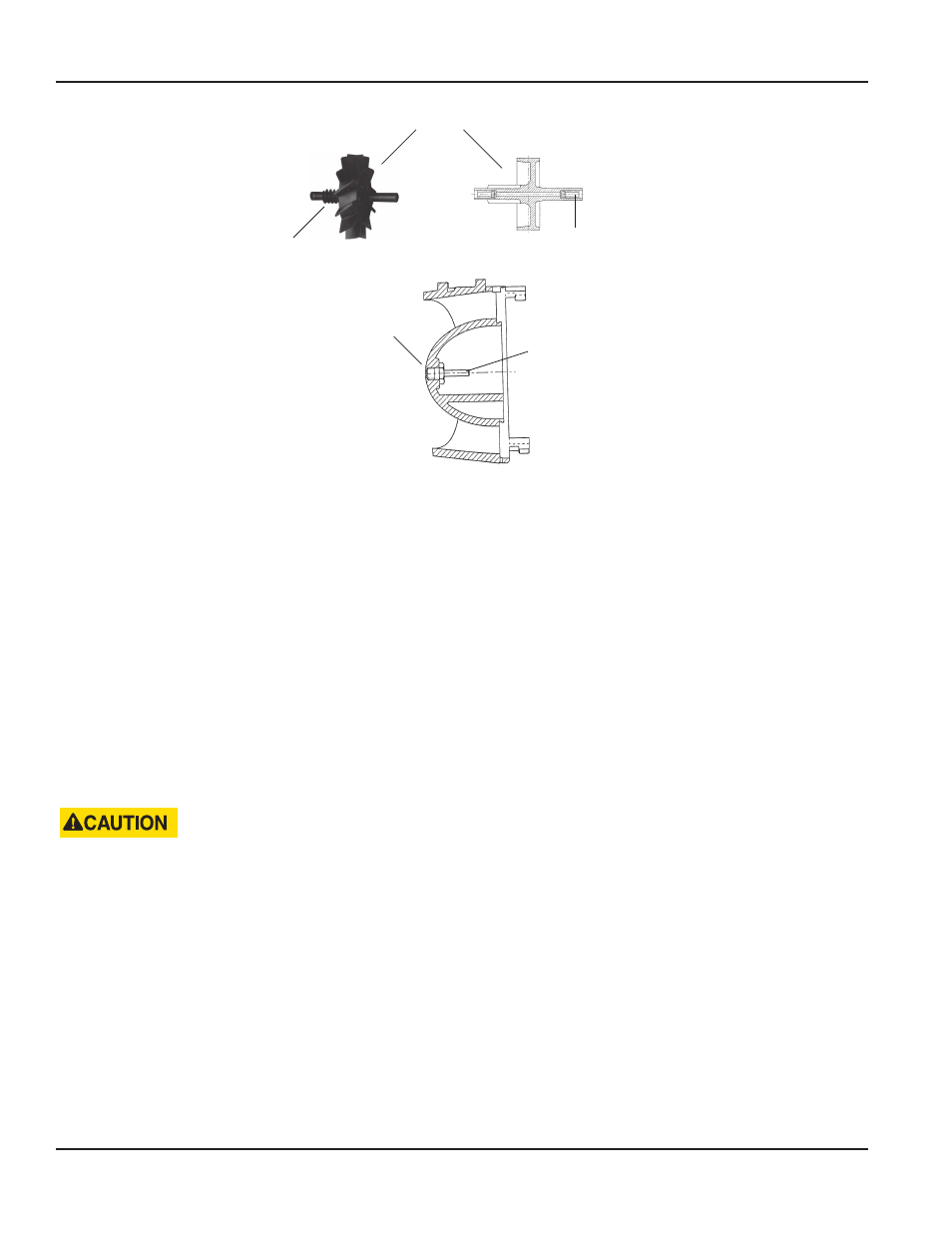

Figure 6: Rotor and nose cone assembly (1-1/2", 2", 3", 4" and 6" turbo head assemblies)

NOTE:

Only highly-polished bearing pin ends provide a minimum of friction and optimal meter performance Bearing

pins are an integral part of the straightening vane and nose cone assembly Wear or damage would require the

replacement of this component

Reassembling the Rotor and Bearings

1 Install the rear nose cone to the cage See

"Removing the Magnet Carrier" on page 13

2 Place the rotor assembly with the worm gear side leading through the cage
3 Place the rotor assembly on the rear rotor bearing pin, while tipping the assembly back so that the opening is up See

“Removing the Calibration Mechanism” on page 14

for instructions on assembling the calibration rings with the nose

cone assembly

4 Insert the front nose cone assembly partially onto the cage insert, engaging the bearing pin with the front bearing of

the rotor

5 Tilt the measuring element insert assembly forth and back to verify that the rotor now engages the bearing pins on the

straightening vane/nose cones and is free to rotate and slide

DO NOT FORCE THE NOSE CONE ASSEMBLY INTO THE CAGE INSERT. BE SURE THAT THE ROTOR ENGAGES BOTH THE

FRONT AND REAR ROTOR BEARING PINS PRIOR TO PRESSING THE NOSE CONE ASSEMBLY FULLY INTO THE CAGE

INSERT.

6 Press the nose cone assembly fully into the cage insert and turn it counter-clockwise, catching the calibration linkage

in the slot

7 Verify that the rotor spins freely If it does not, remove the nose cone assembly and repeat the procedure
8 Install and tighten the nose cone assembly setscrew
9 Holding the cover plate in one hand, align the thermoplastic cage bayonet-like tabs with the slots in the cover plate

(1-1/2" to 4" only)

10 Rotate the element clockwise until the cage setscrew hole is aligned Install and tighten the cage setscrews (quantity of

1-1/2" to 4" meters, a quantity 4 for the 6" meter)

Recordall® Turbo Series Meters

Page 16

April 2014
