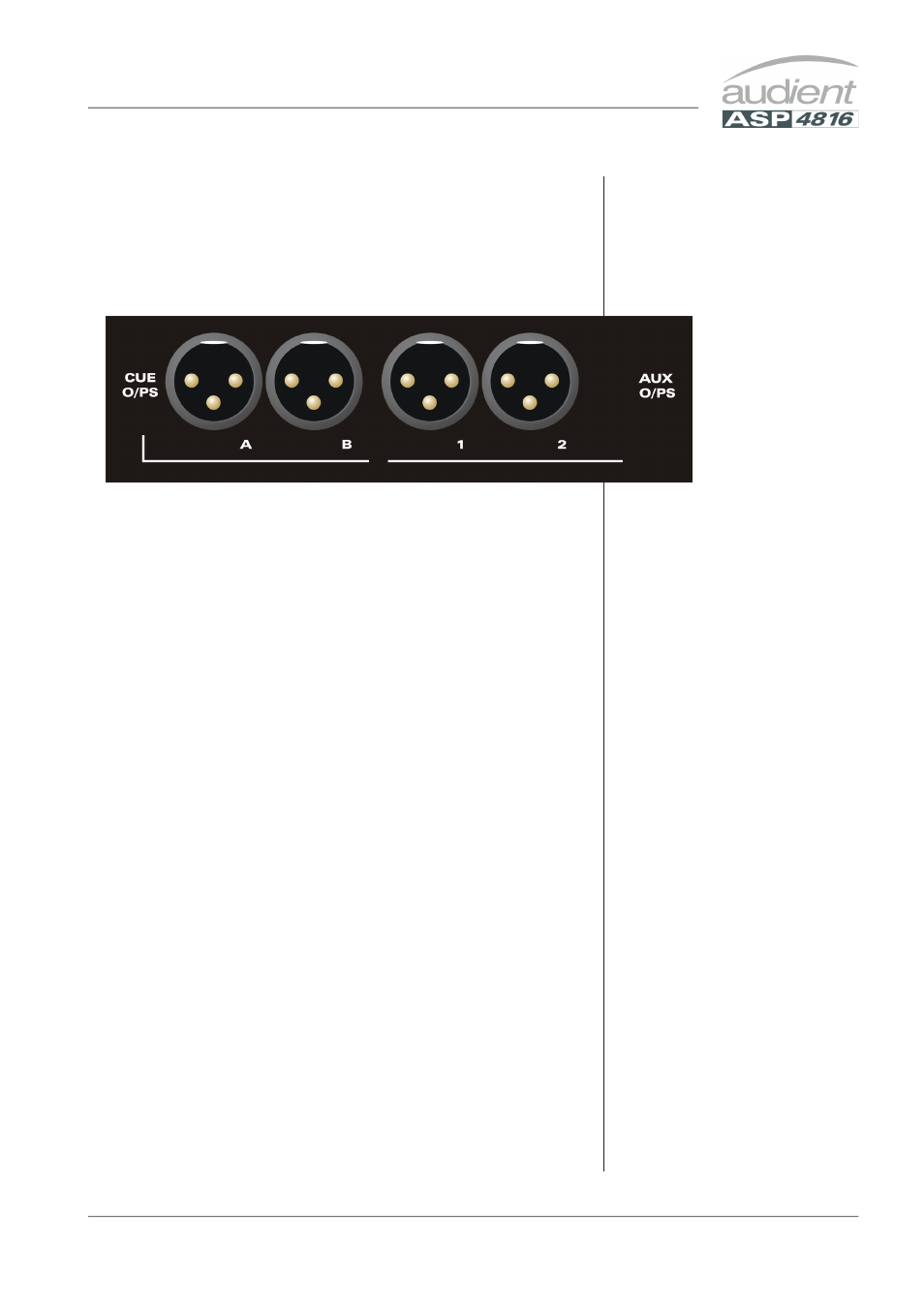

AUX CONNECTORS
Not all of the ouputs are shown
for clarity.
The auxiliary outputs are typically
used to send to effect units such as
reverberation units. They are line
level fully balanced outputs. 1 CUE A and CUE B outputs.
These auxiliaries are normally
used as feeds to the foldback
system by selecting them
on the control surface of the
console. They can also be used
as additional effects sends.
2 AUXILIARY 1 and 2 outputs.
The remaining auxiliary
outputs are identical.
